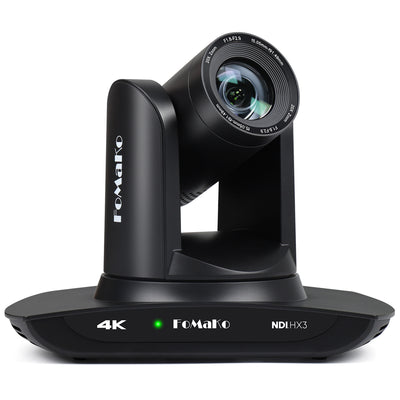

FoMaKo K20UH 4K HDMI PTZ Camera with AI Auto-Tracking(Gen 3), NDI HX3 Certified, 20X Optical Zoom, USB 3.0/LAN, PTZ Camera 4K for Church, Worship, Education, Conferences,(NDI License Included)
Pairs well with
In stock! Ships within 1-2 business days.
30-day risk-free trial
3 Year Warranty
Online Support: ivan@fomako.net
High quality & full function
Complimentary shipping & returns
FoMaKo K20UH 4K HDMI PTZ Camera with AI Auto-Tracking(Gen 3), NDI HX3 Certified, 20X Optical Zoom, USB 3.0/LAN, PTZ Camera 4K for Church, Worship, Education, Conferences,(NDI License Included)
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
FoMaKo Live Streaming System
Easy and Plug
3 Years Long Warranty
Professional After-sales Support
FoMaKo
K20UH
New Released 4K 30fps HDMI, NDI, USB , SDI ， IP Streaming PTZ Camera
(NDI Max Support 1080P 30fps)
4K PTZ Camera
Professional 4K 30fps PTZ Camera: Unmatched Clarity for Live & Capture
3 years Wanrranty
AI Tracking Gen 3
Personalize for a smarter, more intuitive camera
Multi-camera live streaming
Multi-camera live streaming delivers richer perspectives, more professional footage and an upgraded viewing experience.
NDI HX3
Ultra-low latency, responsive real-time control, and smoother professional streaming.

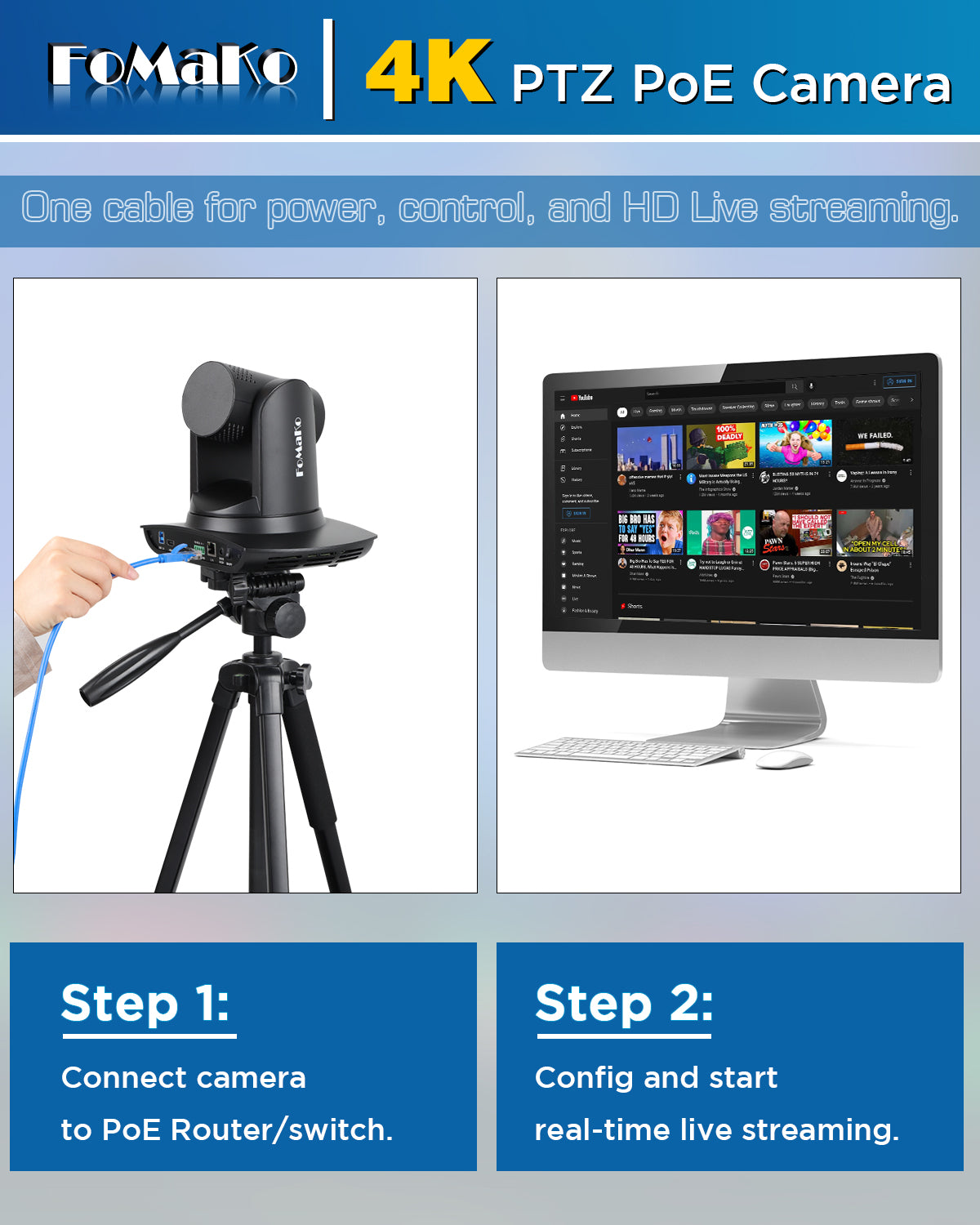

PoE
Simplified cabling with both power & data over one cable, stable and easy to install.
Diverse Application Scenarios
FoMaKo PTZ camera excels in diverse professional scenarios, including church live streaming, video conferencing, live shopping, college lectures, live events, government activities, and studio broadcasting.
Tech Specs
Description
- 【 FoMaKo 4K PTZ Camera 】. Supports HDMI 2.0 interface and Output HDMI 4K 30fps, 1080P 60fps Uncompressed Ultra High Definition Video. UHD HD Video Resolution: Resolution is up to 3840x2160 with frame rateup to 30fps. 1/2.8 inch high quality CMOS sensor, 8.42MP Effective Pixels. Made for Church Live Services, house of Worship, Teaching and Education, Broadcast, High-Tech Conference, Summit Forum, Events. PoE supported.

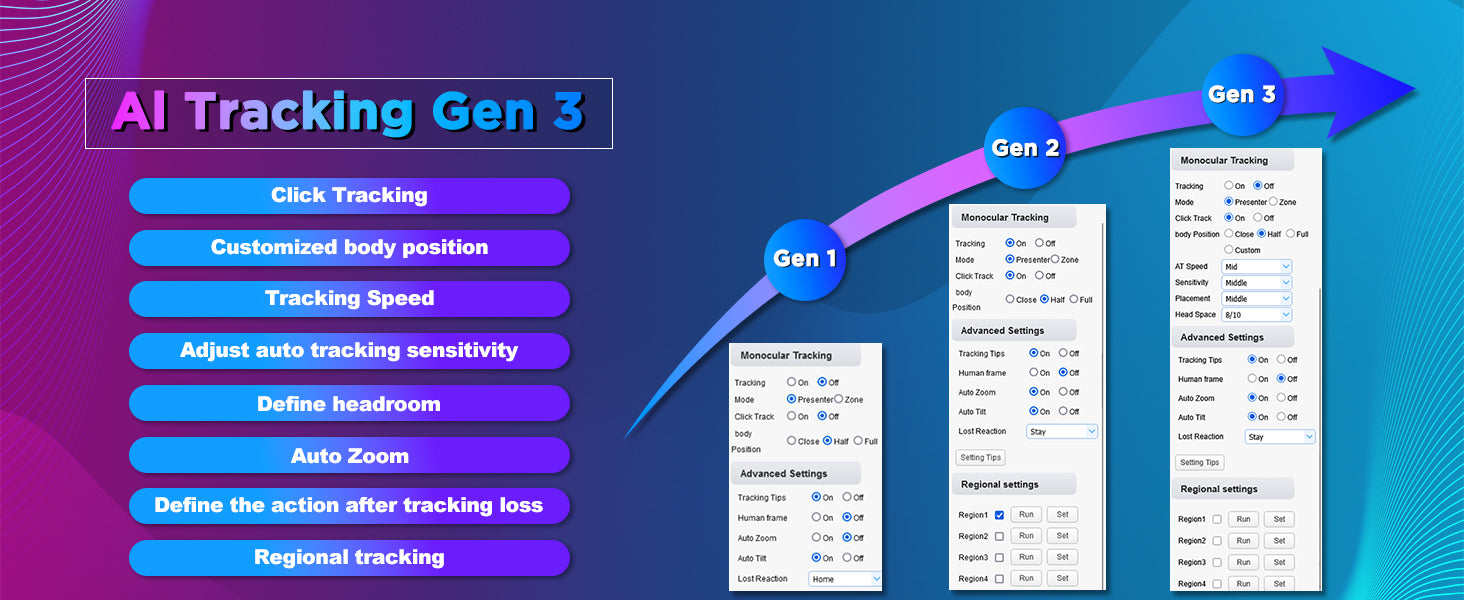

- 【 Advanced AI Auto-Tracking Gen 3 Version 】. FoMaKo third-generation AI Tracking enables more customized tracking features, such as you can adjust the tracking modes, tracking sensitivity, figure size, character position and lost target action. You can choose real-time tracking and regional tracking according to the use of the environment. simply press F2 on the remote control to turn on automatic tracking and Press F4 to switch tracking target.
- 【 Official NDI Camera, NDI 6 & NDI HX3 Certified 】. FoMaKo NDI PTZ Camera is the real OFFICIAL NDI brand by Newtek(NDI Video), which you can verify from NDI Video website, Official NDI means More stable, better video quality through NDI flow, even under low bandwidth network (NDI HX3 Supported). Tips: To view the camera IP: Press Menu → Network → IP Addr.

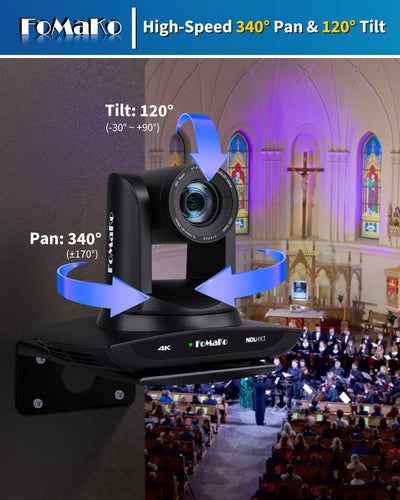

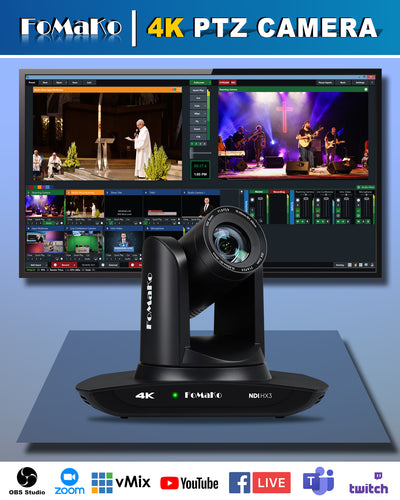

- 【 FoMaKo 4K 20x Optical Zoom AI PTZ Camera 】. Pan: -170~+170 degree.Tilt: -30 ～+90 degree. 20x Optical Zoom with 15x Digital Zoom,High-Speed 340° Pan & 120° Tilt. Compatible with Video Mixer Switcher and PTZ controller, Compatible with vMix / OBS and other Live Video Streaming Software, Support Multi-cameras video production for live streaming to YouTube and facebook. Compatible with Mac computers, windows PC, etc.
- 【 3-Year Limited Warranty 】 - Shop with confidence. 30-Day No-Questions-Asked Money-Back Guarantee. Risk-free purchase. Free Online Training - Get started easily. 24/7 Expert Assistance and - Responses within 24 hours (please include your Order ID). If necessary, we can provide remote assistance in setting up. Enjoy our lifetime customer technical support. Your satisfaction is our priority, we have got you covered!
- 【 What's in the box 】.FoMaKo AI Tracking 4K PTZ Camera 20x optical zoom, IR Remote Controller, Wall Mount, Ceiling Bracket, USB Cable, Power Adapter 12V 2A, User Manual. Tips: FoMaKo PTZ Bundle is more affordable, Serach keyword " FoMaKo 4K PTZ Bundle " or " FoMaKo NDI PTZ Bundle " from Amazon for a try.

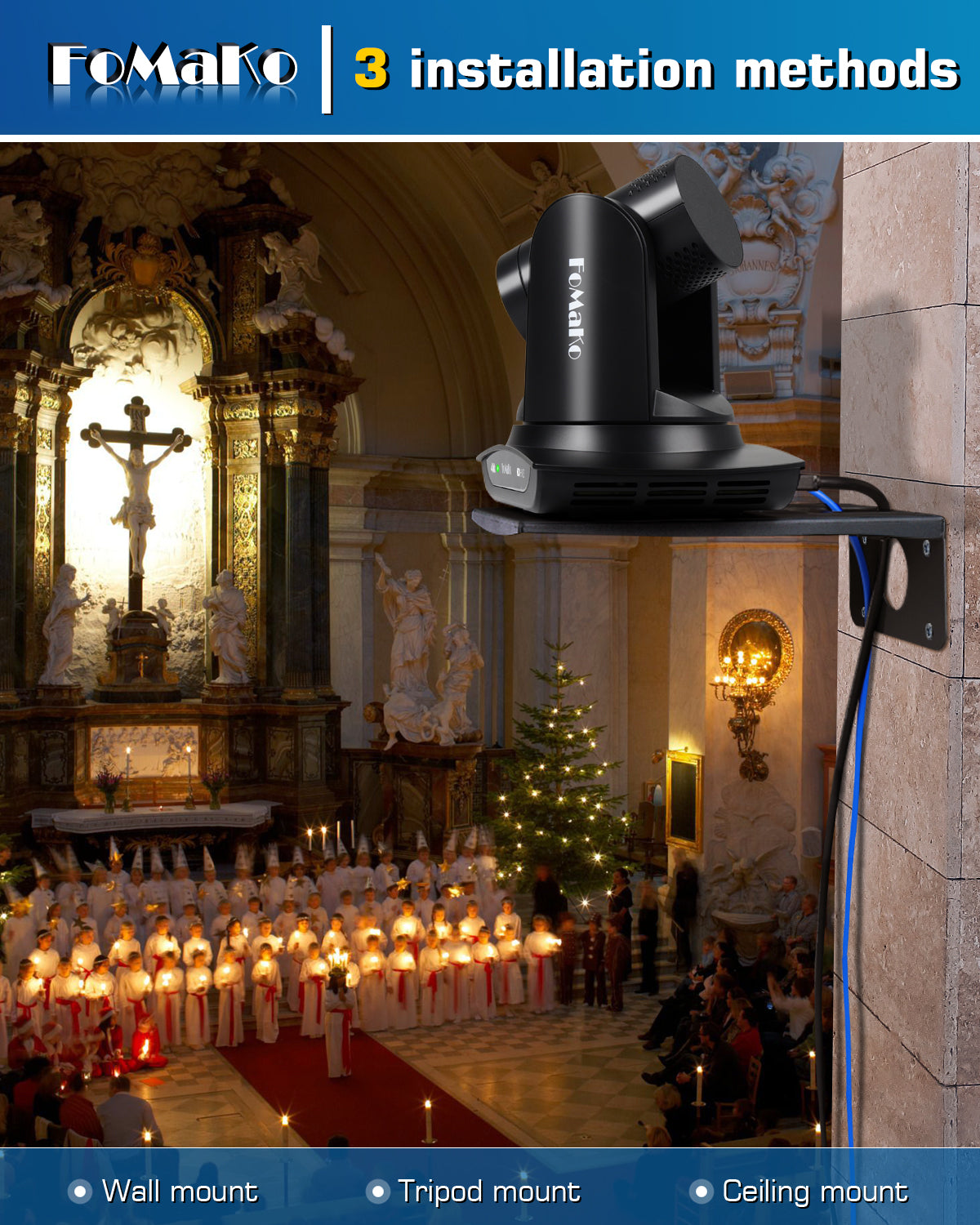

- 【 Easy to Use 】.You can set up, preview and control this PTZ Camera from web browser (Default original password is admin). Built-in Gravity Sensor, Support PTZ auto-flip function and easy installation. Support Desktop, Tripod mounting, Wall mounting and Ceiling mounting. Pan/Tilt/Zoom Speed Adjustable, Preset Speed Adjustable as well. Tips: Remote boot and shutdown FoMaKo PTZ cameras can be supported through the VISA command to communicate with web pages.
K20UH Features
1/2.8 inch UHD Sony CMOS sensor：Equipped with a powerful 1/2.8 inch Sony CMOS sensor, it supports up to 3840x2160 resolution at 30fps and H.264/H.265 encoding for smoother, clearer motion video under low-bandwidth conditions.
20x Optical Zoom：Employs 20x Optical Zoom + 15x Digital Zoom, with a 60° HFOV. Captures large scenes and minute details clearly for an enriched video-viewing experience.
Low Noise and High SNR：Achieves super - high SNR images via low - noise CMOS sensor. Advanced 2D/3D noise - reduction technology further reduces noise while ensuring high image clarity.

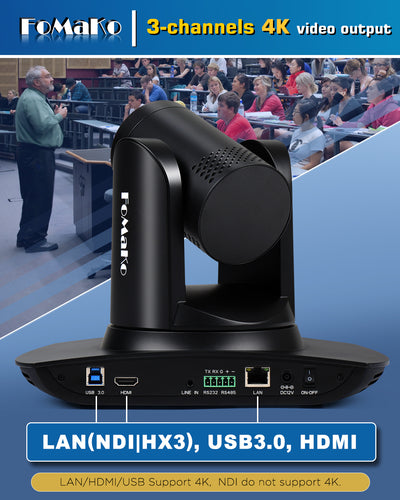

Multiple Video Output Interfaces：Output interfaces including HDMI, LAN, USB3.0. For LAN, POE are optional. Consult the dealer for specific model details.
AI humanoid tracking：Features a built - in high - speed processor and exclusive advanced image - processing/analysis algorithms. Users can select real - time/regional tracking based on the environment. Switch tracking targets by clicking the person - object box via the web page.
Leading Auto-Focus(AF) Technology：Fast, accurate, and stable Auto - Focus (AF) technology. Supports Focus Modes: Auto, Manual, One - Push Focus. Auto - focus speed is significantly faster than competitors. Maintains clear HD images during movement and zoom in/out.
Multiple Audio/Video Compression Standards：Supports H.264/H.265 video compression (up to 3840x2160@30 fps) and AAC audio compression (48000 sampling frequency).
Multiple Network Protocol：Supports IP protocols including ONVIF, GB28181, RTSP, RTMP, VISCA OVER IP, IP VISCA, RTMP(S), SRT. Features RTMP push mode (easy to connect to streaming servers like Wowza/FMS), RTP multicast mode, and full - command VISCA network control.
Multiple Control Protocol：Supports VISCA, ONVIF, PELCO - D, PELCO - P protocols, plus automatic identification protocols.

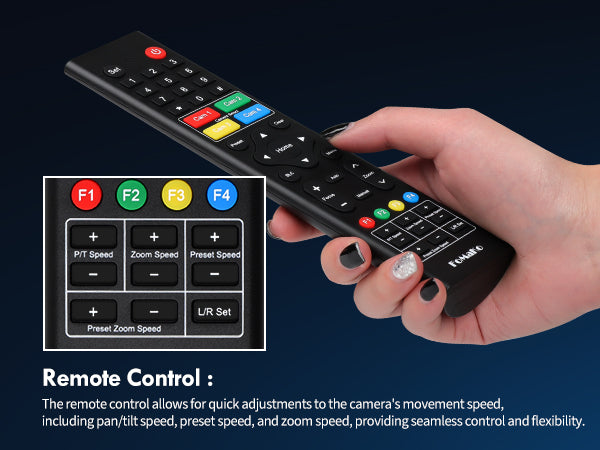

IR Remote Control：Control via IR remote. Menu settings available through HDMI/USB connections to display devices. LAN connections do not support IR remote menu settings.
Multiple Application：Suitable for: Online Education, Lecture Capture, Webcasting, Video Conferencing, Telemedicine, Unified Communication, Emergency Command & Control Systems, etc.
Camera Parameters
Video Resolution：4KP30, 4KP25, 1080P60, 1080P50, 1080P30, 1080P25, 720P60, 720P50, 1080P59.94, 1080P29.97, 720P59.94
Sensor：1/2.8 inch high quality HD CMOS sensor
Lens：20X, f=5.05-91.49mm, F1.8 - F2.9
Digital Zoom：15X
Minimum Illuminance：0.1 Lux (F1.8, AGC ON)
Shutter：Auto/Manual(1/25s - 1/10000s)
White Balance：Auto/Manual/Onepush /2400K/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K/7100K
Backlight Compensation：Support
Digital Noise Reduction：2D & 3D DNR
Video S/N：≥50dB
View angle：3.5°(N) 60°(W)
Horizontal Rotation Range：±170°
Vertical Rotation Range：-30° - +90°
Pan Speed Range：0.1°/s~100°/s
Tilt Speed Range：0.1°/s~45°/s
H & V Flip：Support
Image Freeze：Support
Number of Presets：255
Preset Accuracy：±0.1°
Network Spec
Video Compression：LAN: H.264、H.265；USB 3.0: MJPG、H.264、YUY2、NV12
Video Stream：Main Stream, Sub Stream
Main Stream Resolution：3840×2160/1920×1080/1280×720/640×480/360×640×480@30/25/20/15/10/5fps
Sub Stream Resolution：1920×1080/1280×720/640×480/360×640×480/320×240/320×180@30/25/20/15/10/5fps
Video Bit Rate：64Kbps ~ 40960Kbps
Bit Rate Type：CBR, VBR
Frame Rate：25Hz: 1fps ~ 25fps, 30Hz: 1fps ~ 30fps, 50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps
Audio Compression：AAC
Audio Bit Rate：32Kbps, 48Kbps, 64Kbps, 96Kbps, 128Kbps
Support Protocols：TCP/IP, RTSP, RTMP, VISCA OVER IP, IP VISCA, RTMP(S), SRT, ONVIF, GB/T28181; Support Network VISCA control protocol; Support remote upgrade, reboot and reset
USB Features
Operating System：Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
Color System/Compression：YUY2/NV12/MJPG/H264
Video Format：YUY2/NV12: 1920×1080/1280×720/1024×576/800×600/800×448/640×480/640×360/480×320×180@30fps; MJPG/H264: 3840×2160/2560×1440/1920×1080/1690×1280/1280×720/1024×576/960×540/
800×600/800×448/720×576/720×480/640×480/640×360/480×320/288×320/240×360@30fps
USB Audio：Support
USB Video Communication Protocol：UVC 1.1
Included in the Box
PTZ Camera
Remote Control
Wall Mount
Power Adapter
RS232 Cable
USB 3.0 Cable
User Manual
FAQs
Please read our FAQs page to find out more.
What is the maximum frame rate for the 4K signal of this camera?
At 4K resolution, it supports a maximum frame rate of 30fps.
Does this camera support AI tracking?
Yes, it is equipped with FoMaKo 3rd-generation AI tracking algorithm for smoother tracking.
How far can the 4K HDMI signal be transmitted?
With a standard HDMI cable, the maximum transmission distance is 30 meters;
With a FoMaKo fiber optic HDMI cable, it can transmit up to 300 meters with almost no latency.
Does this camera support PoE function?
Yes, it supports 48V 802.3af PoE
Does this camera come with G-Sensor?
Yes, it features a built-in G-Sensor that automatically flips the image to the correct orientation, whether installed upright or ceiling-mounted.
Is the PTZ speed of the camera adjustable?
Yes. You can precisely adjust the PTZ speed via various methods including the camera's on-screen menu, remote control shortcut keys, web interface, and a professional PTZ controller.
