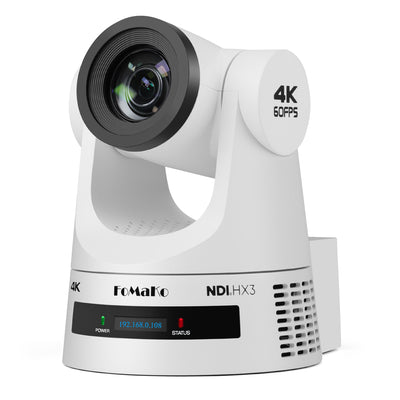

FoMaKo K600NW 4K 60fps NDI PTZ Camera, NDI|HX3 4K 60fps Output,20X Optical Zoom,Gen 3 AI Auto-Tracking, 3G-SDI HDMI NDI USB PoE, for Church Worship & Live Streaming, White
Pairs well with
In stock! Ships within 1-2 business days.
30-day risk-free trial
3 Year Warranty
Online Support: ivan@fomako.net
High quality & full function
Complimentary shipping & returns
FoMaKo K600NW 4K 60fps NDI PTZ Camera, NDI|HX3 4K 60fps Output,20X Optical Zoom,Gen 3 AI Auto-Tracking, 3G-SDI HDMI NDI USB PoE, for Church Worship & Live Streaming, White
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
FoMaKo Live Streaming System
Easy and Plug
3 Years Long Warranty
Professional After-sales Support
FoMaKo
K600NW
New Released 4K 60fps HDMI, NDI, USB , SDI ， IP Streaming PTZ Camera with white color

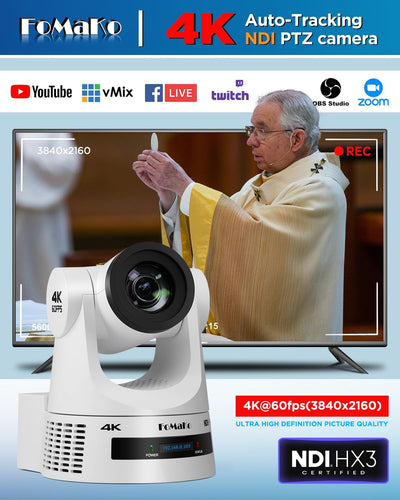

4K NDI HX3 PTZ Camera
NDI HX3: Ultra-low latency, responsive real-time control, and smoother professional streaming.
3 years Wanrranty
AI Tracking Gen 3
Personalize for a smarter, more intuitive camera

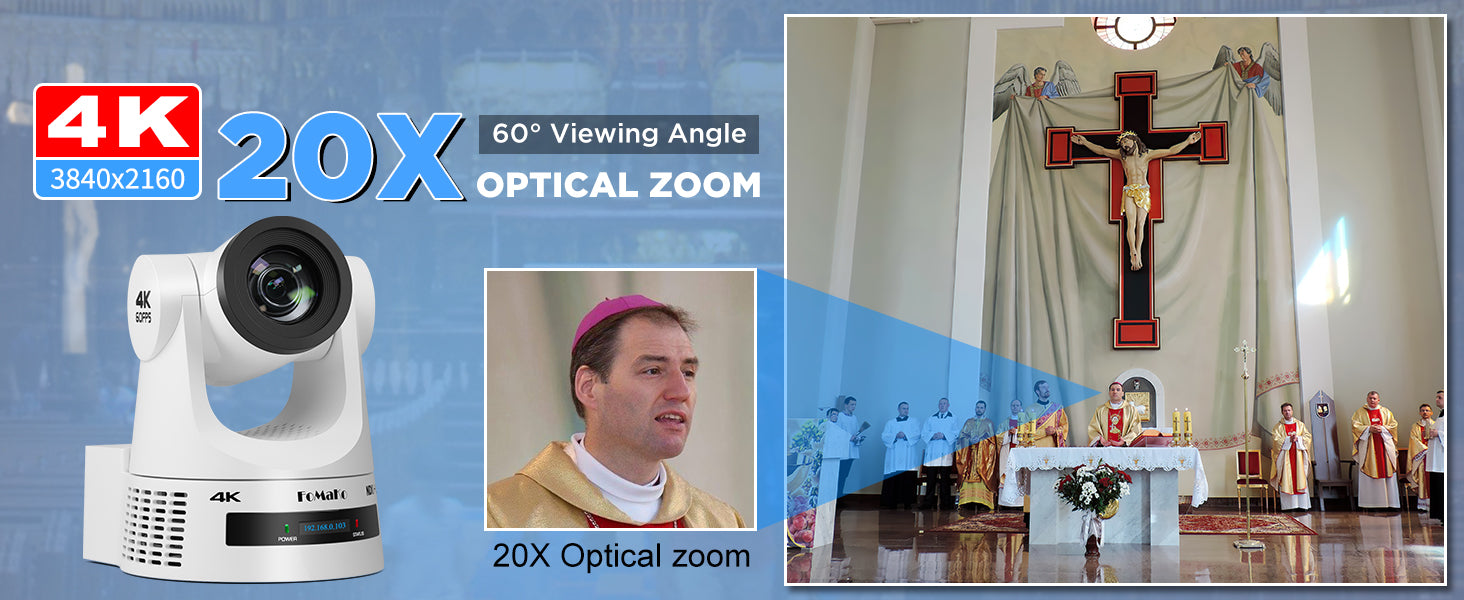

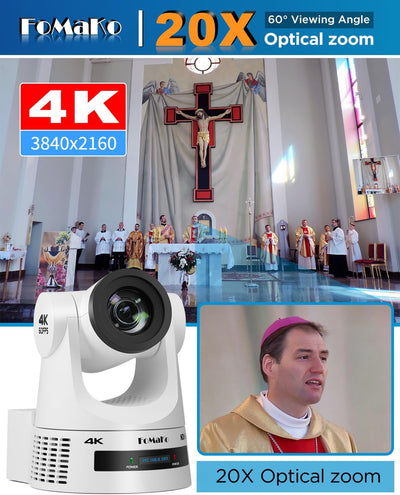

4K 60fps 20xZoom
4K PTZ camera with 20x optical zoom, ideal for all scenarios, from panoramic views to tight close-ups.

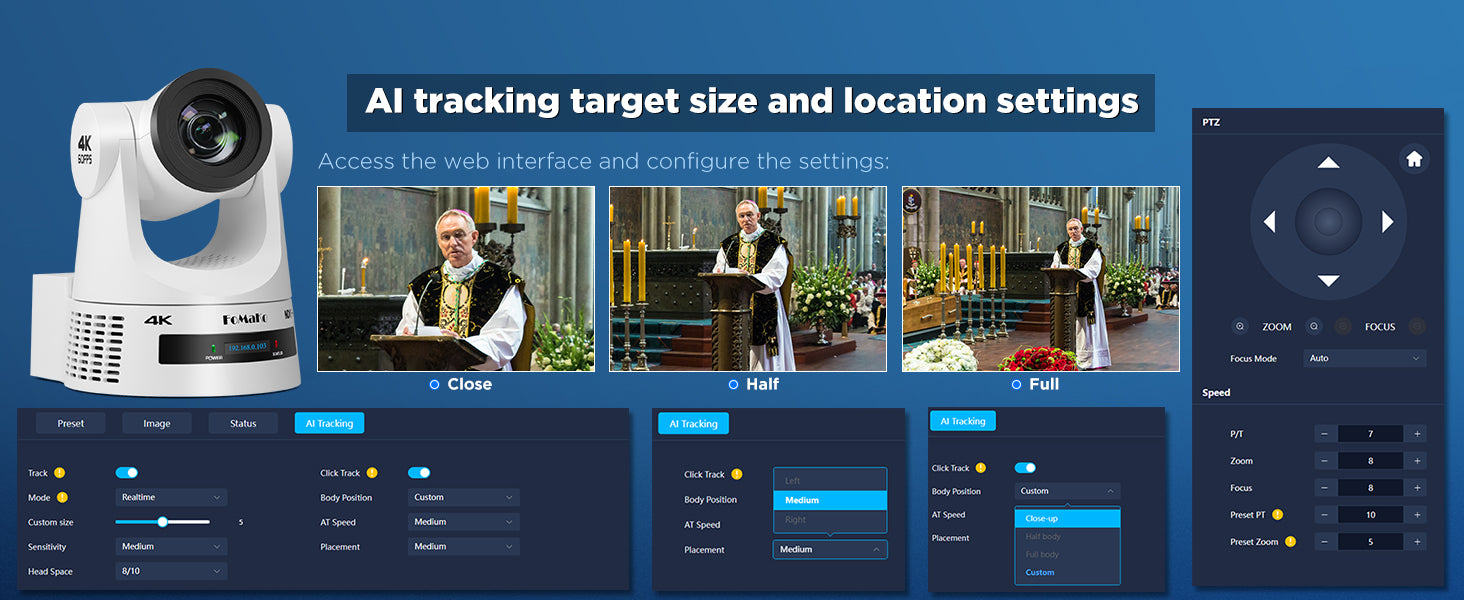

Redesigned UI Interface
Intuitive and user-friendly layout, enabling effortless operation.
255 Presets Capacity：Massive storage for presets, enabling quick switch between multiple scenes.

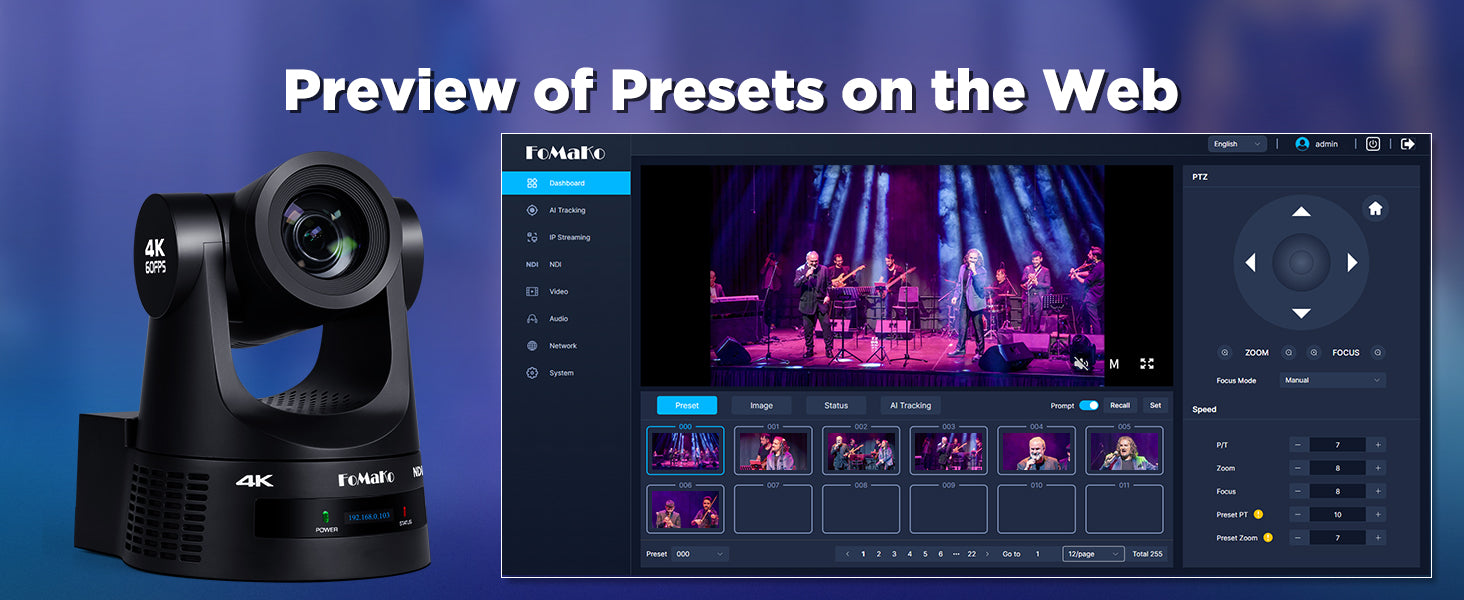

Visual Preset Management：Save preview images for presets to ensure accurate and instant positioning.

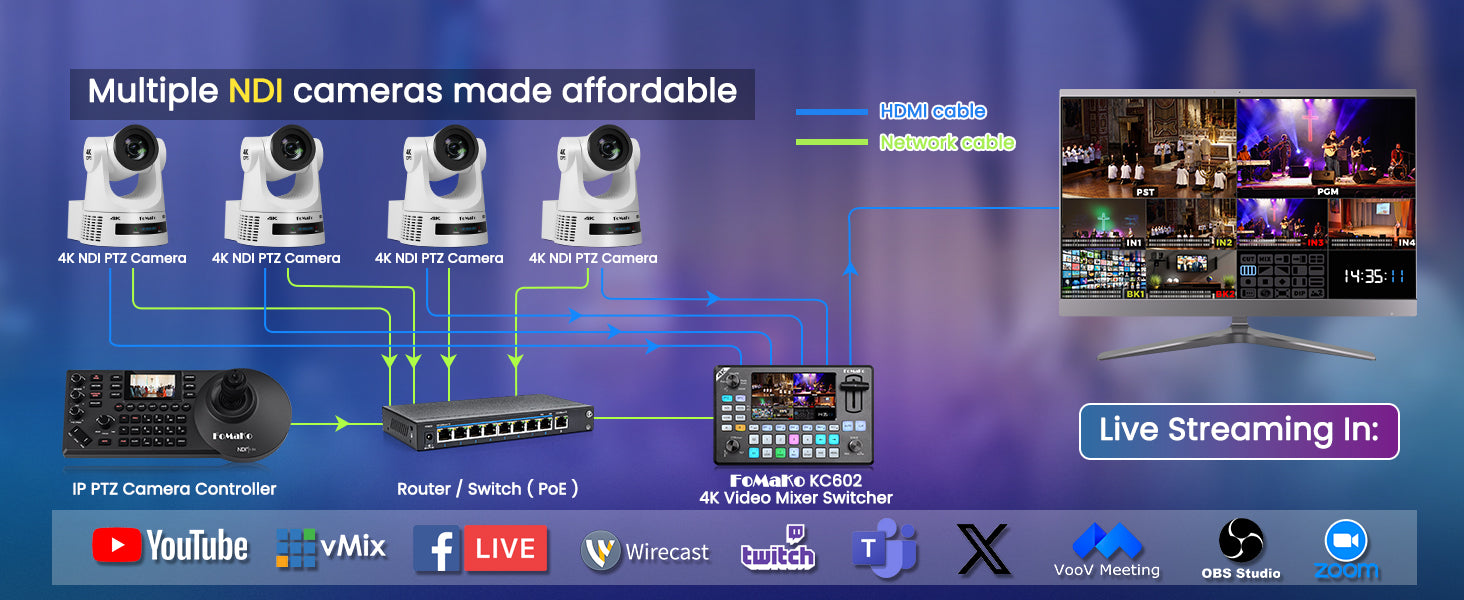

Multi-camera live streaming solution
The K600N 4K HDMI NDI PTZ Camera can be paired with an HDMI video switcher, PTZ controller and PoE switch to form a cost-effective multi-camera live streaming solution, supporting live streaming to multiple platforms such as YouTube, OBS Studio and Zoom.

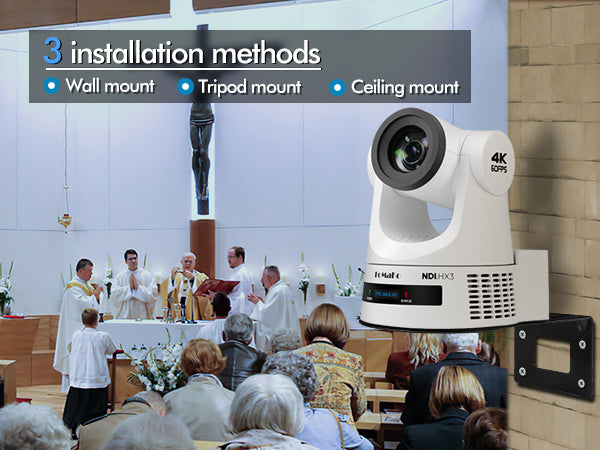

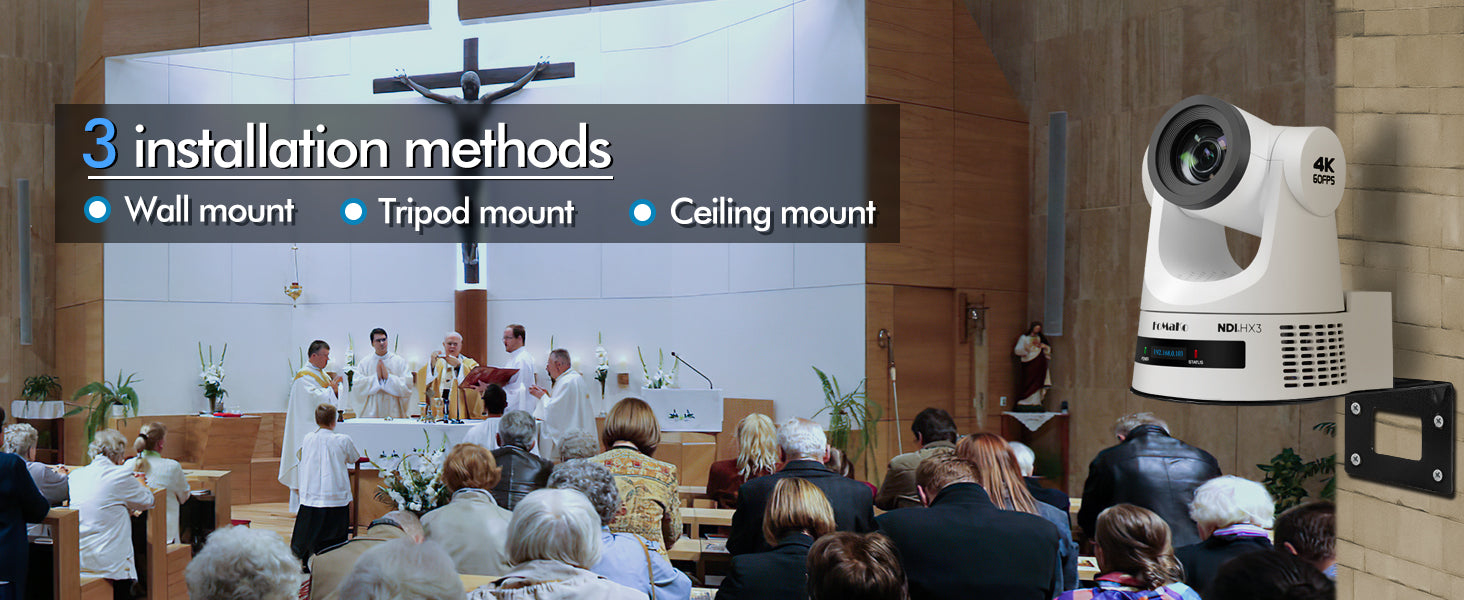

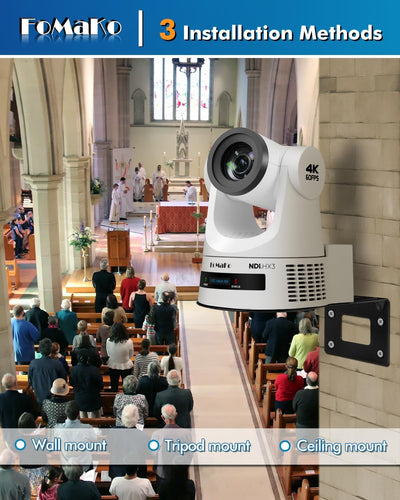

3 Installation Methods
K600N 4K HDMI NDI PTZ Camera(with G-Sensor ), featuring 3 installation methods (wall mount, tripod mount, ceiling mount), suitable for high-definition live streaming and recording in indoor environments like churches.

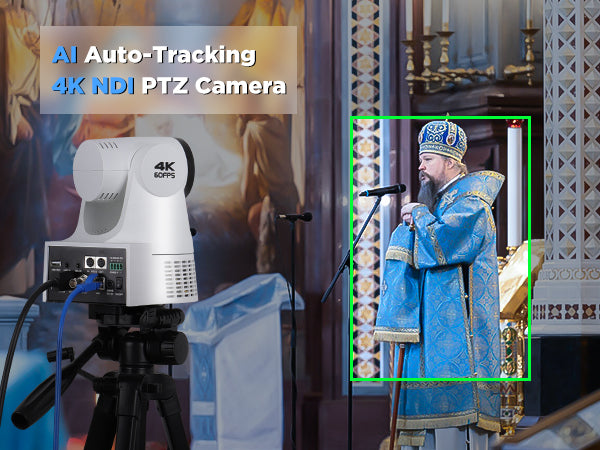

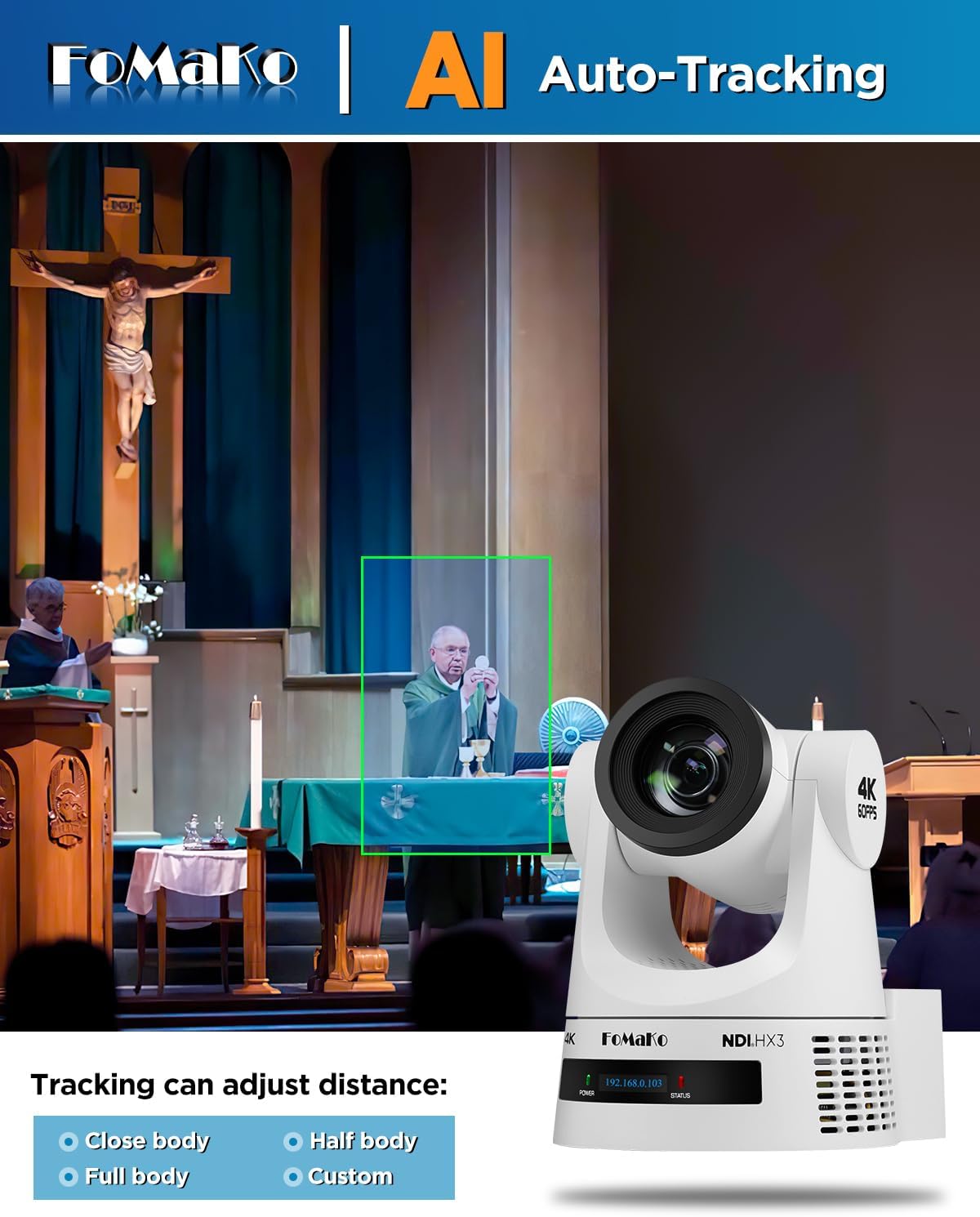

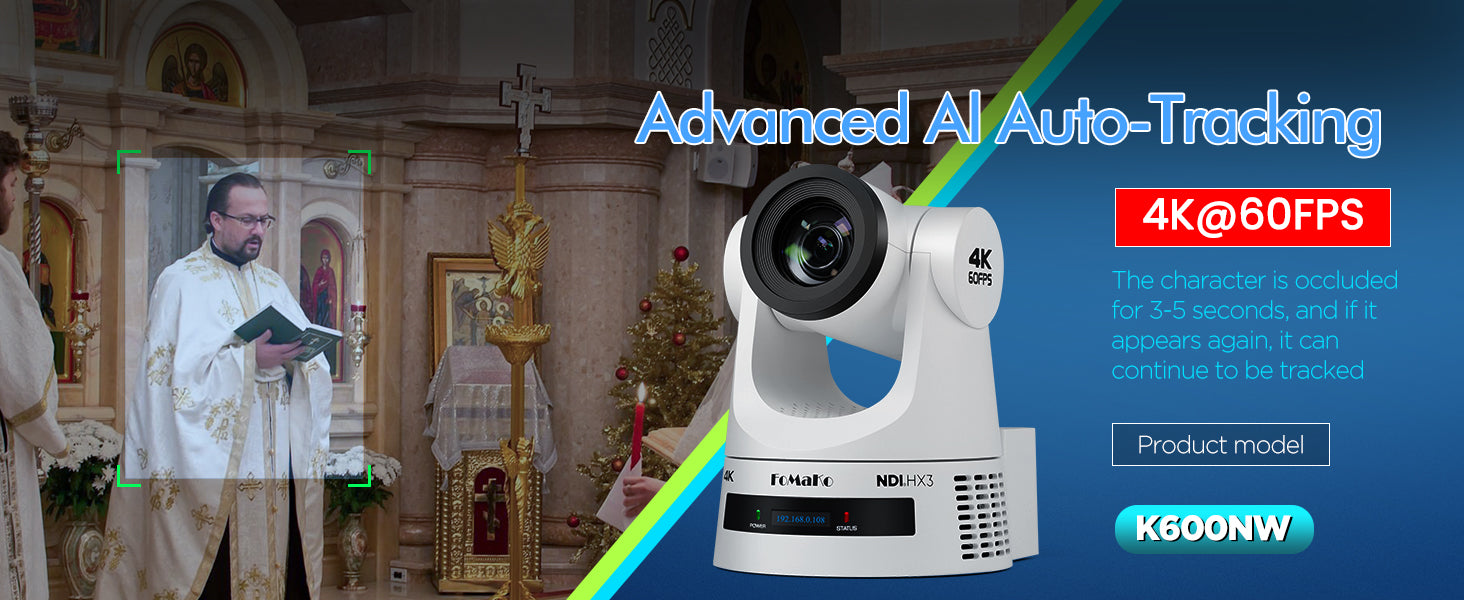

Advance AI Auto-Tracking
The K600NW 4K HDMI NDI PTZ Camera is equipped with advanced AI auto-tracking and supports 4K@60FPS ultra-high-definition shooting. It can continue tracking even if the subject is occluded for 3-5 seconds and reappears, making it ideal for live streaming and recording in scenarios like churches.

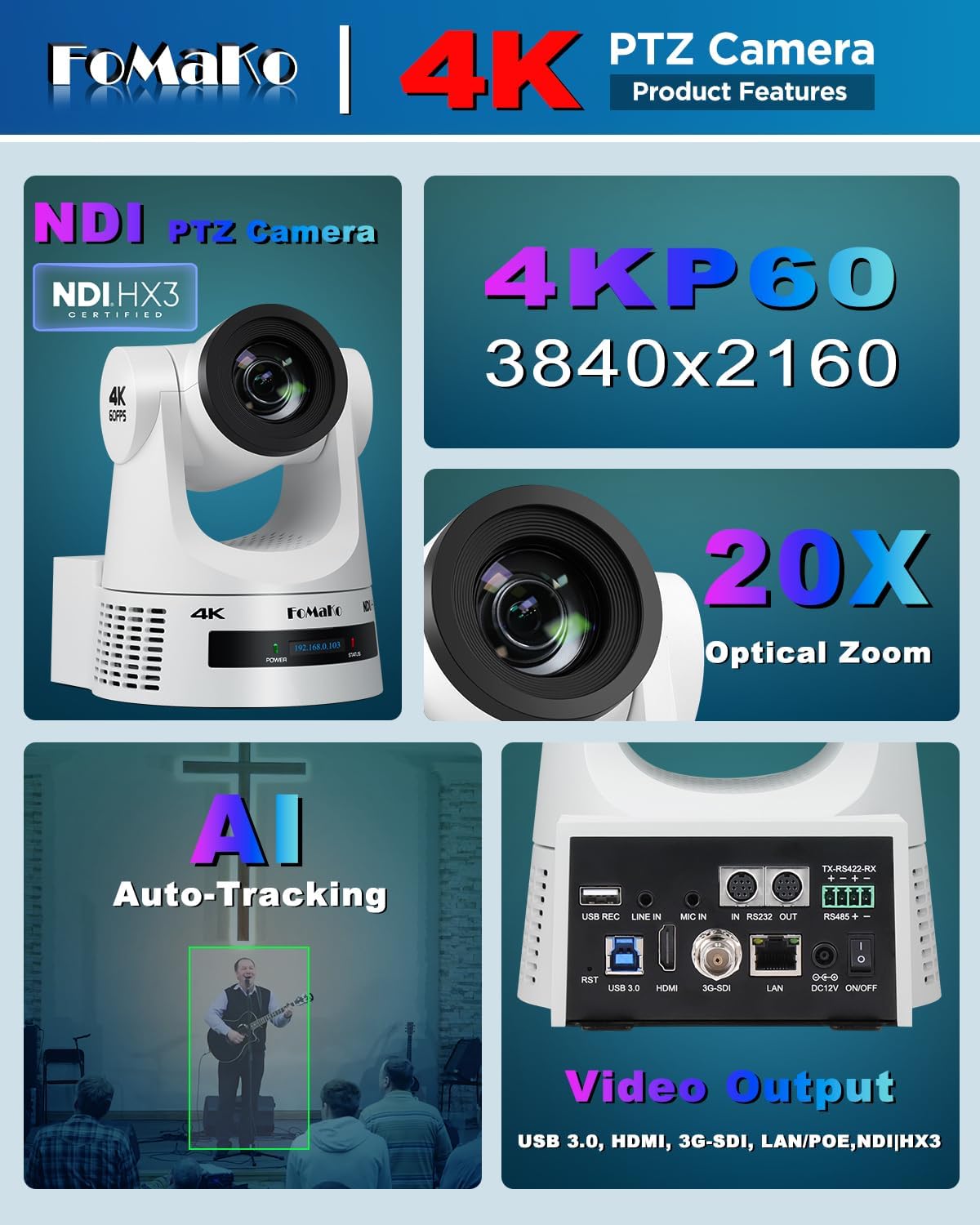

Main Features
The K600NW 4K HDMI NDI PTZ Camera features AI auto-tracking, 4K@60FPS ultra HD, 20X optical zoom, PoE support and NDI|HX3 low-bandwidth high-quality transmission. It offers multiple video outputs including USB 3.0, HDMI, 3G-SDI and LAN, and is fully compatible with major live streaming platforms such as YouTube, OBS Studio and vMix.
Wide Range Application Scenarios
The K600NW 4K PTZ camera is suitable for a wide range of professional audio and video scenarios, including church live streaming, video conferencing, live shopping, college lectures, live events, government activities, and studio broadcasting.

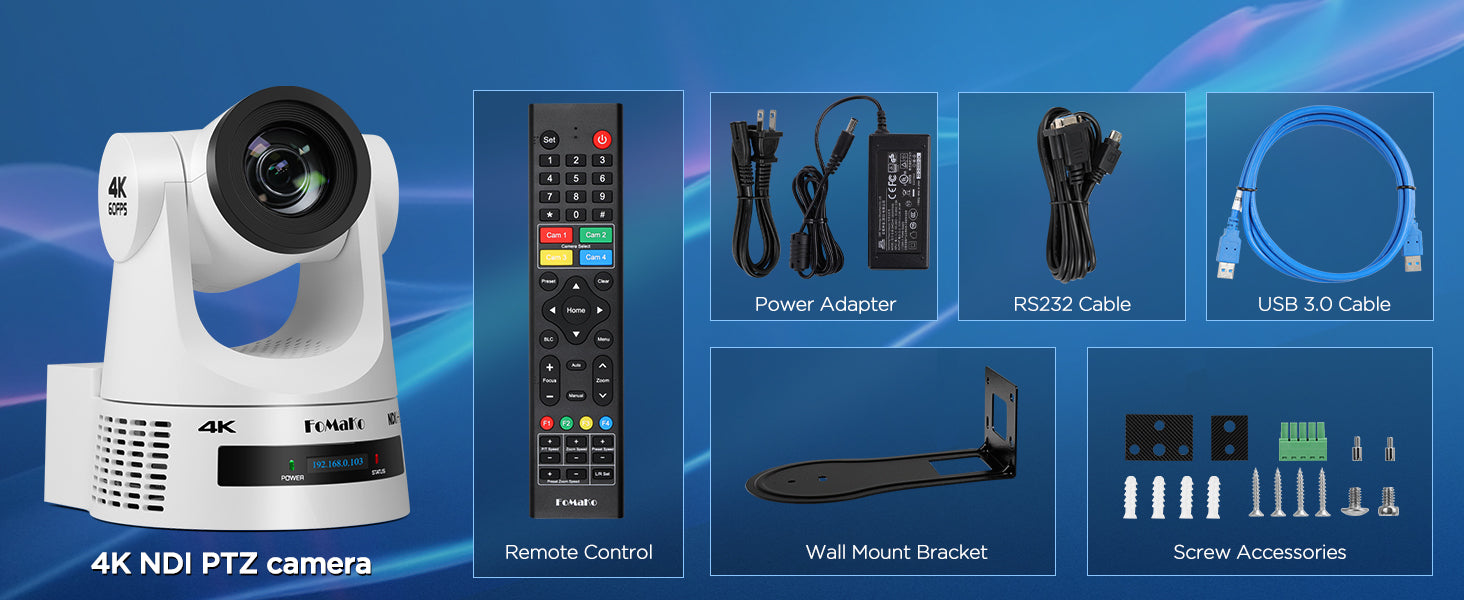

What's in the box
Comes with remote control, user manual, wall mount, RS232 Cable, USB 3.0 Cable, screw accessories and Power adapter with US/EU/AU/UK Plug
Tech Specs
Description
- 【 FoMaKo K600NW 4K 60FPS NDI PTZ Camera, Support NDI HX3 4K 60fps Video output 】.White color. 20x Optical zoom. 3-Channels 4K video output, HDMI/NDI support 4K at 60fps,USB Support 4KP30, and 3G-SDI support 1080P at 60fps. Uncompressed Ultra High Definition Video, PoE supported. Made for Church Worship Live Services Live studio, Events.
- 【SHOP WITH CONFIDENCE 】. 30-Day no-hassle return and refund; 1-Year manufacturer warranty with free replacement for quality defects (excludes misuse, accident, water damage, or normal wear); 3-Year optional trade-in program available for upgraded models; Lifetime technical support with 24-hour response; Free setup guidance and remote assistance available with your order ID.
- 【 True to Life Colors and pretty picture quality 】. Simultaneous LAN, USB3.0, HDMI 2.0 / LAN,3G-SDI, 4- channels video output. HDMI: 4KP60, 1080P60, 1080P50,1080P30,etc. USB3.0: 4KP60, 1080P60, 1080P30 etc. LAN: 4KP60, 1080P60, etc. NDI: 1080P60, etc. SDI:1080P60. Supports broadcast rate and covered 1080P, 720P resolutions.
- 【 Advanced AI Auto-Tracking Gen 3 Version 】. FoMaKo third-generation AI Tracking enables more customized tracking features, such as you can adjust the tracking modes, tracking sensitivity, figure size, character position and lost target action. You can choose real-time tracking and regional tracking according to the use of the environment. simply press F2 on the remote control to turn on automatic tracking and Press F4 to switch tracking target.
- 【 Leading Auto-Focus(AF) Technology 】. Fast, accurate and stable Auto-Focus(AF) technology. Pan/Tilt/Zoom Speed Adjustable, Preset Speed Adjustable as well. Support Focus Mode Auto/Manual/One Push Focus. Compared to our competitors, our Auto-focus speed is much faster, FoMaKo PTZ camera maintains clear HD image both during movement and zoom in/out zooming.
- 【 FoMaKo NDI PTZ Camera 】.NDI 6 and NDI | HX3 Support (NDI License Included, Officially Approved by Newtek Inc). Low latency. Support plug and play, which is convenient for project implementation and deployment. Compatible with Video Mixer Switcher and FoMaKo PTZ controller, Compatible with vMix/OBS and other Live Video Streaming Software, Multi-cameras video production for live streaming to YouTube and facebook.
- 【 FoMaKo 4K PTZ Bundle is more affordable 】. FoMaKo PTZ Cameras Compatible with FoMaKo video mixer switcher and PTZ Camera controller, Compatible with vMix/OBS and other Live Video Streaming Software, Support Multi-cameras video production for live streaming to YouTube and facebook. Compatible with Mac computers, windows PC, etc.
K600NW Features

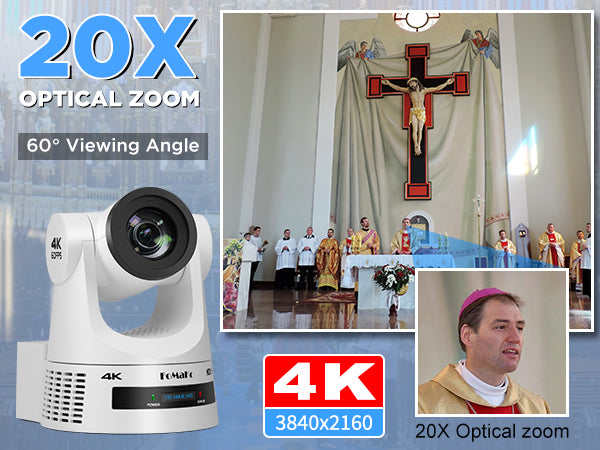

4K60fps UHD + 20x Optical Zoom
1/2.8-inch 8.42MP UHD CMOS sensor captures 3840×2160@60fps video with smooth motion and vivid colors; 5-94.5mm 10x optical lens offers fast action in large venues like auditoriums and lecture halls.

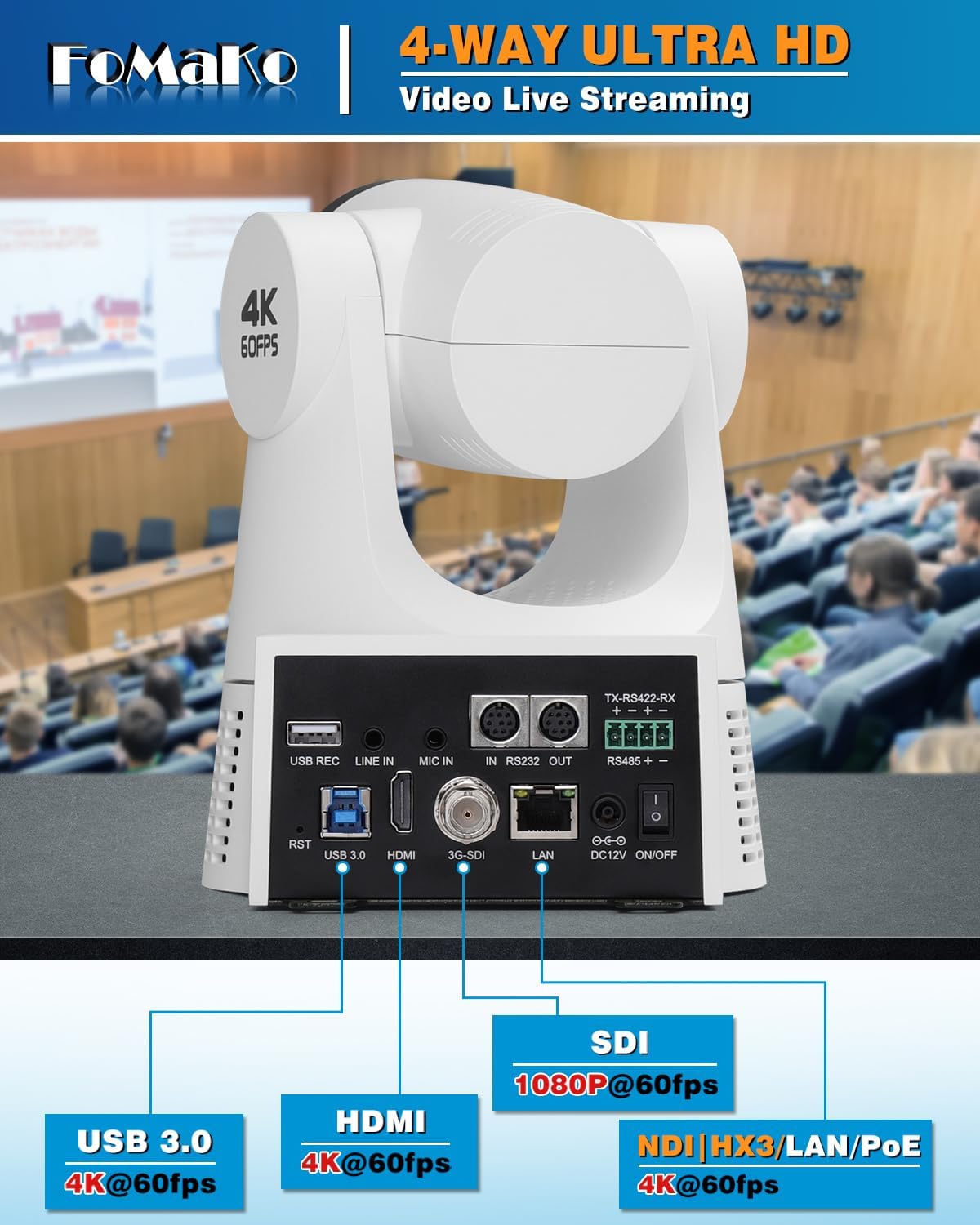

Multi-Interface Pro Connectivity
HDMI 2.0/3G-SDI/USB3.0/LAN ports enable simultaneous monitoring, recording, and streaming-HDMI 2.0 supports 4K60 output, fully compatible with professional broadcast gear and post-production editing systems.

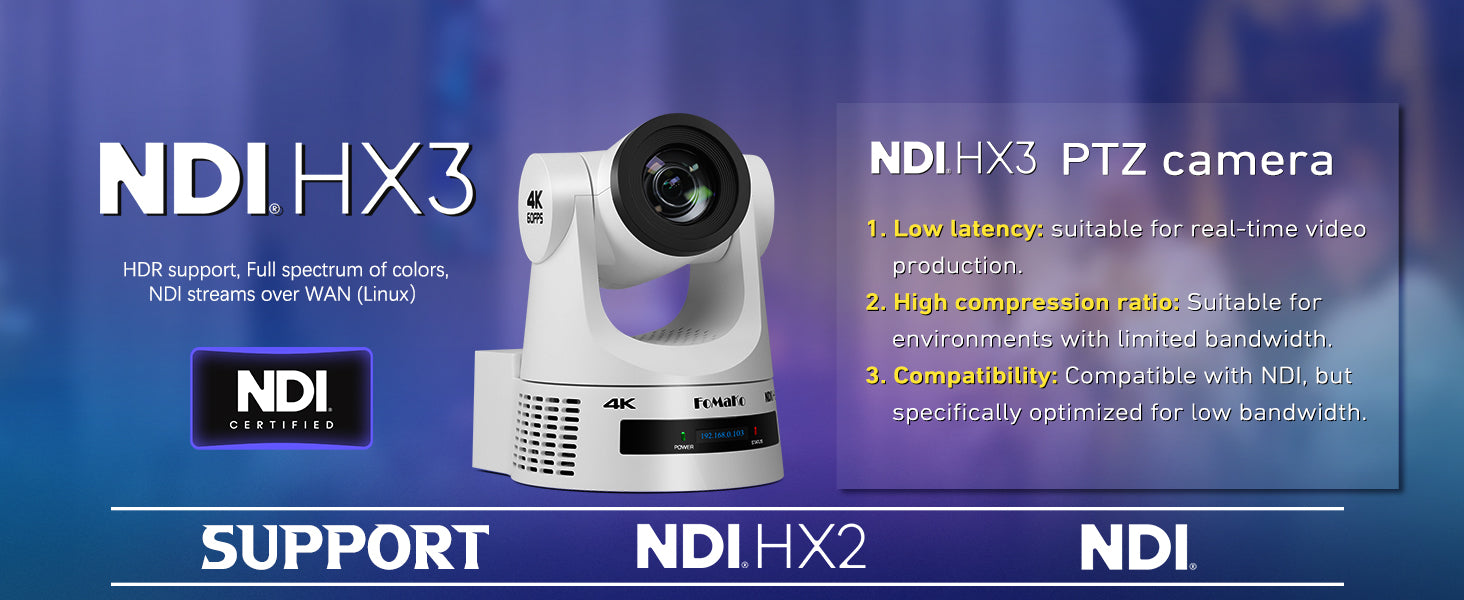

NDI HX2/HX3 Low-Latency Transmission
NDI HX2/HX3 certification enables stable IP audio-video-control transmission with ultra-low latency, perfect for synchronized multi-camera live productions and remote workflows.
Dual-Mode AI Human Tracking
Real-time/area/area tracking with web-click target switching; advanced algorithm accurately locks onto subjects. Users can easily switch tracking targets via remote control.
Multi-Protocol Control Ecosystem
Supports VISCA/Pelco-D/Pelco-P protocols, RS232/RS485/network control with 1620000 max baud rate, adapting to broadcast studios and enterprise centralized management setups.
PoE+ Power + Auto-Flip
PoE+ (802.3at) enables single-cable power/data transmission; gravity sensor auto-adjusts orientation for ceiling/wall mounting, reducing installation complexity.
OLED Status Display
On-camera OLED screen clearly shows IP, resolution, frame rate, and protocol-facilitating quick setup and real-time monitoring.
Dual-Stream Output
H.264, H.265 dual streams (main/sub) intelligently adapt to bandwidth constraints, with main stream for 4K high-quality recording and sub stream for smooth low-bandwidth transmission.
Cross-Platform Streaming
Native supports RTMP/SRT/RTSP protocols, seamlessly integrating with Facebook, YouTube, vMix, and OBS-no extra plugins needed for professional-grade streaming.
2D/3D DNR + High SNR + WDR
Advanced 2D/3D noise reduction, ≥50dB SNR, and 8-level WDR suppress grain while balancing bright/dark areas, delivering sharp, detailed images in complex lighting conditions.
Video Format
HDMI: 4KP60/59.94/50/30/29.97/25; 1080P60/59.94/50/30/29.97/25; 720P60/59.94/50
3G-SDI:1080P60/59.94/50/30/29.97/25; 1080I60/50/59.94; 720P60/59.94/50
USB3.0:
YUY2/NV12:
1920×1080/1280×720/1024×576/800×600/800×448/640×480/640×360/480×270/320×180@60/30/25/20/15/10/5fps;
MJPEG/H264/H265:
3840×2160/1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×480/
640×360/480×270/352×288/320×240@60/30/25/20/15/10/5fps
LAN:
Main Stream: H264/H265:
3840×2160/2592×1944/2304×1296/1920×1080/1280×720@60/30/25/20/15/10/5fps
Sub-Stream: H264/H265:
1920×1080/1280×720/320×180/640×480/320×240/640×360@30/25/20/15/10/5fps
Input/Output Interface
Video Interfaces：HDMI, 3G-SDI, LAN(POE+), USB3.0, USB REC, LINE IN, MIC IN, RS232-IN, RS232-OUT, RS422(compatible with RS485), DC12V Power Supply, Power Switch
Video Output：HDMI, 3G-SDI, LAN,USB3.0
Video Stream：Dual stream output
Video Compression Format：LAN: H.264,H.265；USB 3.0 : MJPG,H.264,H.265,YUY2,NV12
Audio Input Interface：LINE-IN: 3.5mm stereo input; MIC IN: 3.5mm stereo microphone input
Audio Output Interface：HDMI, 3G-SDI, LAN
Audio Compression Format：AAC
Control Interface：RS232 (IN/OUT), RS485, RS422
Control Protocol：VISCA/Pelco-D/Pelco-P, Baud Rate: 115200/38400/9600/4800/2400bps
Power Interface：HEC3800 outlet (DC12V)
Power Supply：Input AC110V-AC220V; Output DC12V/2.0A
Input Voltage：DC12V±10%
Input Current：Maximum: 1A
Power Consumption：Maximum: 12W
Network Protocols：HTTP,RTSP, RTMP, ONVIF, STR, GB28181;Support Multicast; VISCA over IP; NDI HX2/HX3 (optional) (100Mbps Ethernet, supports PoE+, supports remote upgrade/remote reboot/remote reset)
Camera Parameters
Focal length：f=5.1-94.5mm
Sensor：1/2.8 inch high quality UHD CMOS sensor
Effective Pixels：16:9, 8.42 megapixel
View Angle：3.5°（N）60°（W）
AV：F1.8 – F2.9
Digital Zoom：16X
Minimum Illumination：0.5 Lux(F1.8, AGC ON)
DNR：2D & 3D DNR
White Balance：Auto/Manual/One-push/VAR(2400K-7100K, 100K adjustable)
Focus Mode：Auto/Manual/One Push Focus
Exposure Mode：Auto/Manual/Shutter Priority/Aperture Priority/Brightness Priority
Iris：Close,F11.0,F9.6,F8.0,F6.8,F5.6,F4.8,F4.0,F3.4,F2.8,F2.4,F2.0,F1.8 (Available only in Manual and Aperture Priority modes)
Electronic Shutter：1/60,1/90,1/100,1/125,1/250,1/350,1/725,1/1000,1/1500,1/2000,1/3000,1/4000,1/6000,1/10000 (Available only in Manual and Shutter Priority modes)
BLC：ON/OFF
Dynamic Range：Close, 1~8
Video Adjustment：Brightness,Contrast,Sharpness,Gamma,B&W Mode,Low-Light Mode
SNR：≥50dB
Included in the Box
PTZ Camera
Remote Control
Power Adapter
Wall Mount
RS232 Cable
USB 3.0 Cable
User Manual
FAQs
Please read our FAQs page to find out more.
What is the maximum frame rate of this camera?
It supports up to 60fps.
Which signal sources support 4K 60fps?
HDMI, NDI, USB and RTSP network streams all support up to 4K 60fps.
Does this camera support AI tracking?
Yes, it is equipped with FoMaKo 3rd-generation AI tracking algorithm for smoother tracking.
Does this camera use belt drive or gear drive?
This camera uses gear drive. Compared with belt drive, gear drive provides more precise preset positions, is less prone to aging, and has a longer service life.
Does this camera support NDI HX3?
Yes, it supports NDI HX3, and you can enable/disable NDI HX3 via the web interface.
What PTZ control protocols does this camera support?
It supports Visca over IP, NDI, ONVIF, Visca, Pelco D/P and UVC PTZ control protocols.
How far can the 4K HDMI signal be transmitted?
With a standard HDMI cable, the maximum transmission distance is 30 meters;
With a FoMaKo fiber optic HDMI cable, it can transmit up to 300 meters with almost no latency.
Does this camera support PoE function?
Yes, it supports PoE+
