FoMaKo FMK20SDI Pro PTZ Camera HDMI, AI Auto-Tracking Gen 3, 20x Optical Zoom, True to Life Colors, PoE, HDMI PTZ Camera for Church Services Worship Education vMix OBS
Pairs well with
In stock! Ships within 1-2 business days.
30-day risk-free trial
3 Year Warranty
Online Support: ivan@fomako.net
High quality & full function
Complimentary shipping & returns
FoMaKo FMK20SDI Pro PTZ Camera HDMI, AI Auto-Tracking Gen 3, 20x Optical Zoom, True to Life Colors, PoE, HDMI PTZ Camera for Church Services Worship Education vMix OBS
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
FoMaKo Live Streaming System
Easy and Plug
3 Years Long Warranty
Professional After-sales Support
FoMaKo

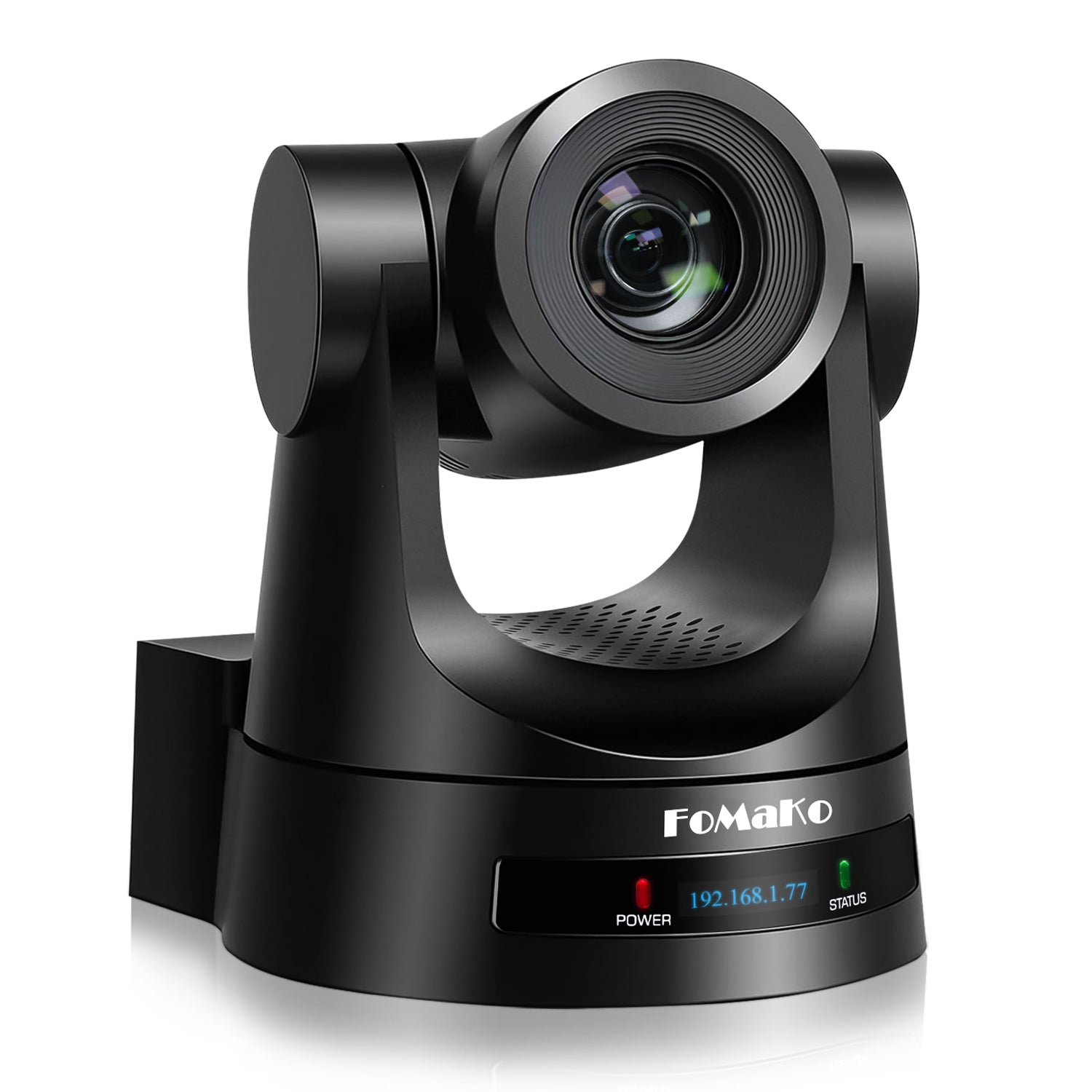

FMK20SDI Pro
High quality 1080P 60fps HDMI 3G-SDI USB IP Streaming PTZ camera with Gen 3 AI Auto Tracking
Focus Your Streaming
The FoMaKo FMK20SDI Pro PTZ camera features 20x optical zoom, multi-interface output (HDMI/3G-SDI/USB/IP/PoE), true-to-life color reproduction, IP display on LCD screen, and is compatible with mainstream live streaming platforms like YouTube, Facebook Live, ideal for professional live streaming scenarios such as church performances.

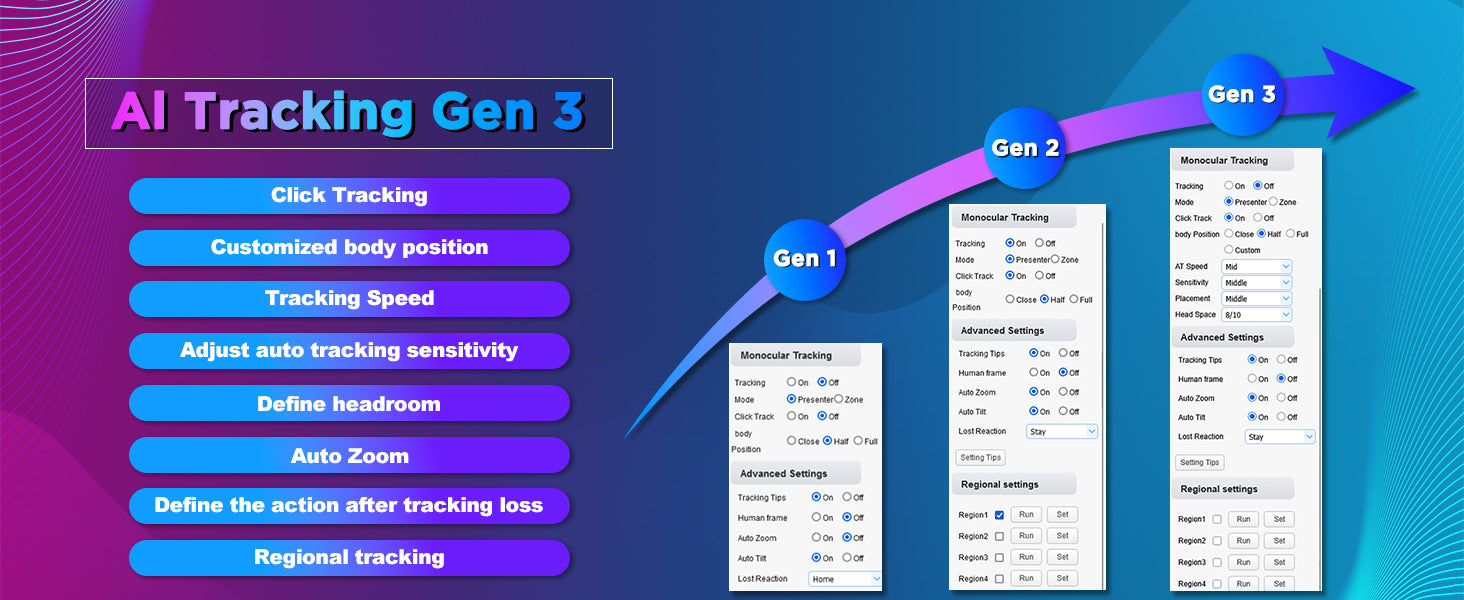

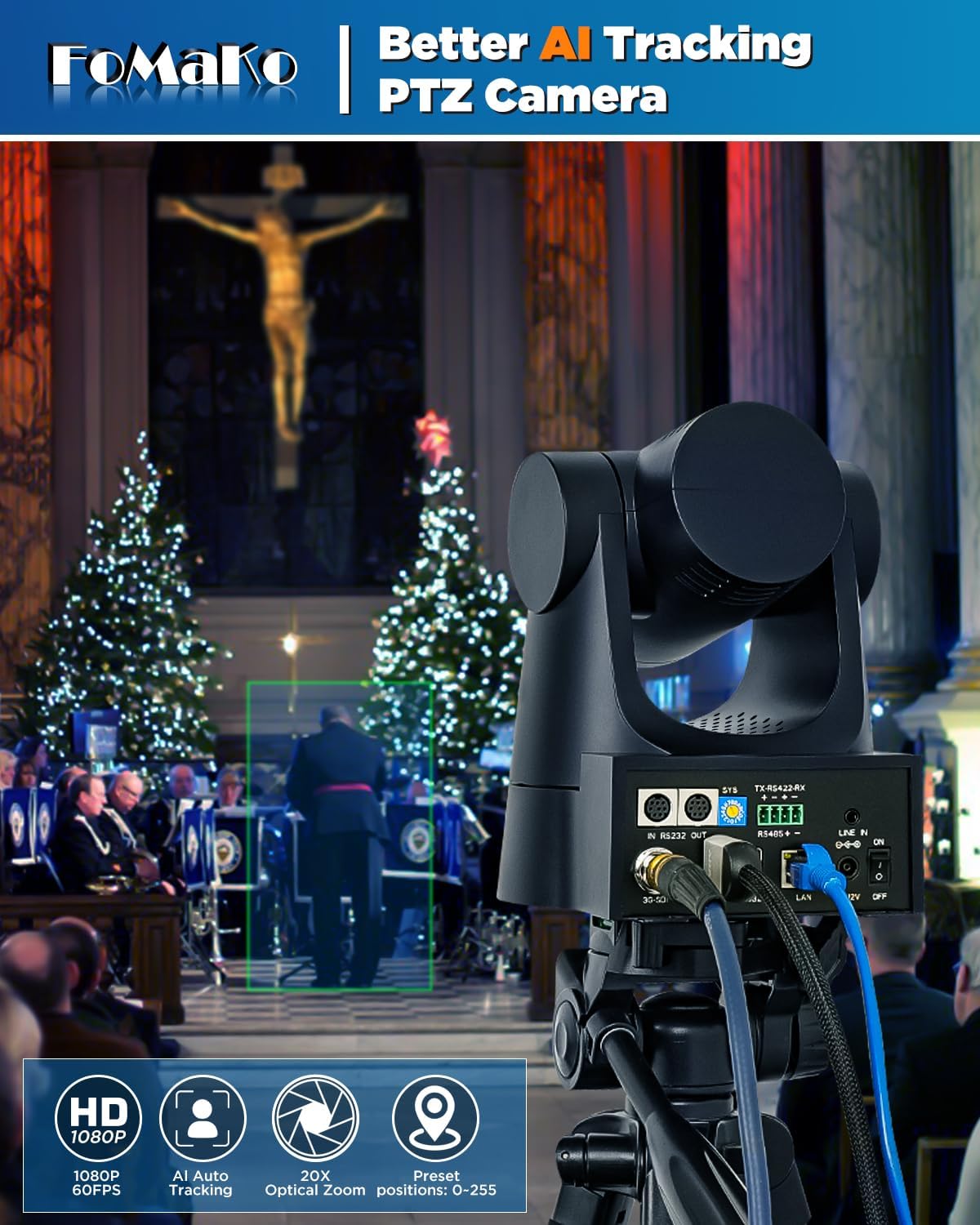

AI Tracking Gen3
FoMaKo FMK20SDI Pro is equipped with 3rd-generation AI human tracking technology, which has been iteratively upgraded on the basis of the first generation, adding rich functions such as click tracking, customized body position, tracking speed adjustment, auto zoom, and regional tracking, allowing flexible configuration of tracking parameters to adapt to more professional shooting scenarios.
3 years Wanrranty
20x Optical Lens
The FoMaKo FMK20SDI Pro PTZ camera features 20X optical zoom, delivering purer colors and clearer details, ideal for professional shooting in scenarios like churches.
POE Support
The FoMaKo FMK20SDI Pro PTZ camera supports PoE (Power over Ethernet) compliant with the 802.3AF 48V standard, enabling power supply, control, and HD video/audio streaming with a single Ethernet cable up to 328ft/100m, greatly simplifying setup.

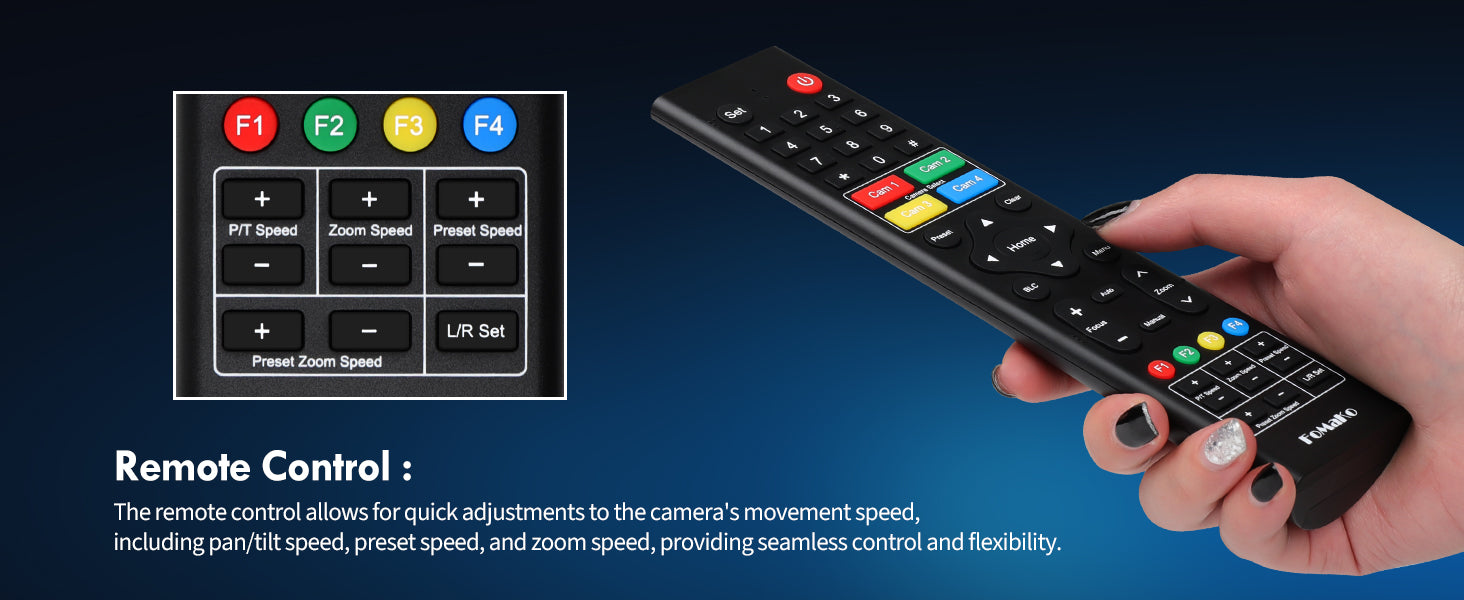

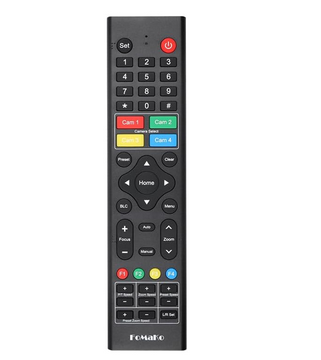

Powerfull Remote Control
The remote control for FoMaKo camera enables quick adjustment of various movement speeds including pan/tilt, preset and zoom, delivering seamless control and operational flexibility.
Multi-camera System
FoMaKo FMK20SDI Pro NDI PTZ cameras enable affordable multi-camera setups, controllable via a unified joystick console, compatible with mainstream live streaming software like OBS, Zoom, YouTube, ideal for professional live broadcasts in scenarios such as churches.

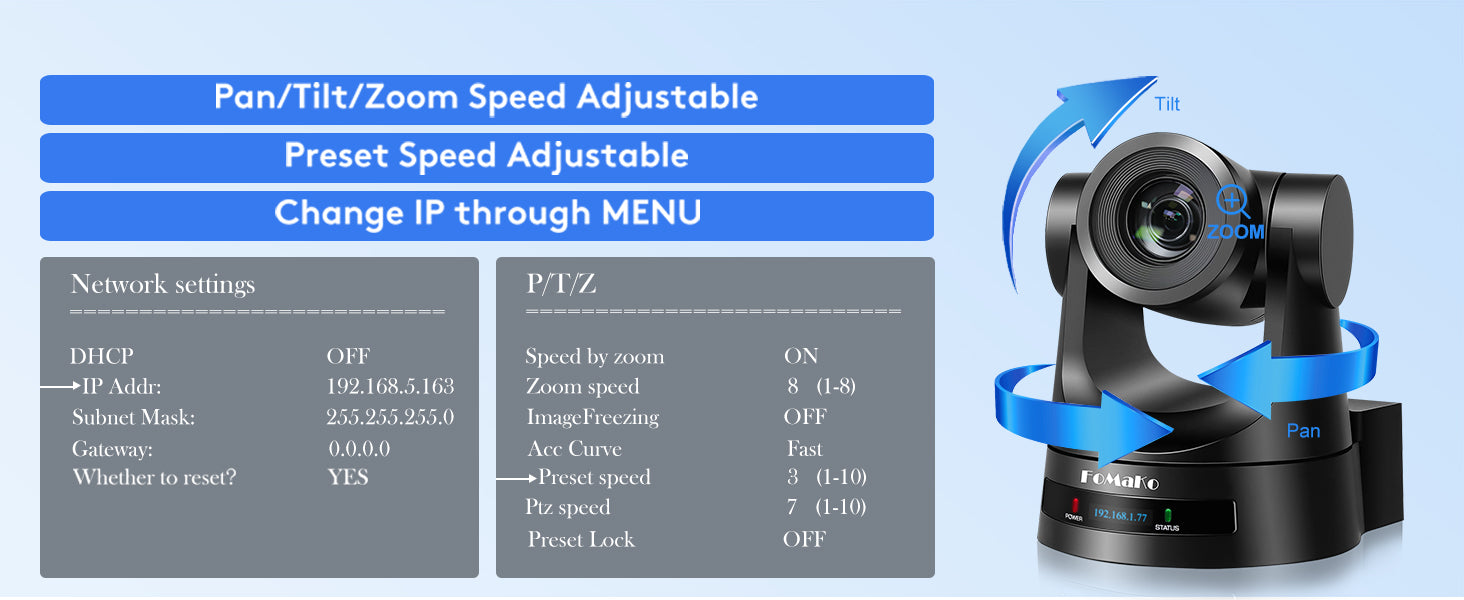

Easy Operation
The FoMaKo FMK20SDI Pro PTZ camera features adjustable pan/tilt/zoom and preset speeds, and allows direct IP address modification via the on-screen menu, offering flexible network and motion parameter configuration.
What's in the box
Comes with remote control, user manual, wall mount, RS232 Cable, USB 3.0 Cable, screw accessories and Power adapter with US/EU/AU/UK Plug
Tech Specs
Description
- 【 FoMaKo PTZ Camera HDMI with 20x Optical Zoom 】. AI Auto Tracking 20x PoE camera with LCD Screen Simultaneous 3G-SDI IP USB HDMI PTZ Camera, IP Live Streaming Camera with HDMI, PoE Supports, Suitable for Church live service, House of worship, Education, Teaching Broadcast, Conference, Esports, Events etc. PoE supported. *Note: NDI Upgradeable, We can help to upgrade it to an NDI camera if required.
- 【 True to Life Colors and pretty picture quality 】. PTZ Camera 20x Optical Zoom HD 1080p with rich video formats 1080P60/50, 1080P30/25, 720P60/50, 720P30/25. Supports H.264/H.265 encoding which makes motion video more fluent and clear under low bandwidth conditions. By adjusting the PTZ speed=1 and preset speed=1, to achieve slow,smooth and consistently high-definition image quality.
- 【 Gear transmission structure 】. Ensures more accurate positioning of preset. More reliable and durable than other products in the market. We can ensure a longer service life, increase equipment service life by 50%, and compared to competing products using Belt structure, We use gear structure,our PTZ operation accuracy is higher, and the accuracy of preset positions is also higher.
- 【 Advanced AI Auto-Tracking Gen 3 Version 】. FoMaKo third-generation AI Tracking enables more customized tracking features, such as you can adjust the tracking modes, tracking sensitivity, figure size, Click Tracking to switch tracking target, AI-Track Speed, Horizontal tracking only,character position,lost target action, etc. simply press F2 on the remote control to turn on automatic tracking and Press F4 to switch tracking target.
- 【 3-Year Limited Warranty 】 - Shop with confidence. 30-Day No-Questions-Asked Money-Back Guarantee. Risk-free purchase. Free Online Training - Get started easily. 24/7 Expert Assistance and - Responses within 24 hours (please include your Order ID). If necessary, we can provide remote assistance in setting up. Enjoy our lifetime customer technical support. Your satisfaction is our priority, we have got you covered!
- 【 What's in the box 】.FoMaKo AI Tracking PTZ Camera 20x optical zoom, IR Remote Controller, Wall Mount, Ceiling Bracket, USB Cable, Power Adapter 12V 2A, User Manual. Tips: Compared to our competitors, our Auto-focus speed is much faster, FoMaKo PTZ camera maintains clear HD image both during movement and zoom in/out zooming.
- 【 Easy to Use 】.Default DHCP enabled,and LCD shows IP address and video resulation, more easy to set up FoMaKo PTZ Camera, preview and control this PTZ Camera from web browser (Default original password is admin). Built-in Gravity Sensor. Support Desktop, Tripod mounting, Wall mounting and Ceiling mounting.Pan,Tilt,Zoom speeds and preset speed can be controlled through MENU-PTZ and by directly pressing the speed zone at the bottom of the remote control.
FMK20SDI Pro Features
▶ 1/2.8 inch high quality CMOS sensor
Equipped with a 1/2.8-inch high-quality CMOS sensor, this camera effectively suppresses both high-light and low-light noise. It supports a maximum resolution of 1920×1080 and a frame rate of up to 60fps, delivering clear and smooth video images.
▶ 20x Optical Zoom Lens
Featuring a 20x optical zoom lens, it can clearly capture both wide panoramic scenes and fine details, providing users with an immersive and rich video experience.
▶ Multiple Video Output Interfaces
It supports multiple video output interfaces including HDMI, SDI, LAN, and USB3.0. It can simultaneously output audio and video signals through HDMI, SDI, and LAN. The SDI interface supports video transmission over a distance of up to 100 meters with a resolution of 1080P and a frame rate of 60fps.
▶ Multiple Audio/Video Compression Standards
It supports H.264 and H.265 video compression standards, with a maximum resolution of 1920×1080 and a frame rate of 60fps. For audio compression, it supports AAC format with a sampling frequency of 48000Hz.
▶ Multiple Network Protocol
It supports multiple network protocols such as ONVIF, GB28181, RTSP, RTMP, VISCA OVER IP, IP VISCA, RTMPS, SRT. It supports RTMP push mode, making it easy to connect to streaming servers (Wowza, FMS). It also supports RTP multicast mode and the network full-command VISCA control protocol.
▶ Powerful AI Tracking
With a built-in high-speed processor and advanced image processing and analysis algorithms, users can choose real-time tracking or regional tracking according to the usage environment. They can click on the person target box on the webpage to switch tracking targets.
▶ Multiple Control Protocol
It supports VISCA, ONVIF, PELCO-D, and PELCO-P control protocols, and can automatically identify the protocols.
▶ Built-in Gravity Sensor
It supports PTZ auto-flip function, which facilitates the installation of the camera.
▶ IR Remote Control & LCD display
Users can control the camera using an IR remote control and also perform menu settings by connecting HDMI and SDI to display devices. (Note: LAN connection does not support menu settings via IR remote control.) The OLED display can show the status and parameters of the camera, allowing users to view and adjust them conveniently. It can also display real-time information such as the camera's IP address, resolution, and frame rate, making it easy to monitor and control.
▶ Multiple Application
It is suitable for various application scenarios such as online education, lecture capture, webcasting, video conferencing, and telemedicine.
Camera Parameters
Video Resolution：HDMI/3GSDI:1080P60、1080P50、1080P30、1080P25、720P60、720P50
Sensor：1/2.8 inch high quality HD CMOS sensor
Lens：20X, f=5.1-90.5mm, F1.8-F2.9
Digital Zoom：16X(1920x1080)
Minimum Illuminance：0.5Lux(F1.8,AGC ON)
Shutter：Auto/Manual(1/60s - 1/10000s)
White Balance：Auto/Manual/One-push/VAR(2400K-7100K)
Backlight Compensation：Support
Digital Noise Reduction：2D & 3D DNR
Video S/N：>50dB
View Angle：3.5°(N) 60°(W)
Horizontal Rotation Range：±170°
Vertical Rotation Range：-30° - +90°
Pan Speed Range：1.4°/s - 40°/s
Tilt Speed Range：2.9°/s - 30°/s
H & V Flip：Support
Image Freeze：Support
Number of Preset：255
Preset Accuracy：±0.
Network Spec
▶ Video Compression：LAN: H.264, H.265；USB3.0: MJPG, H.264, H.265, YUY2, NV12
▶ Video Stream：Main Stream, Sub Stream
▶ Main Stream Resolution：1920×1080, 1280×720, 640×480
▶ Sub Stream Resolution：1280×720, 640×480, 640×360, 320×240, 320×180
▶ Video Bit Rate：64Kbps - 40960Kbps
▶ Bit Rate Type：CBR, VBR
▶ Frame Rate：25Hz: 1fps - 25fps; 30Hz: 1fps - 30fps; 50Hz: 1fps - 50fps; 60Hz: 1fps - 60fps
▶ Audio Compression：AAC
▶ Audio Bit Rate：32Kbps, 48Kbps, 64Kbps, 96Kbps, 128Kbps
▶ Support Protocols：HTTP, RTSP, RTMP, ONVIF, SRT, GB/T28181; Support network VISCA control protocols, remote upgrade, remote restart, and remote reset.

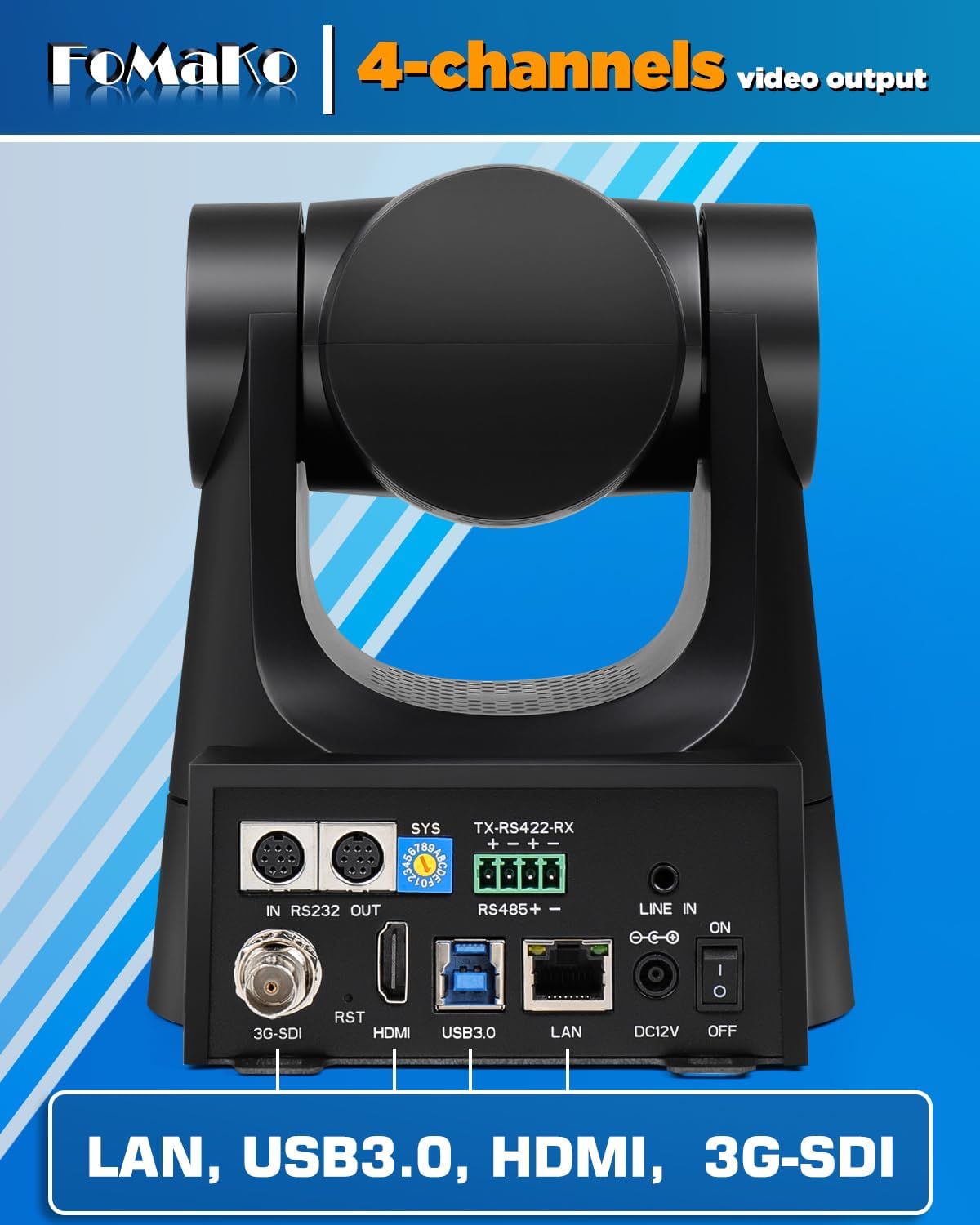

Input/Output Interface
HD Output：Video Interfaces: HDMI、SDI、LAN(POE)、USB3.0、A-IN、RS232-IN、RS232-OUT、RS422(compatible with RS485)、DC12V Power Supply、Rotary Dip Switch、Power Switch；Video Output: HDMI, SDI, LAN, USB3.0
Network Interface：LAN(POE)
Audio Interface：Double track 3.5mm linear input
USB Interface：1 x USB3.0
Communication Interface：RS232-IN、RS232-OUT、RS422(compatible with RS485)
Restore Button：Support
Power Interface：HEC 3800 outlet (DC12V)

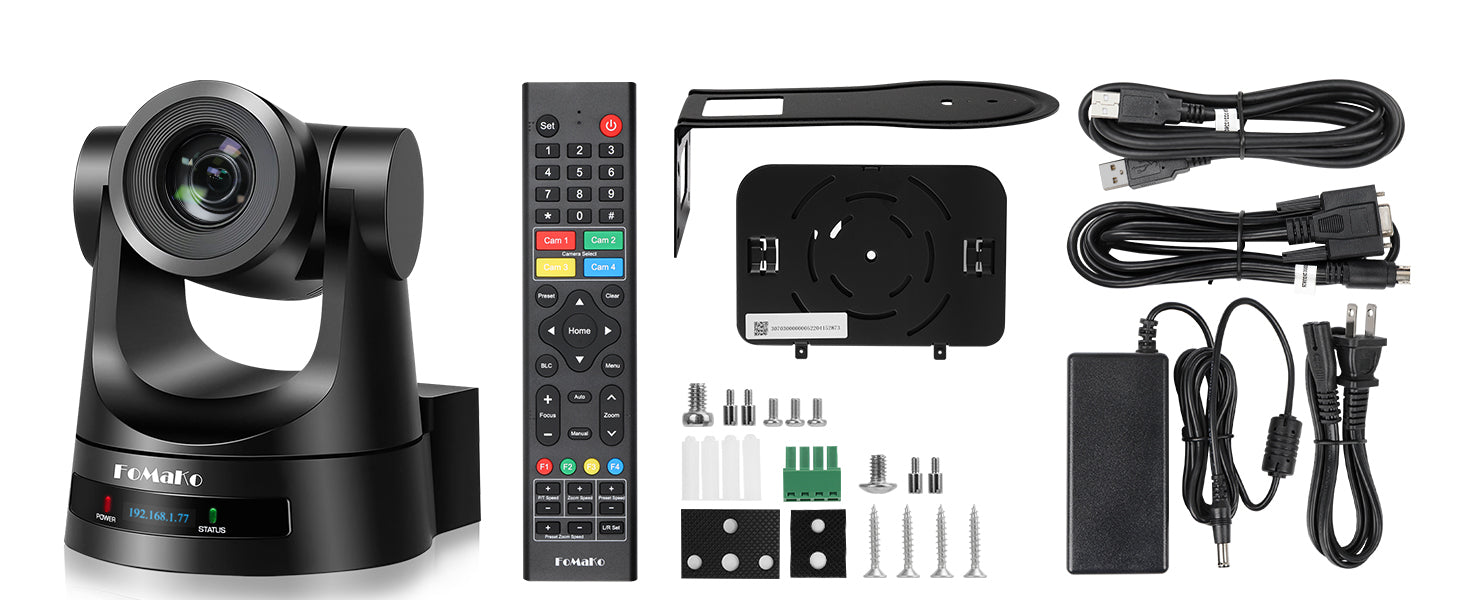

Included in the Box
PTZ Camera
Remote Control

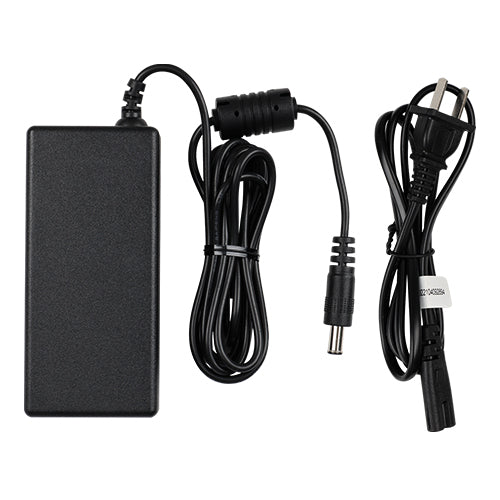

Power Adapter
Wall Mount

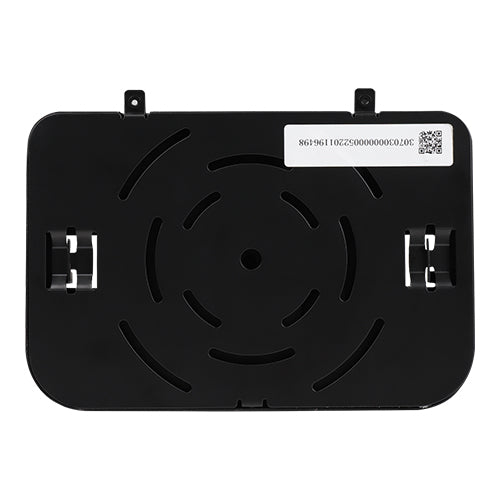

Ceiling Mount

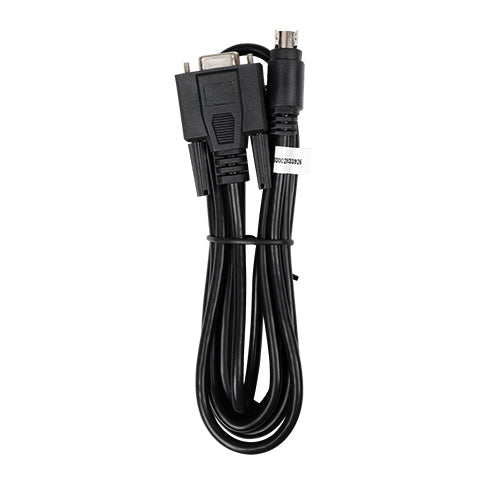

RS232 Cable

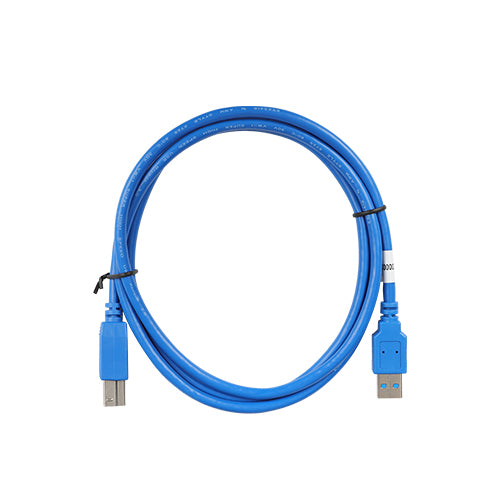

USB 3.0 Cable
User Manual
FAQs
Please read our FAQs page to find out more.
What is the maximum frame rate of this camera?
It supports up to 60fps.
Which signal sources support 4K 60fps?
No, this model doesn't support 4K.
If you need 4K cameras, please check our K20UH or K600N.
Does this camera support AI tracking?
Yes, it is equipped with FoMaKo 3rd-generation AI tracking algorithm for smoother tracking.
Does this camera use belt drive or gear drive?
This camera uses gear drive. Compared with belt drive, gear drive provides more precise preset positions, is less prone to aging, and has a longer service life.
What PTZ control protocols does this camera support?
It supports Visca over IP, NDI, ONVIF, Visca, Pelco D/P and UVC PTZ control protocols.
How far can the HDMI signal be transmitted?
With a standard HDMI cable, the maximum transmission distance is 30 meters;
With a FoMaKo fiber optic HDMI cable, it can transmit up to 300 meters with almost no latency.
Does this camera support PoE function?
Yes, it supports 48V 802.3af PoE
Does this camera come with G-Sensor?
Yes, it features a built-in G-Sensor that automatically flips the image to the correct orientation, whether installed upright or ceiling-mounted.
Is the PTZ speed of the camera adjustable?
Yes. You can precisely adjust the PTZ speed via various methods including the camera's on-screen menu, remote control shortcut keys, web interface, and a professional PTZ controller.
