FoMaKo KC608N PTZ Camera Controller, Quad-Screen 4K Multi-Channel Preview, 5.5" Capacitive Touchscreen, 4D Hall Joystick, PoE, VISCA/Pelco/NDI HX, for Church, Worship, Studio, Education, Events
Pairs well with
In stock! Ships within 1-2 business days.
30-day risk-free trial
3 Year Warranty
Online Support: ivan@fomako.net
High quality & full function
Complimentary shipping & returns
FoMaKo KC608N PTZ Camera Controller, Quad-Screen 4K Multi-Channel Preview, 5.5" Capacitive Touchscreen, 4D Hall Joystick, PoE, VISCA/Pelco/NDI HX, for Church, Worship, Studio, Education, Events
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
FoMaKo Live Streaming System
Easy and Plug
3 Years Long Warranty
Professional After-sales Support
FoMaKo
KC608N
The KC608N is FoMaKo’s newly launched PTZ controller equipped with a 4-screen preview function. It features high-precision Hall joysticks for smoother, more intuitive camera control.

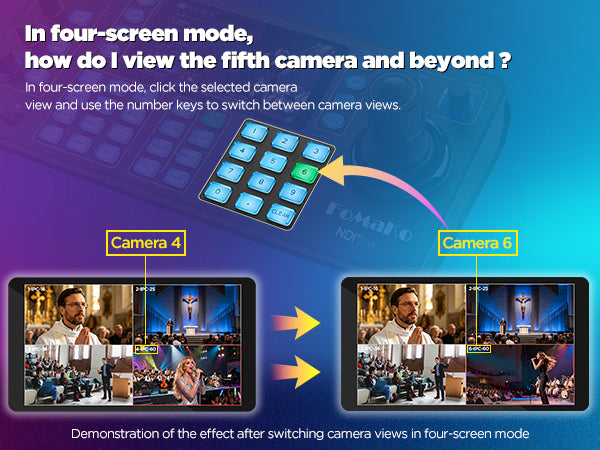

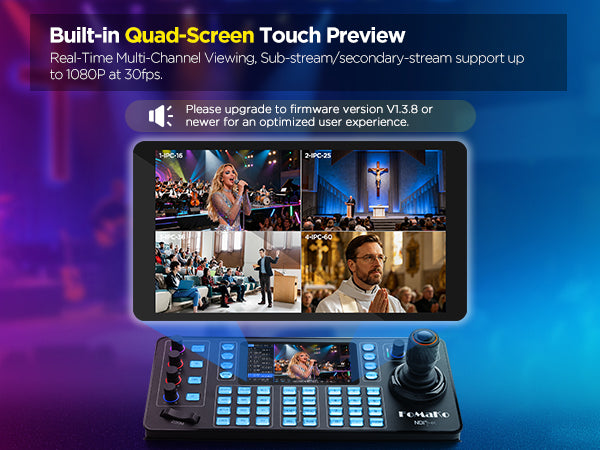

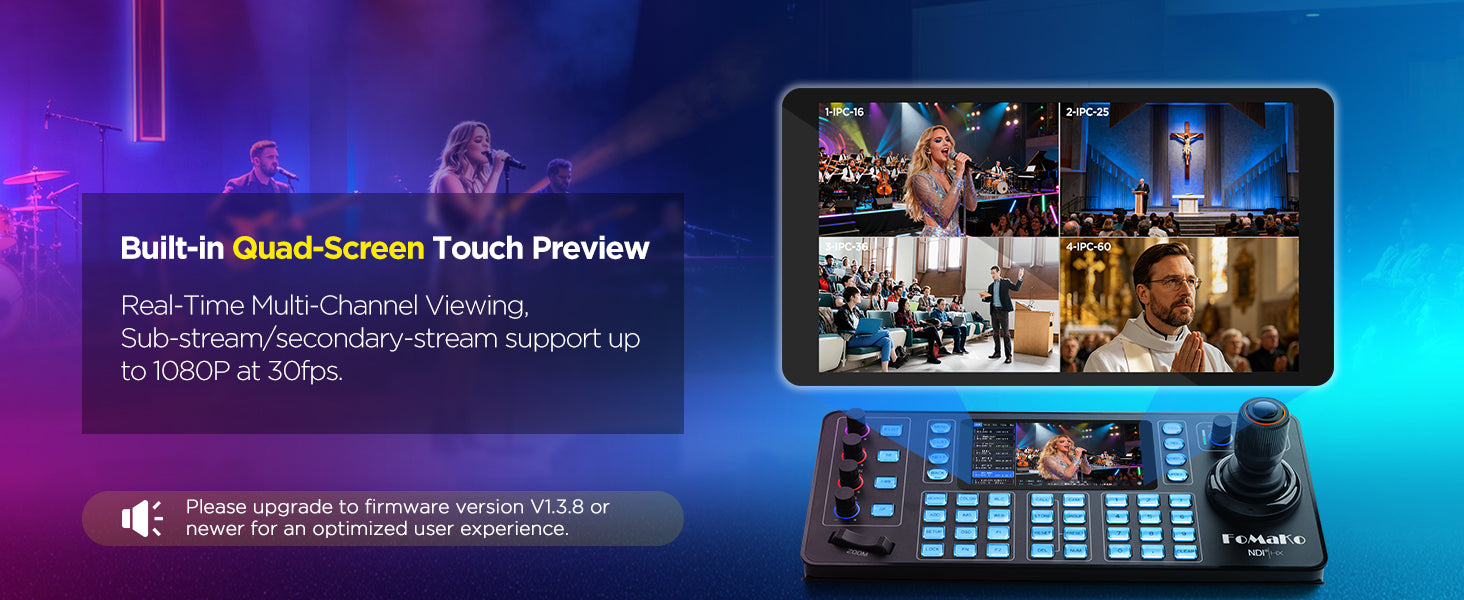

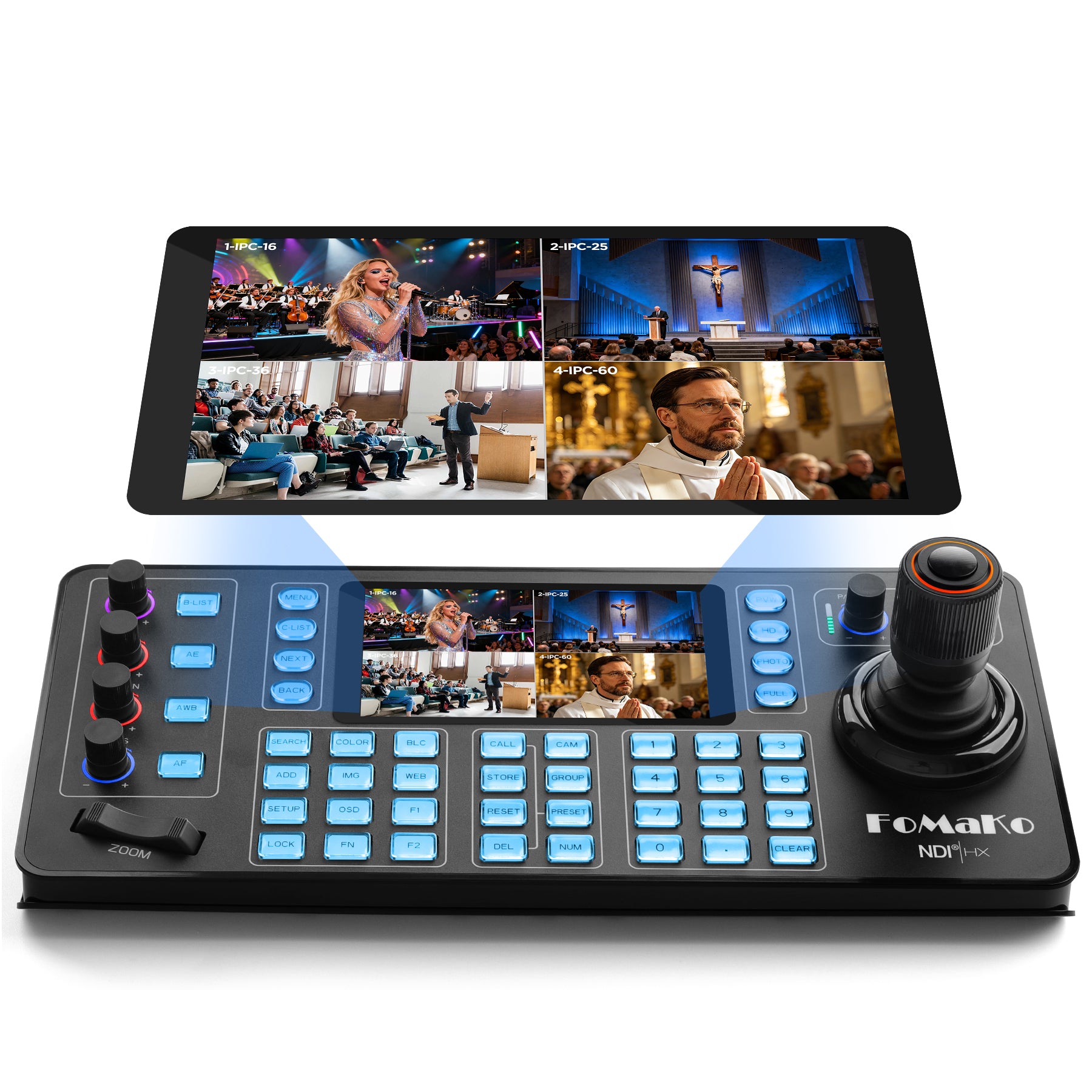

Quad-Screen Touch Preview
FoMaKo KC608N PTZ Controller features built-in 4-way touch multi-view for real-time 1080P 30fps sub-stream monitoring, ideal for live streaming and church events.
3 years Wanrranty
Multi-Cameras Control
More professional and convenient control for multiple PTZ cameras.

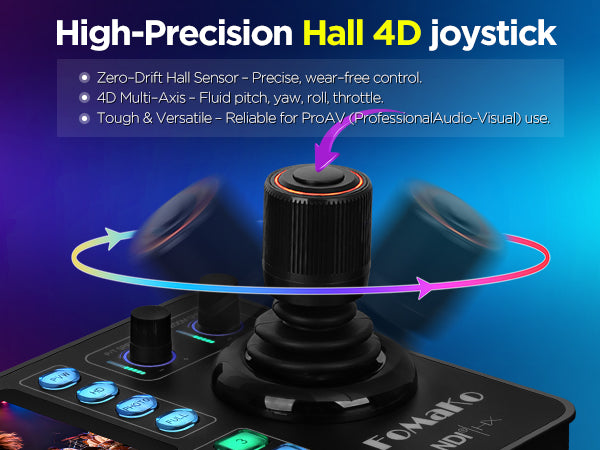

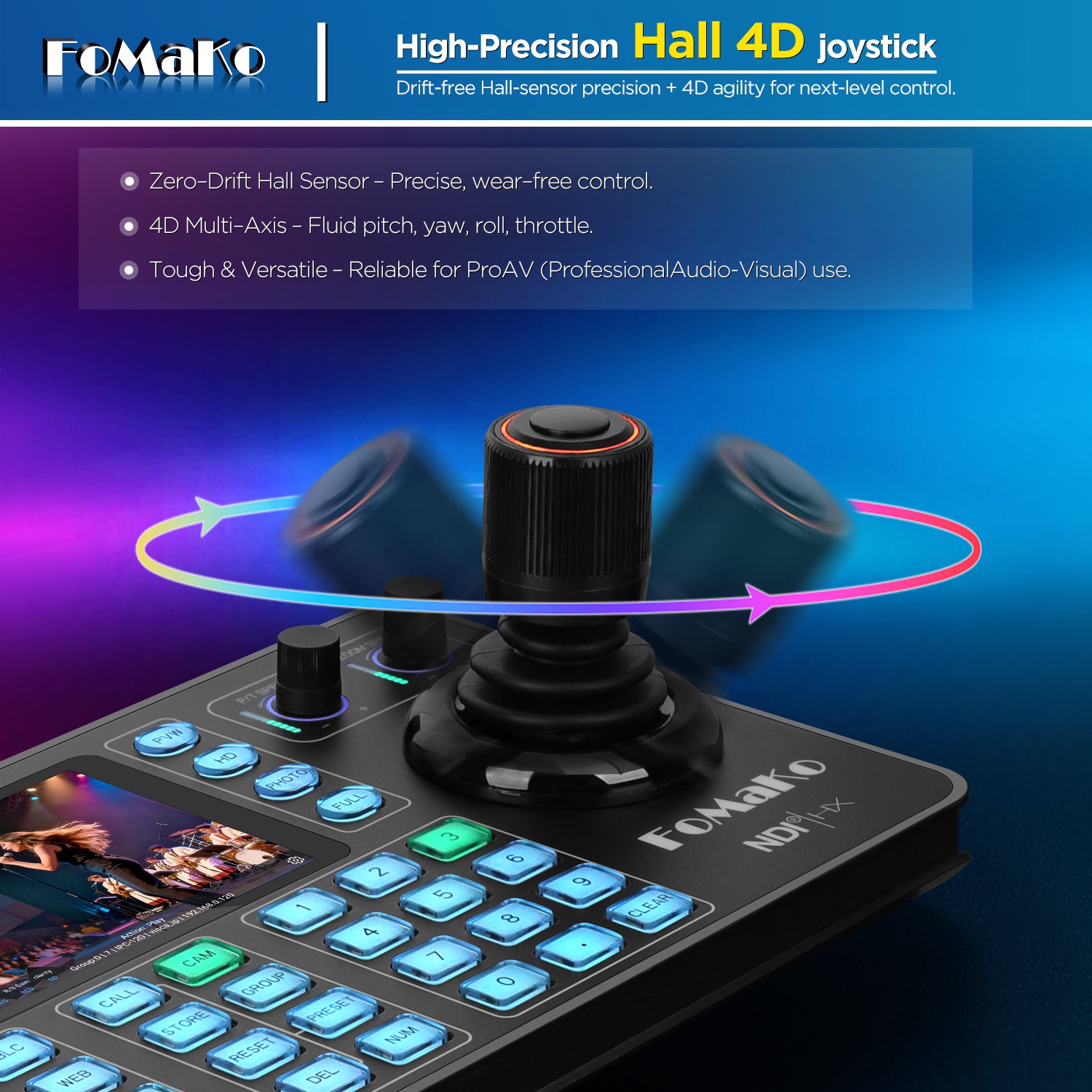

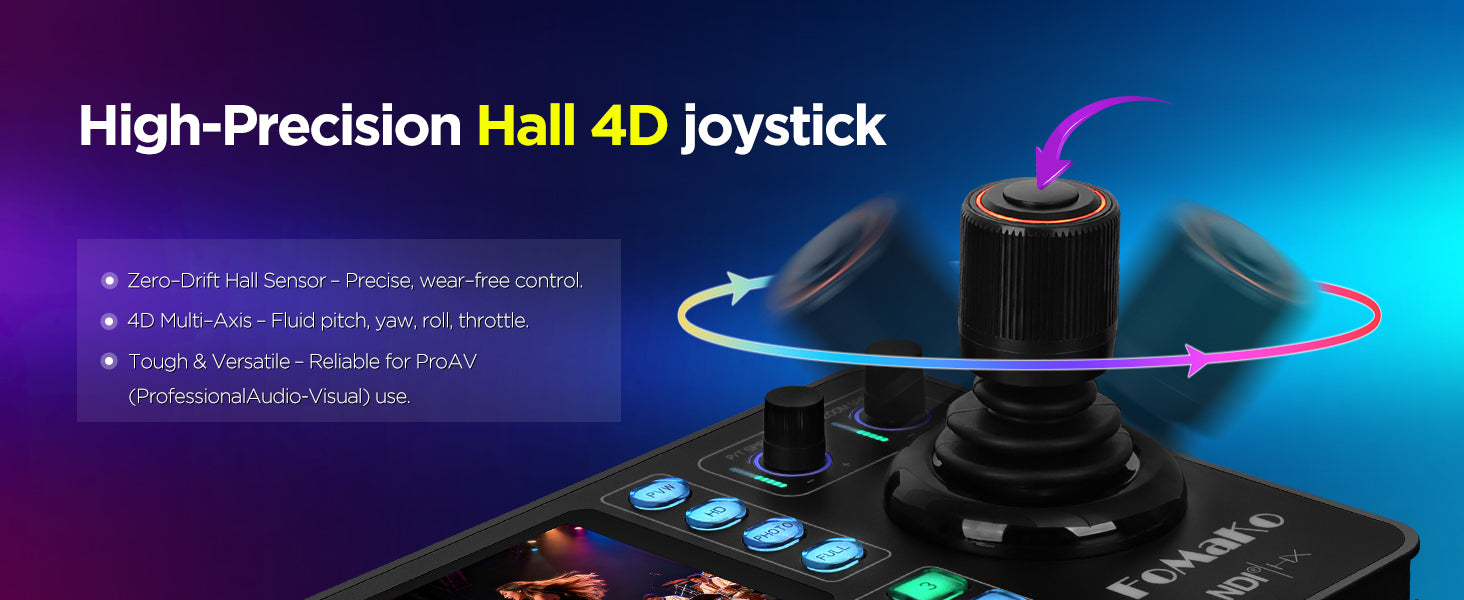

Hall 4D Joystick
FoMaKo KC608N features a zero-drift 4D Hall joystick, offering precise, long-lasting multi-axis camera control for professional AV workflows

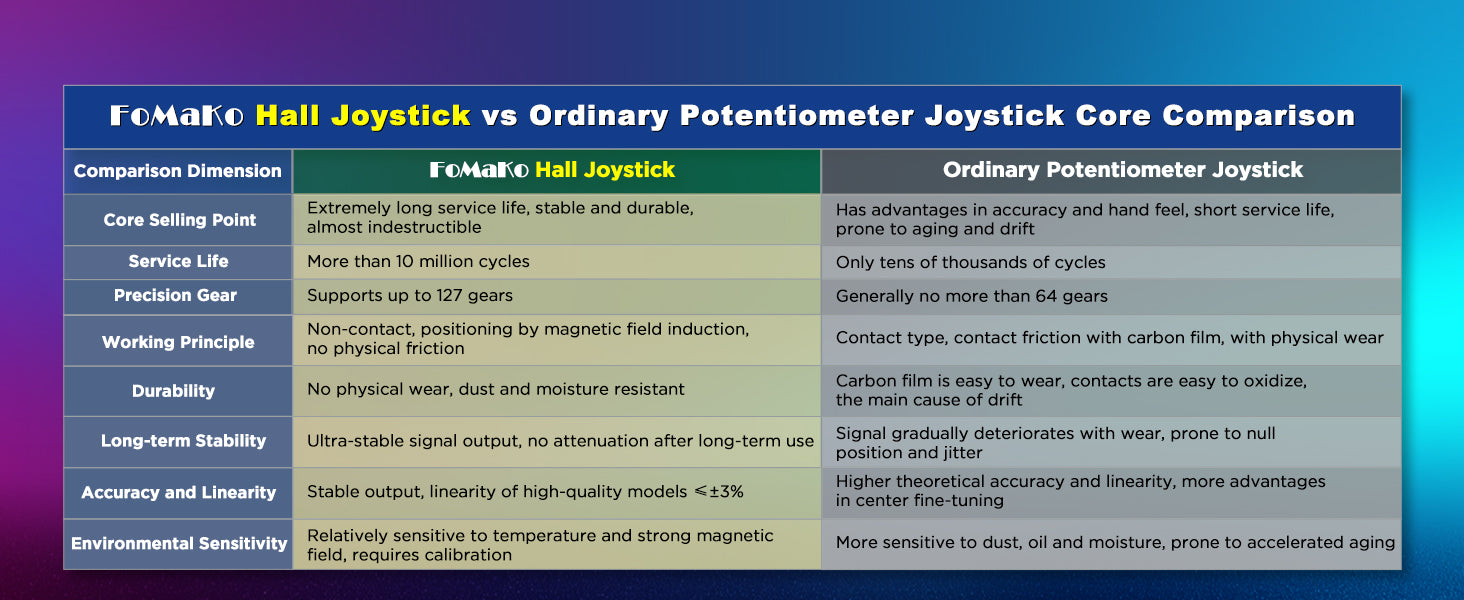

High Performance Hall Joystick
This comparison chart contrasts FoMaKo’s non-contact Hall joystick with regular contact-type potentiometer joysticks. The Hall joystick delivers an ultra-long lifespan of over 10 million operations, 127 precision adjustment levels, friction-free magnetic induction positioning, strong dust/moisture resistance, and consistent long-term signal stability without drift. In contrast, ordinary potentiometer joysticks only last tens of thousands of cycles, suffer carbon film wear and oxidation, and develop signal jitter after prolonged use, despite minor advantages in theoretical center fine-tuning accuracy.

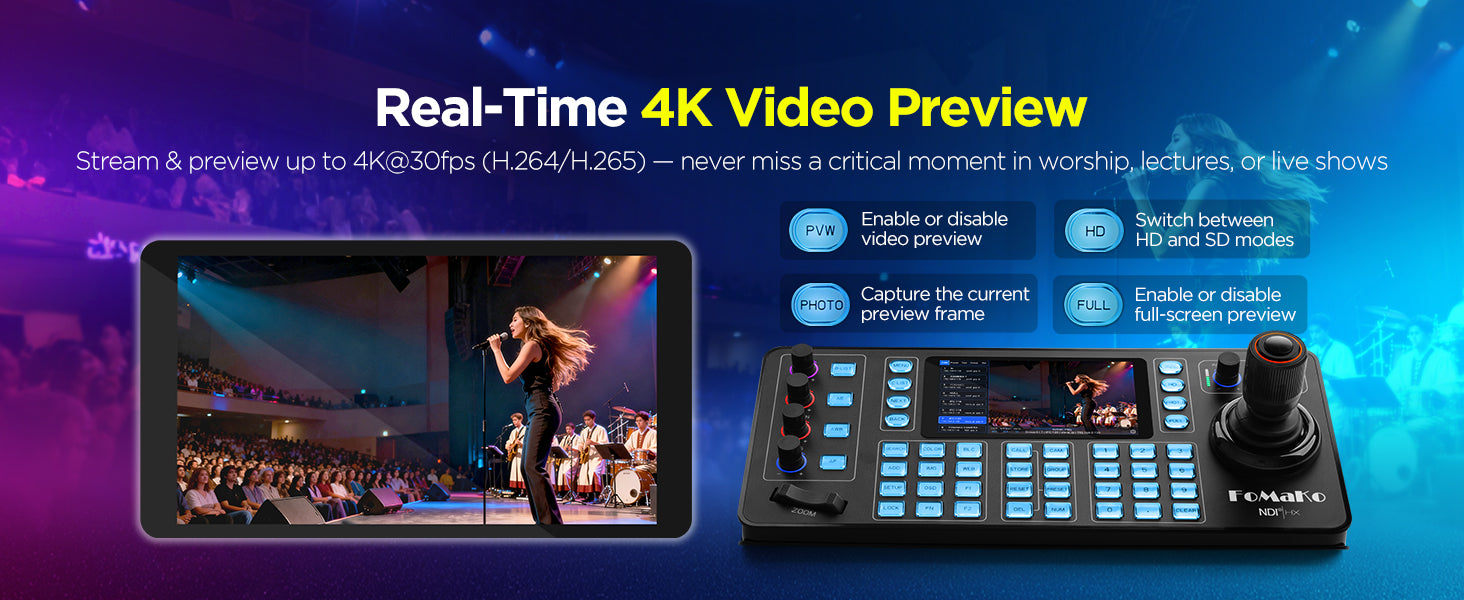

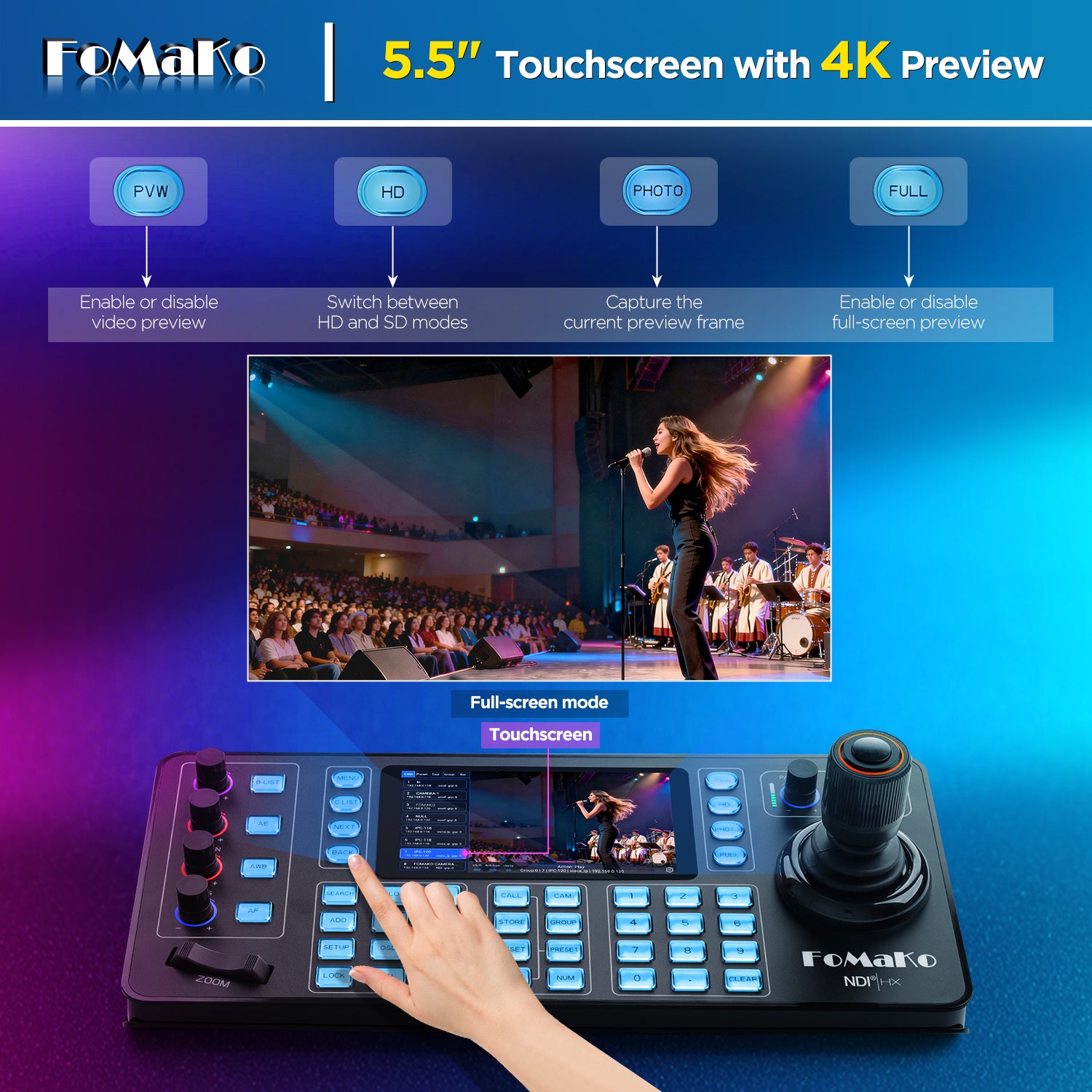

4K Video Preview
The FoMaKo KC608N PTZ Controller supports real-time streaming and preview up to 4K@30fps with H.264/H.265 encoding, perfect for live events, worship and lectures. Its dedicated PVW, PHOTO, HD, FULL buttons let users toggle preview display, capture frames, switch HD/SD signals and activate full-screen view for convenient on-site live production monitoring.

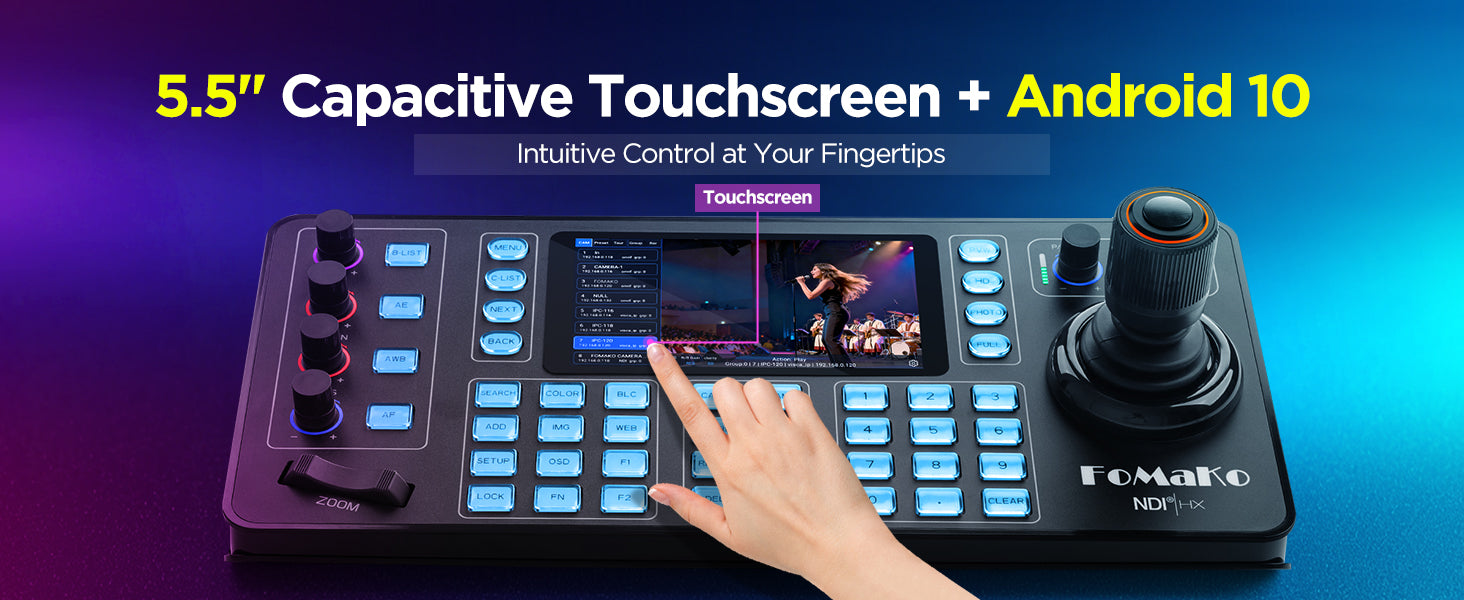

5.5" Touch Screen
FoMaKo KC608N PTZ Controller comes with a built-in 5.5" capacitive touchscreen running Android 10 system, enabling direct, intuitive fingertip operation for convenient camera preview and parameter adjustment during live production.

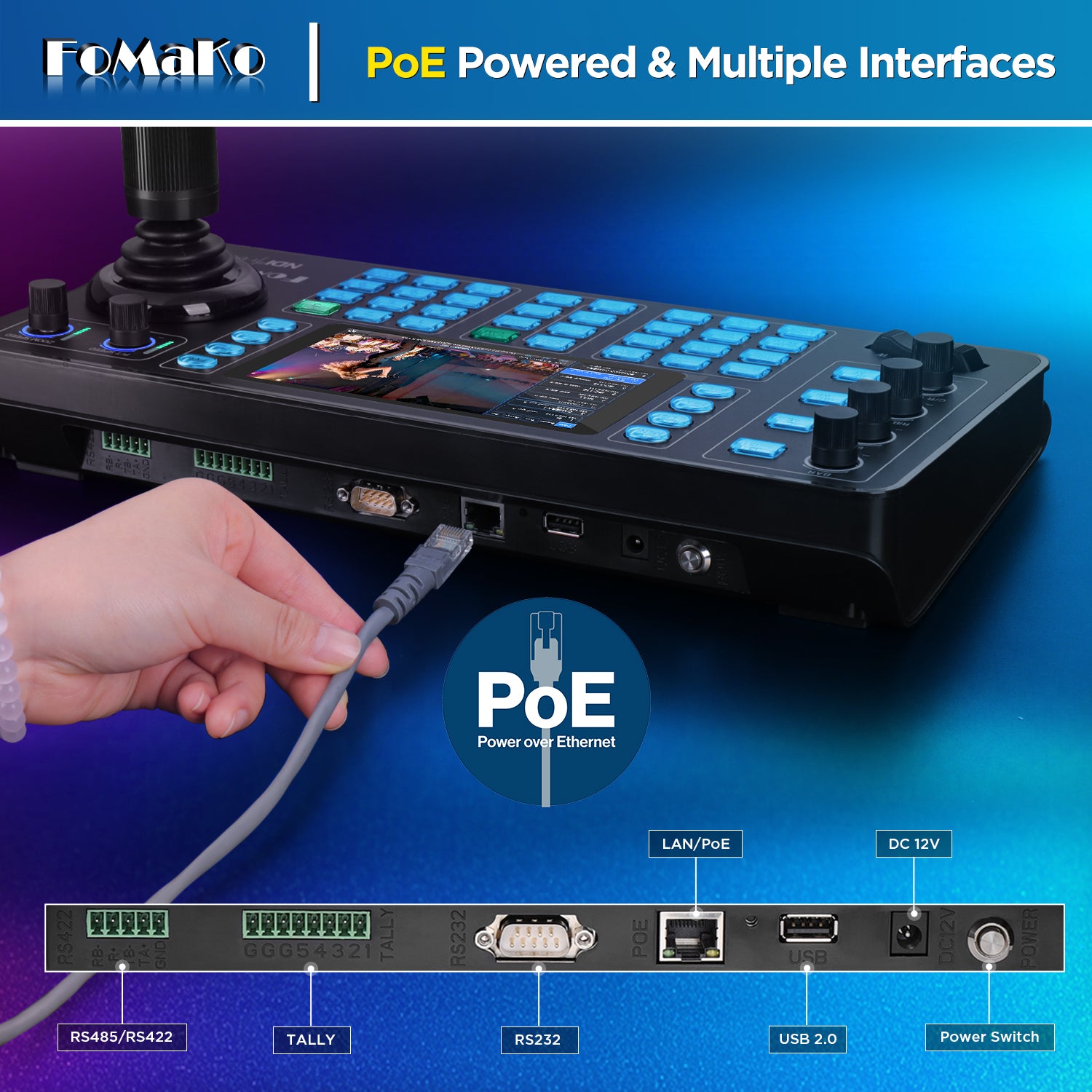

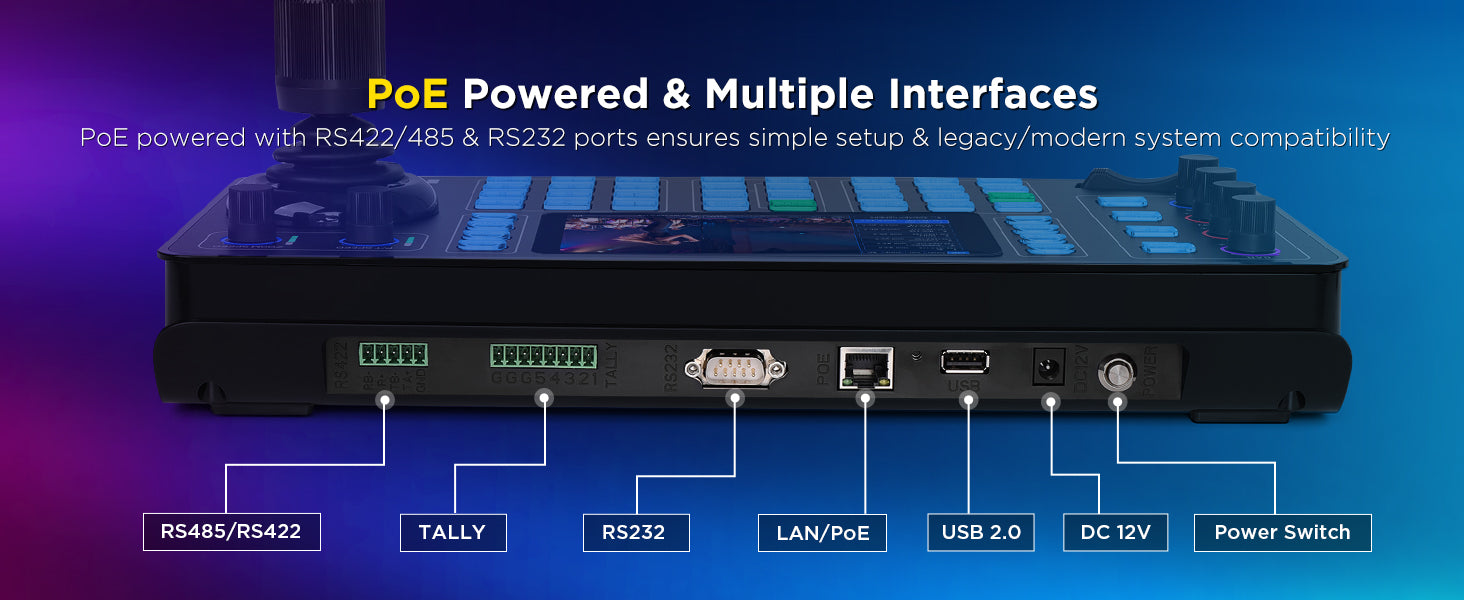

Multiple Interfaces
FoMaKo KC608N PTZ Controller supports PoE power supply and equips comprehensive rear ports: RS485/422, TALLY, RS232, LAN/PoE, USB 2.0, DC 12V and power switch. It simplifies wiring setup and achieves great compatibility with both modern and traditional professional AV equipment.
Capture Photos
FoMaKo KC608N PTZ Controller supports PoE power supply and equips comprehensive rear ports: RS485/422, TALLY, RS232, LAN/PoE, USB 2.0, DC 12V and power switch. It simplifies wiring setup and achieves great compatibility with both modern and traditional professional AV equipment.
Tech Specs
Description
- 【Quad-Screen 4K Multi-Channel Preview, 5.5" HD Capacitive Touchscreen & Android 10 】.Enjoy an intuitive, responsive interface with multi-touch control; simplifies PTZ operation and live monitoring for fast, precise adjustments on the go. Sub-stream/secondary-stream support up to 1080P at 30fps.
- 【SHOP WITH CONFIDENCE 】. 30-Day no-hassle return and refund; 1-Year manufacturer warranty with free replacement for quality defects (excludes misuse, accident, water damage, or normal wear); 3-Year optional trade-in program available for upgraded models; Lifetime technical support with 24-hour response; Free setup guidance and remote assistance available with your order ID.
- 【Real-Time 4K Video Preview 】. Stream and preview up to 4K@30fps with H.264/H.265 compression; capture every detail clearly during worship services, lectures, conferences, or live productions.
- 【High-Precision 4D Hall Joystick 】. Deliver smooth, wear-free pan, tilt, zoom, focus, and exposure control; ensures accurate camera movements without drift or noise, ideal for professional setups.

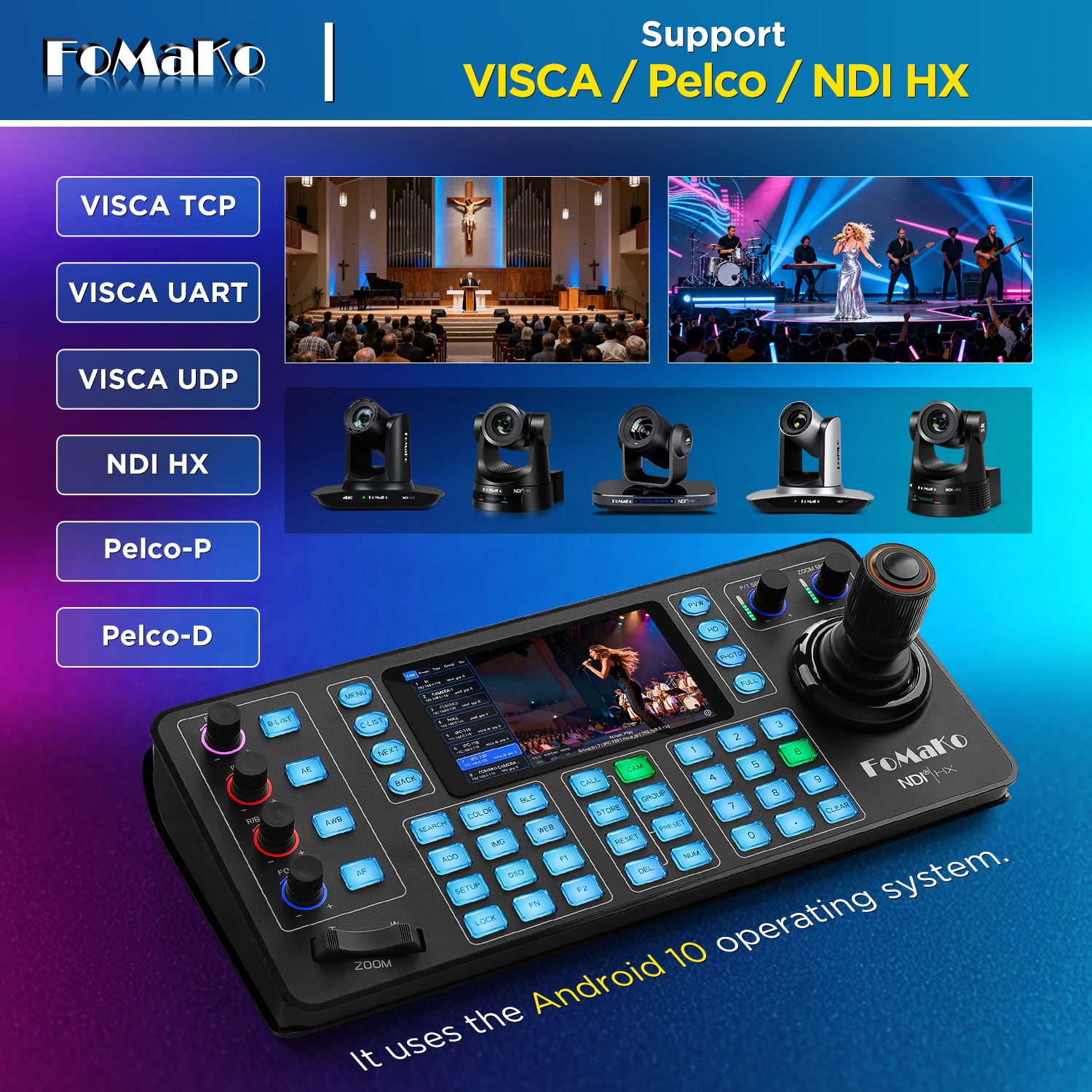

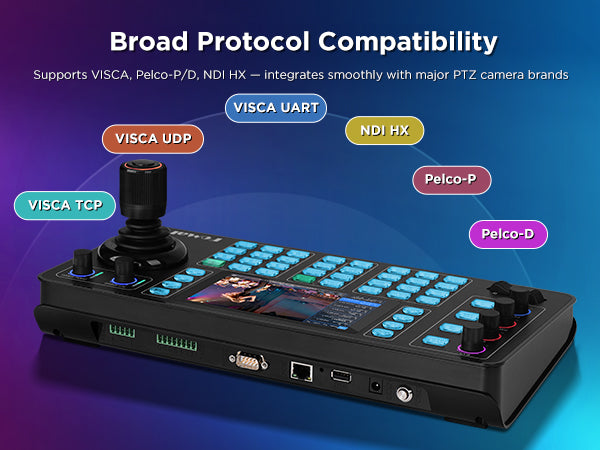

- 【Broad Protocol Compatibility 】. Supports VISCA (TCP/UDP/UART), Pelco-P, Pelco-D, NDI HX, enabling seamless integration with most PTZ cameras from leading brands.

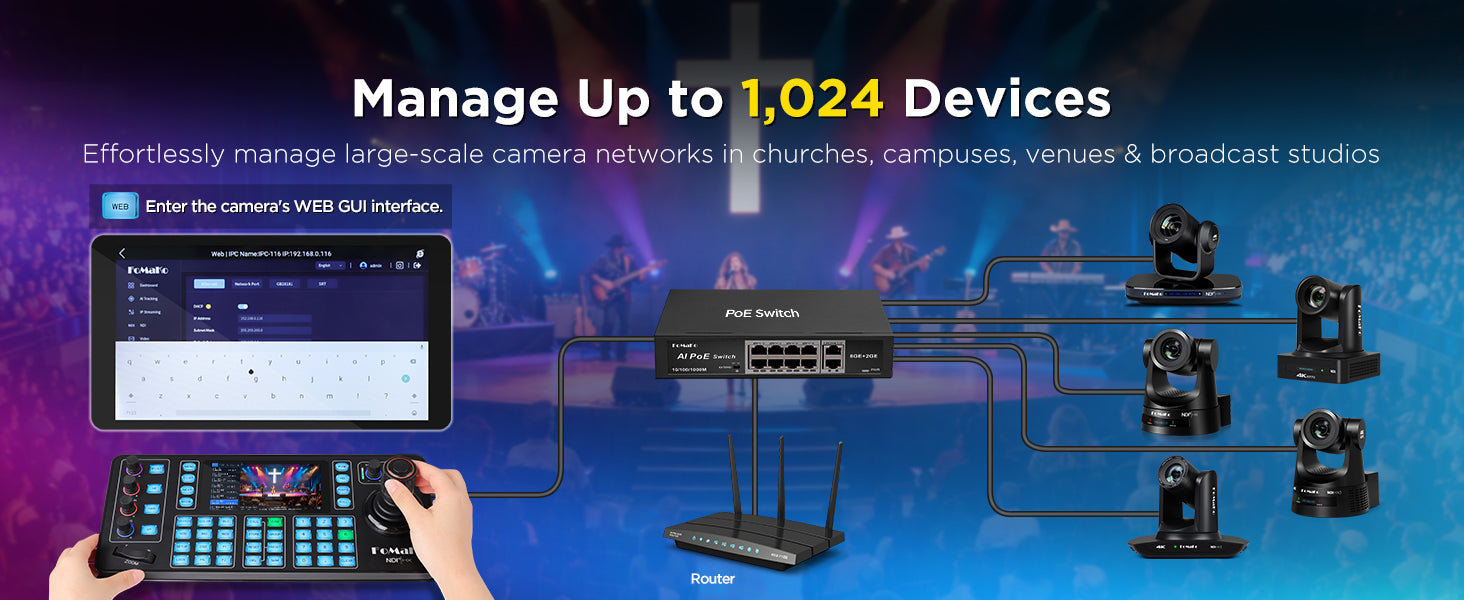

- 【Manage Up to 1,024 Devices 】. Effortlessly control large-scale camera networks in churches, campuses, event venues, or broadcast studios; perfect for multi-camera productions.
- 【 FoMaKo PTZ Bundle is more affordable 】. FoMaKo NDI PTZ controller Compatible with FoMaKo NDI PTZ Cameras and FoMaKo video mixer switcher, Compatible with vMix/OBS and other Live Video Streaming Software, Support Multi-cameras video production for live streaming to YouTube and facebook.Compatible with Mac computers, windows PC, etc. Serach keyword " FoMaKo NDI PTZ Bundle " or " FoMaKo PTZ Bundle " from Amazon for a try.
KC608N Features
▶ 4D Force-Control Joystick with Speed Regulation
Equipped with a 4D force-control joystick, it enables smooth pan, tilt, zoom, and focus control—low force for slow speed, increased force for higher speed—with optional fixed speed settings via system menu for precise operation.
▶ 5.5' inch Capacitive Touchscreen 4K30fps
5.5-inch capacitive touchscreen with 1280x720 resolution supports H.264/H.265 decoding, delivering real-time 4K30fps HD/SD preview via RTSP/NDI HX streams for direct shooting angle monitoring.
▶ Multi-Protocol Compatibility
Compatible with VISCA (TCP/UDP/UART), ONVIF, Pelco-D/P, and NDI HX protocols, with automatic recognition to work seamlessly with most mainstream PTZ cameras, reducing compatibility issues
.▶ Comprehensive Interface Suite
Integrates RJ45 (PoE-powered), RS422/485, RS232, USB 2.0 (HOST/OTG), and 8PIN Tally interfaces, adapting to wired network/serial connections and professional broadcast system integration.
▶ 255 Preset Positions
Supports storage, one-key call, reset, and deletion of 255 preset positions, enabling fast switching between fixed shooting angles to enhance live broadcast and conference control efficiency.
▶ CAM Quick Switch + F1-F10 Customizable FN Buttons
Features "CAM" key for quick camera list expansion and numeric key switching, plus F1-F10 customizable FN buttons (via FN page) to map auto-tracking, exposure adjustment, and other high-frequency functions.
▶ Dual-Color Backlight Silicone Ergonomic Buttons
Adopts high-quality silicone buttons with white/red dual backlight, ensuring clear visibility in low-light environments and a comfortable tactile feedback for long-hour operations.
▶ One-Key Full Panel Lock for Anti-Misoperation
One-key panel lock function disables all physical buttons and the joystick, preventing accidental touches during busy workflows and ensuring stable execution of control commands.
▶ 8PIN Tally Interface
8PIN Tally interface synchronizes with professional broadcast systems, automatically activating Tally lights when switching between 1-7 cameras for enhanced team collaboration.

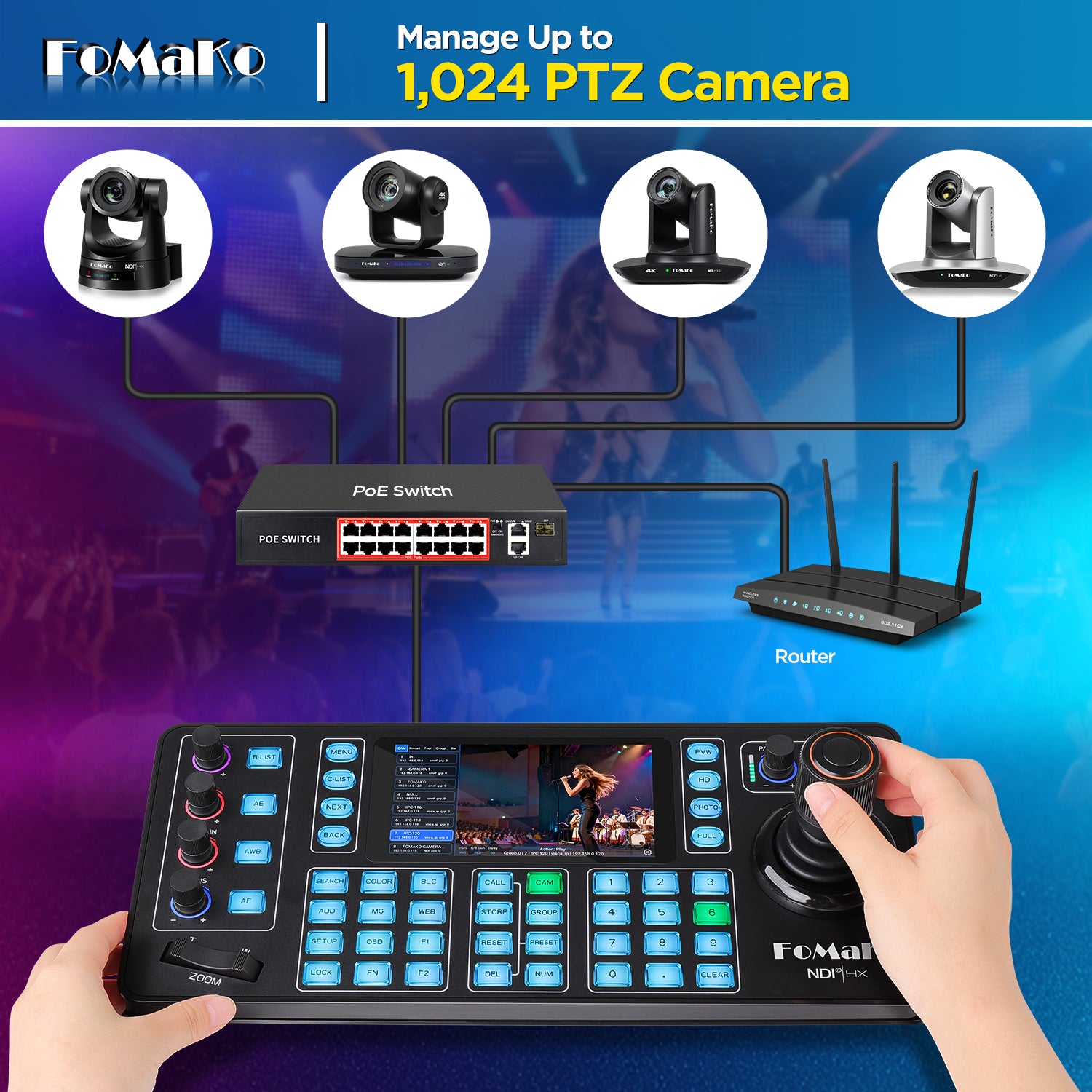

▶ 1024-Camera Capacity
Supports adding up to 1024 cameras via auto-search (protocol-based) or manual input, with IP address matching guidance (first three segments identical) for seamless multi-camera system management.
Parameters
Operating System:
Android 10
Screen Size:
5.5” capacitive touchscreen / resolution 1280x720
Decoding:
Supports H264/H265
Max supported H264/H265: 1x1080p@60fps
Max supported H264/H265: 1x4K@30fps
Protocols:
ONVIF,VISCA-IP,VISCA, Pelco-P, Pelco-D, NDI HX
Power:
Standard 5.5/2.1 power interface, DC 12V2A310%
Interface Ports:
1x RJ45 (POE)
1x RS485/RS422
1x RS232
1x USB-HOST/OTG 2.0
1x TALLY(8PIN)
Control Interface&Protocol
Control Interface：RJ45 (support POE and NDI HX2)、RS - 232、RS - 422/485
IP Control Protocol：Onvif、VISCA Over IP、VISCA TCP、NDI
Serial Port Protocol：VISCA、Pelco D、Pelco P
Power Supply
Input Voltage：12V
Input Current：0.25A
POE：802.3af
Rated Power：1.5W
Included in the Box
PTZ Camera Controller

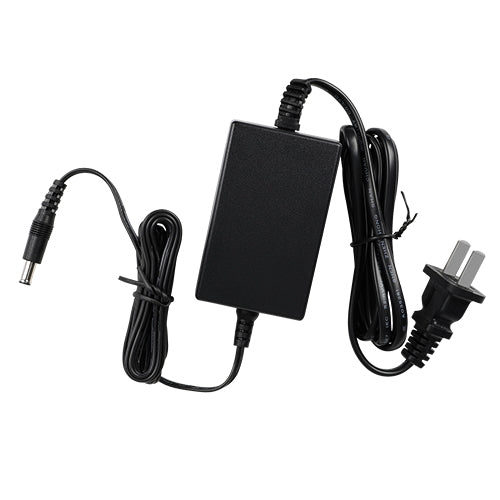

Power Adapter
RS232 Cable
User Manual
FAQs
Please read our FAQs page to find out more.
What PTZ control protocols does this PTZ controller support?
It supports Visca over IP, NDI, ONVIF, Visca, Pelco D/P
How many PTZ cameras can this PTZ controller control at most?
It can control up to 255 PTZ cameras.
Can this device stream live to YouTube?
No, it is only a controller for PTZ cameras and does not support live streaming.If you need live streaming, please check our KC800, KC602 and KC601 Pro models.
Can this PTZ controller adjust the pan/tilt speed of the camera?
Yes, you can control the movement speed of the PTZ camera in two ways: via pressure sensitivity and speed level settings.
Does this it support PoE function?
Yes, it supports PoE
