FoMaKo 5.5 Inch FHD LCD Screen 4-Channel HDMI Live Streaming Switcher 1080p 60FPS USB Video Recording USB3.0 HDMI Video Switcher KC601 Pro
Pairs well with
In stock! Ships within 1-2 business days.
30-day risk-free trial
3 Year Warranty
Online Support: ivan@fomako.net
High quality & full function
Complimentary shipping & returns
FoMaKo 5.5 Inch FHD LCD Screen 4-Channel HDMI Live Streaming Switcher 1080p 60FPS USB Video Recording USB3.0 HDMI Video Switcher KC601 Pro
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
FoMaKo Live Streaming System
Easy and Plug
3 Years Long Warranty
Professional After-sales Support
FoMaKo
KC601 Pro

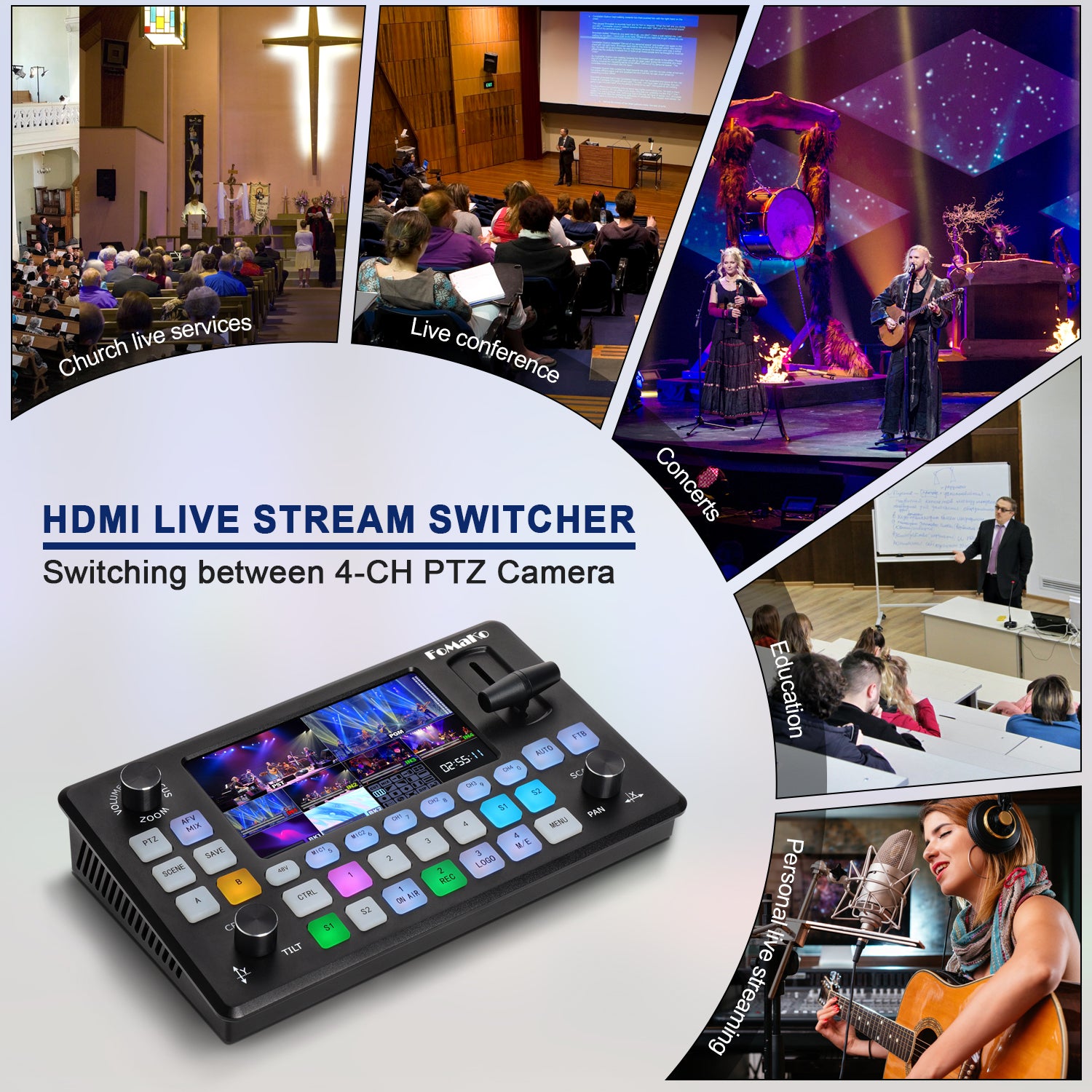

FoMaKo HDMI Switcher integrating encoder, switcher, monitor, and USB recorder. Quad HDMI inputs( max 1080P 60fps, doesn't support 4K ),Perfect for Worship, Weddings/Funerals, Sport,
Events, Corporate, Education, Retail Business and More.
4CH HDMI Video Swither
KC601 Pro Video Mixer Switcher delivers multi-camera live streaming, allowing you to display content from multiple cameras and angles, tailored for church live production.
3 years Wanrranty

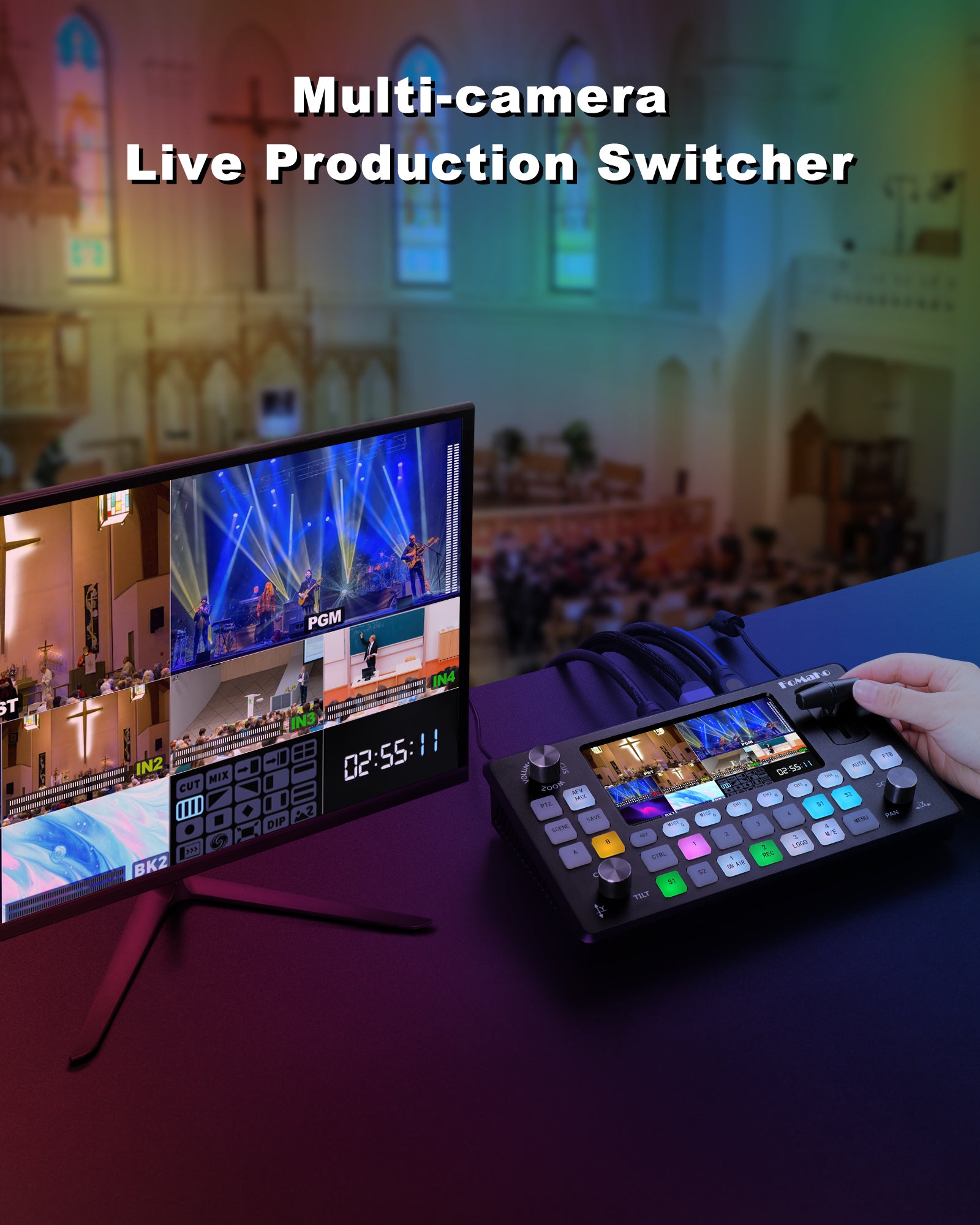

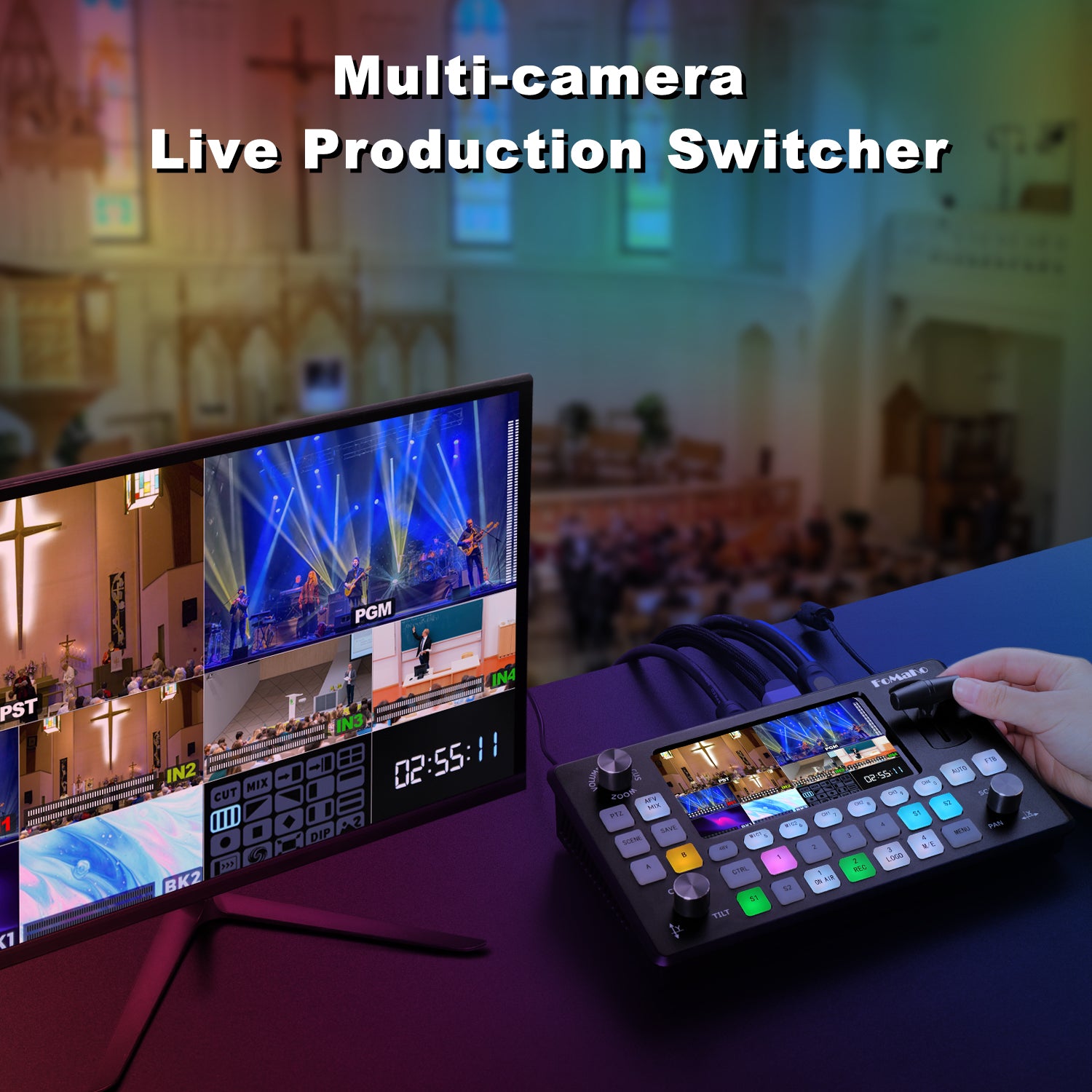

Multi-Camera Video Mixer Switcher
FoMaKo KC601 Pro Multi-Camera Video Mixer Switcher integrates multi-camera operation, 5.5-inch LCD screen, USB live streaming, PTZ camera control, audio embedding and chroma key, ideal for professional live broadcasts like church services.

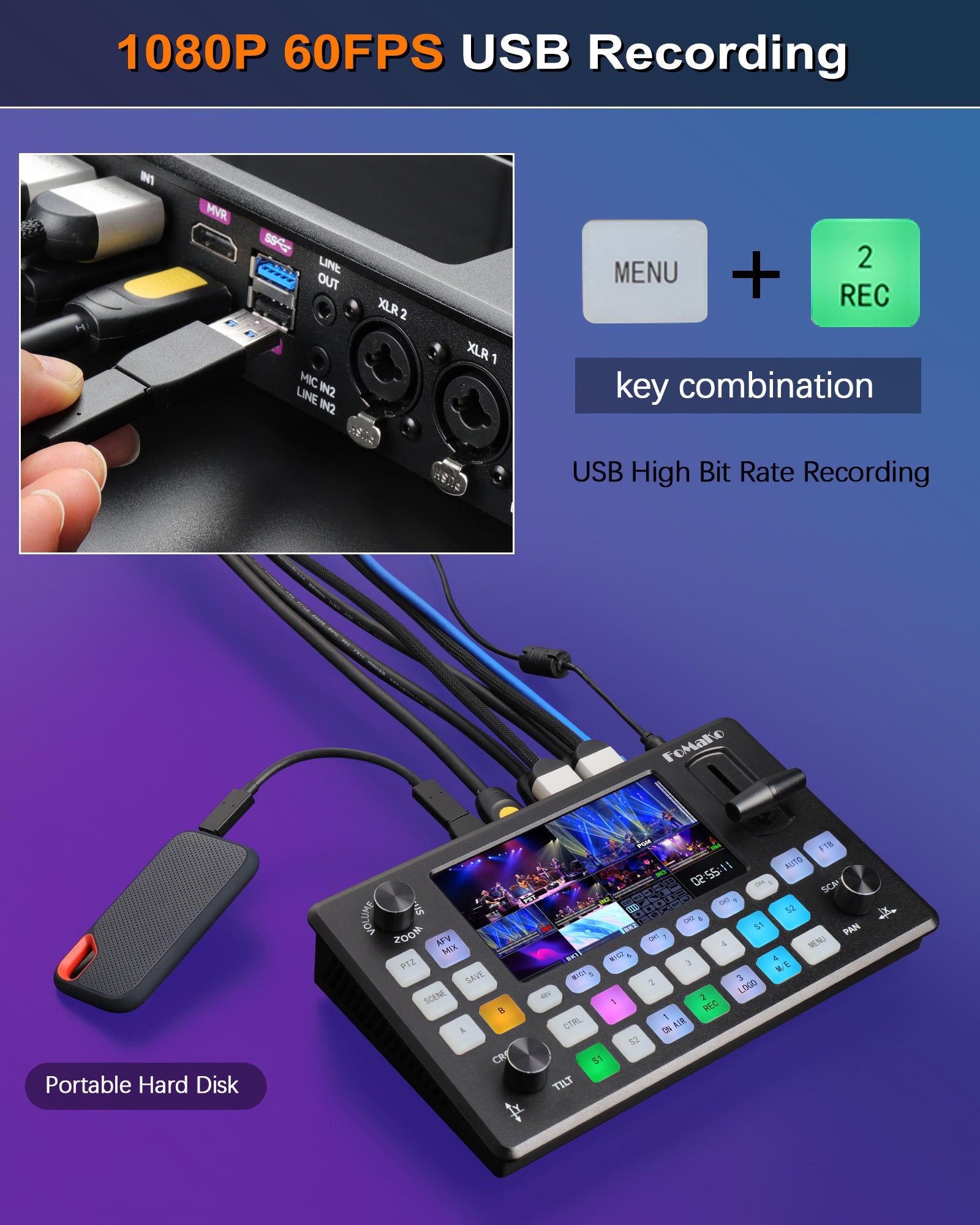

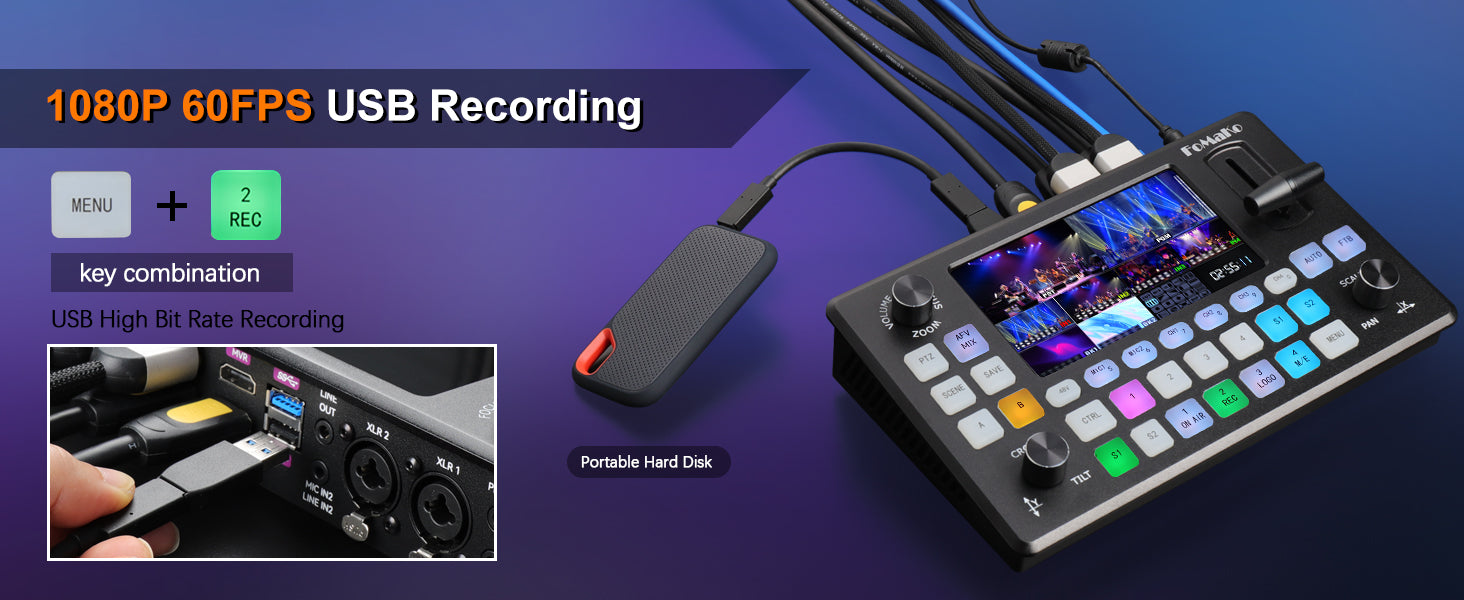

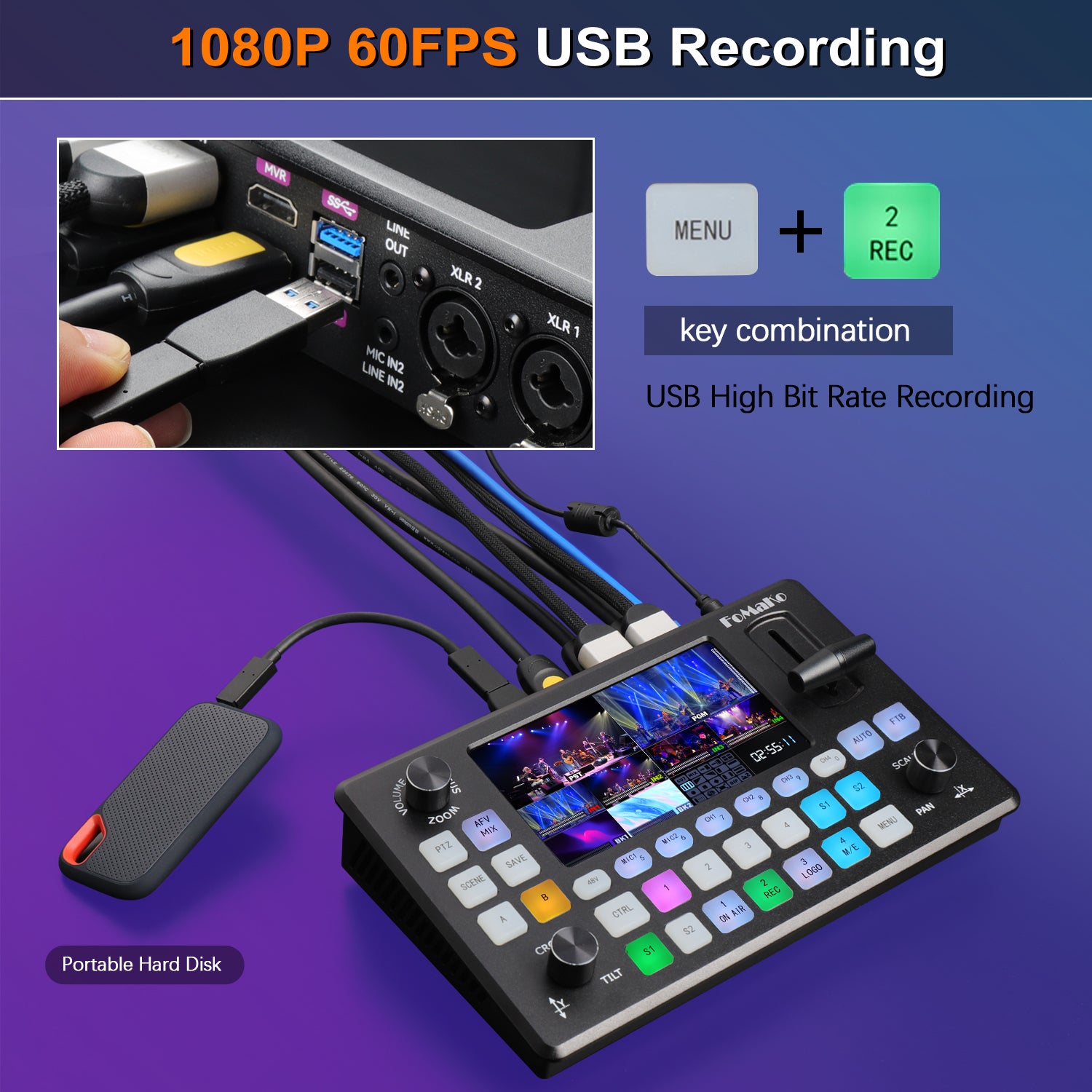

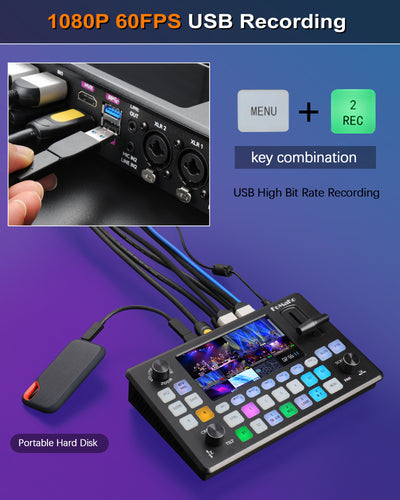

1080P 60fps USB Recording
FoMaKo KC601 Pro Video Mixer Switcher supports 1080P 60FPS high-bitrate USB recording, enabling easy capture to portable hard drives via the MENU + 2 REC key combination.

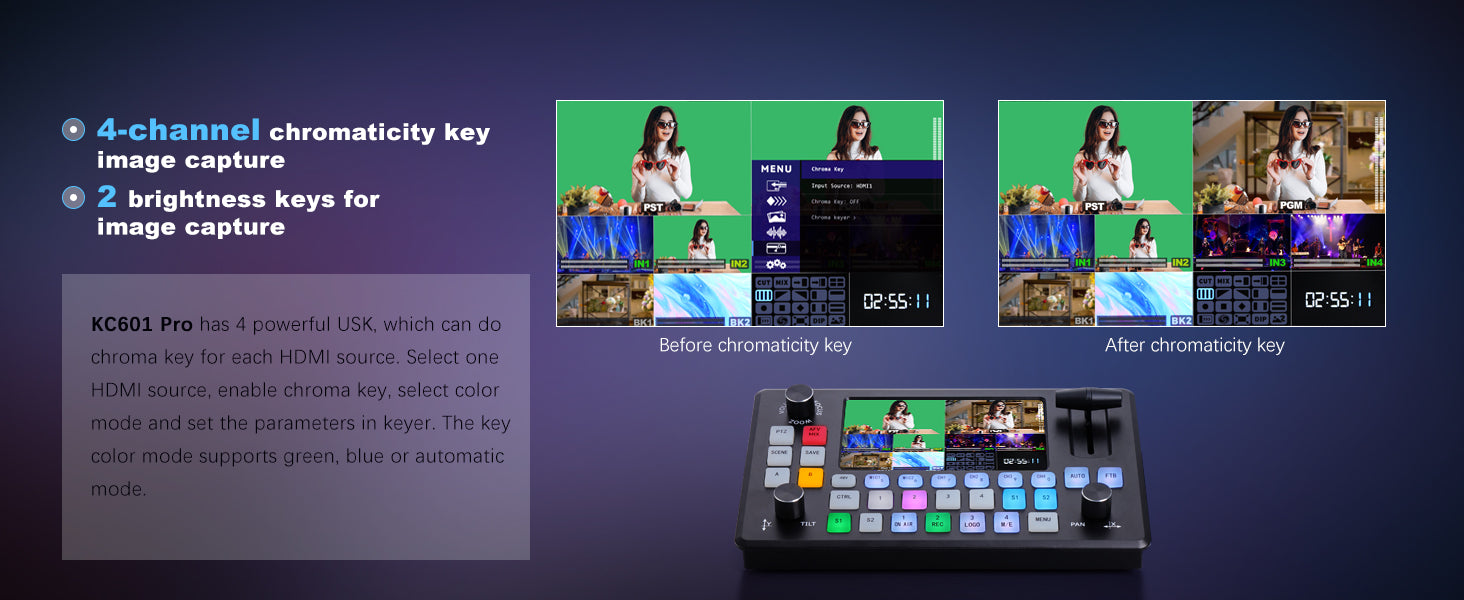

Chhroma& Brightness key
FoMaKo KC601 Pro Video Mixer Switcher features 4-channel chroma key and 2 brightness key functions, enabling professional green/blue screen compositing for each HDMI input source.

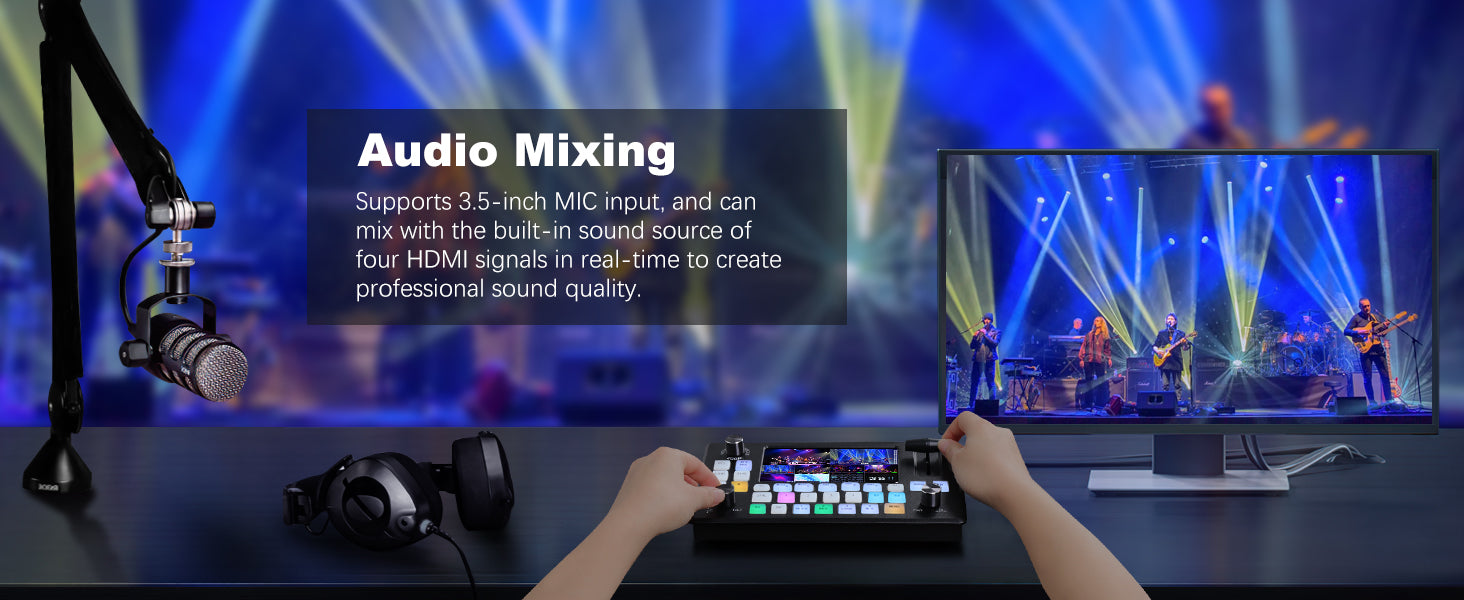

Audio Mixing
Supports 3.5mm MIC input and can mix audio sources from 4 HDMI signals in real-time to deliver professional sound quality.

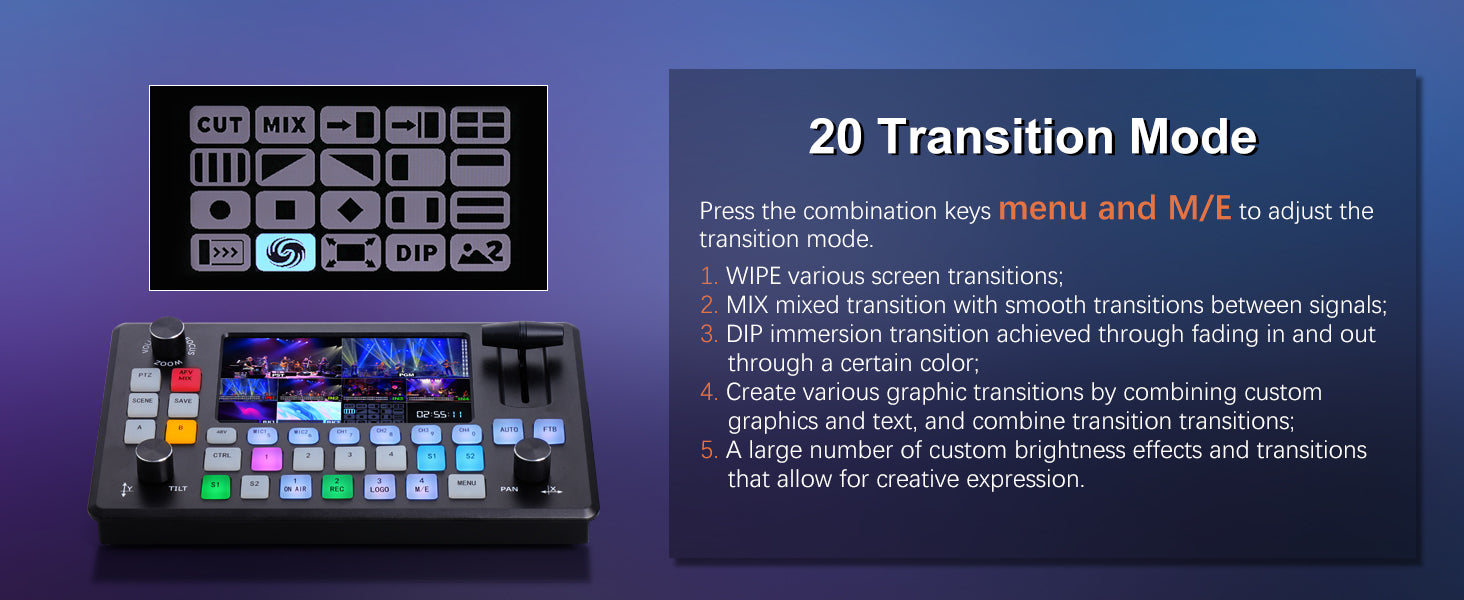

20 Transition Modes
FoMaKo KC601 Pro Video Mixer Switcher is equipped with 20 transition modes, supporting various effects like wipe, mix and dip, and can be switched via key combinations for diverse live streaming creations.

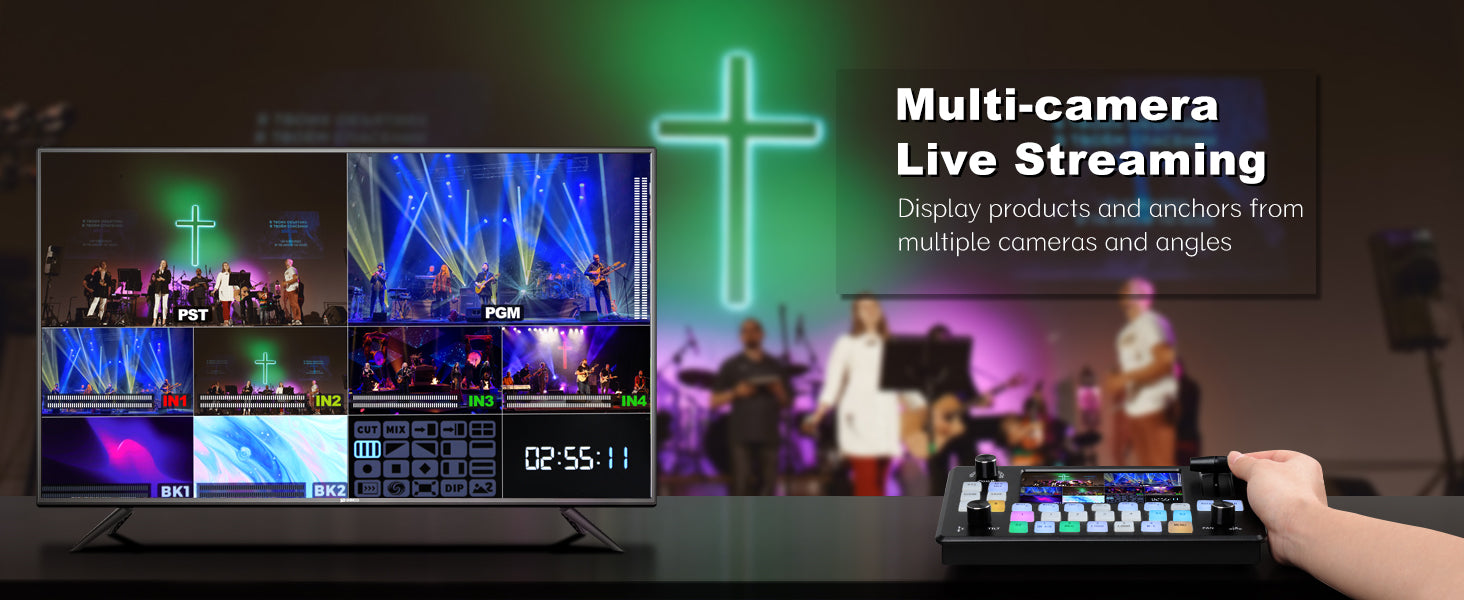

Multi-Camera Live Streaming
FoMaKo KC601 Pro Video Mixer Switcher supports USB3.0 multi-camera real-time live streaming, equipped with 3 independent PTZ control knobs for precise adjustment of PTZ preset positions, ideal for professional live broadcasts like church services.

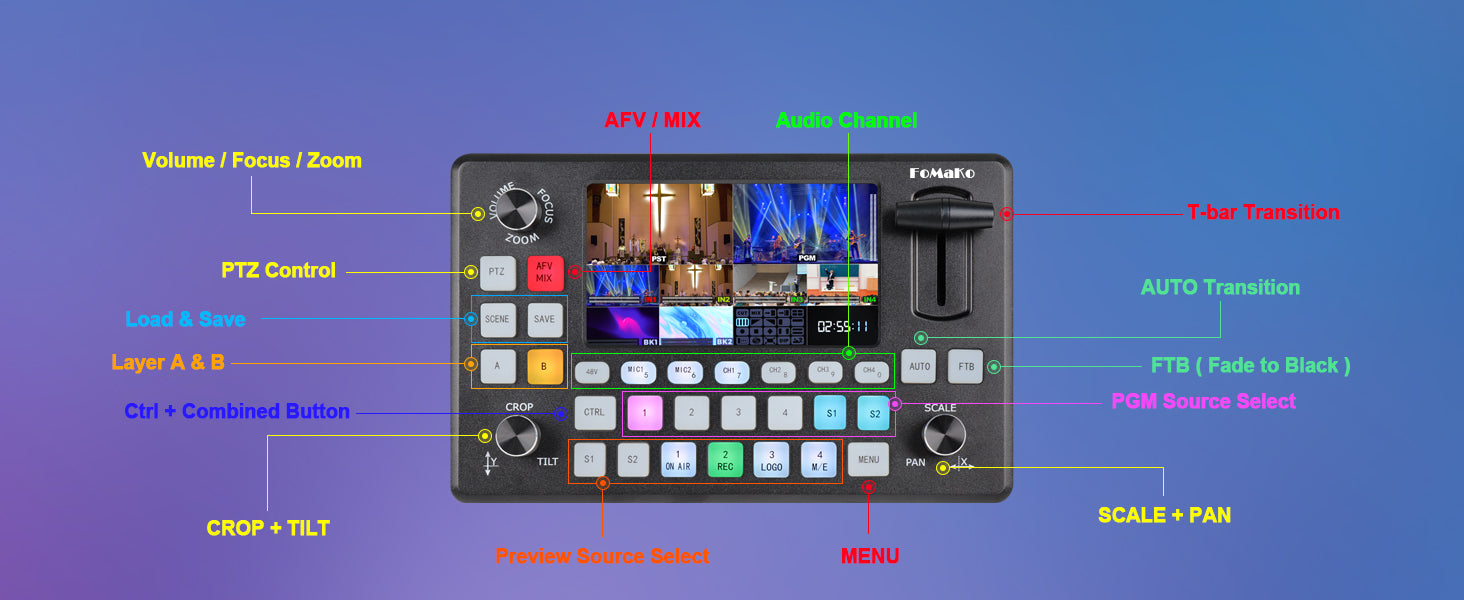

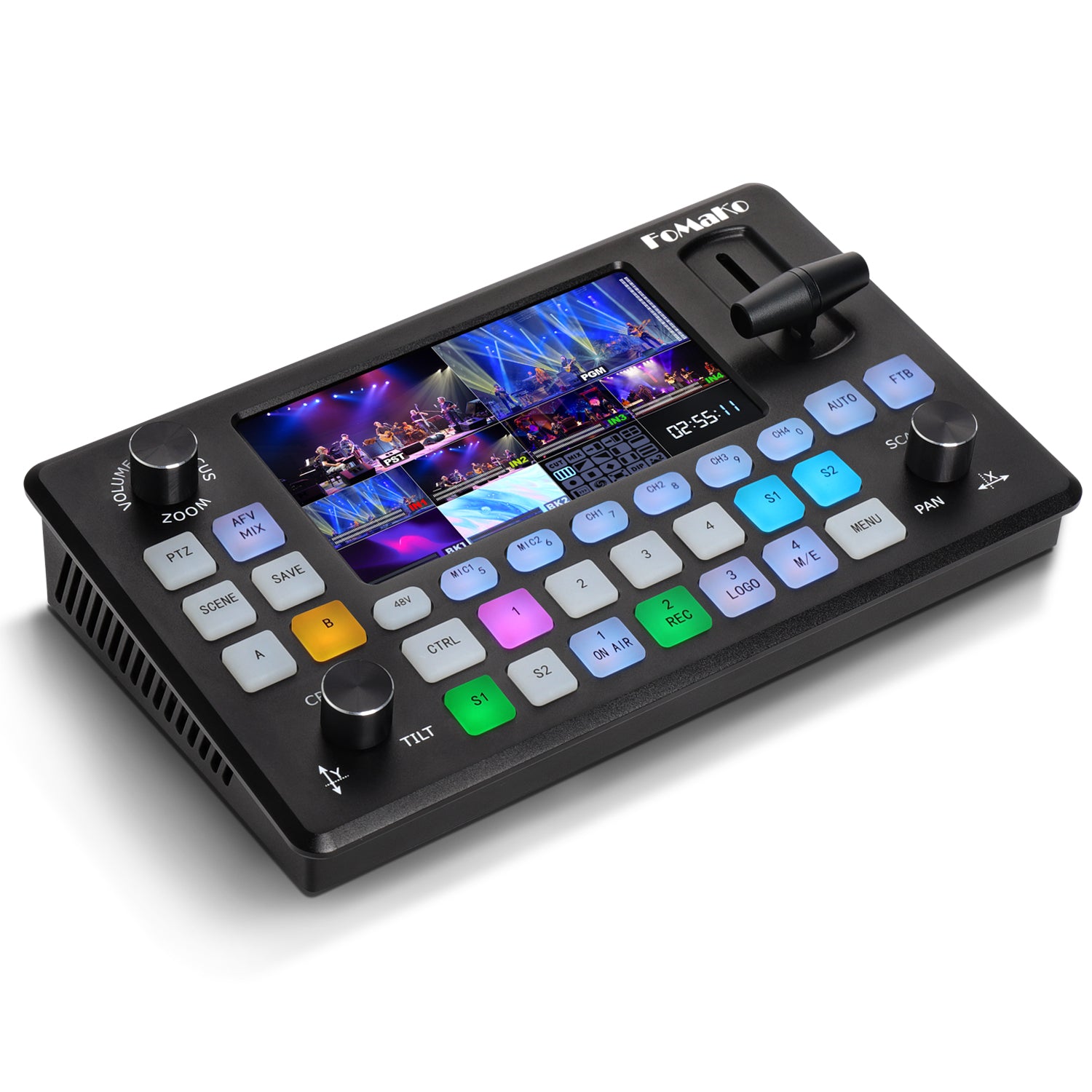

Control Panel
FoMaKo KC601 Pro Video Mixer Switcher integrates full-featured buttons and knobs including PTZ control, audio mixing, multi-source switching and transition effects, delivering intuitive operation for professional live production.

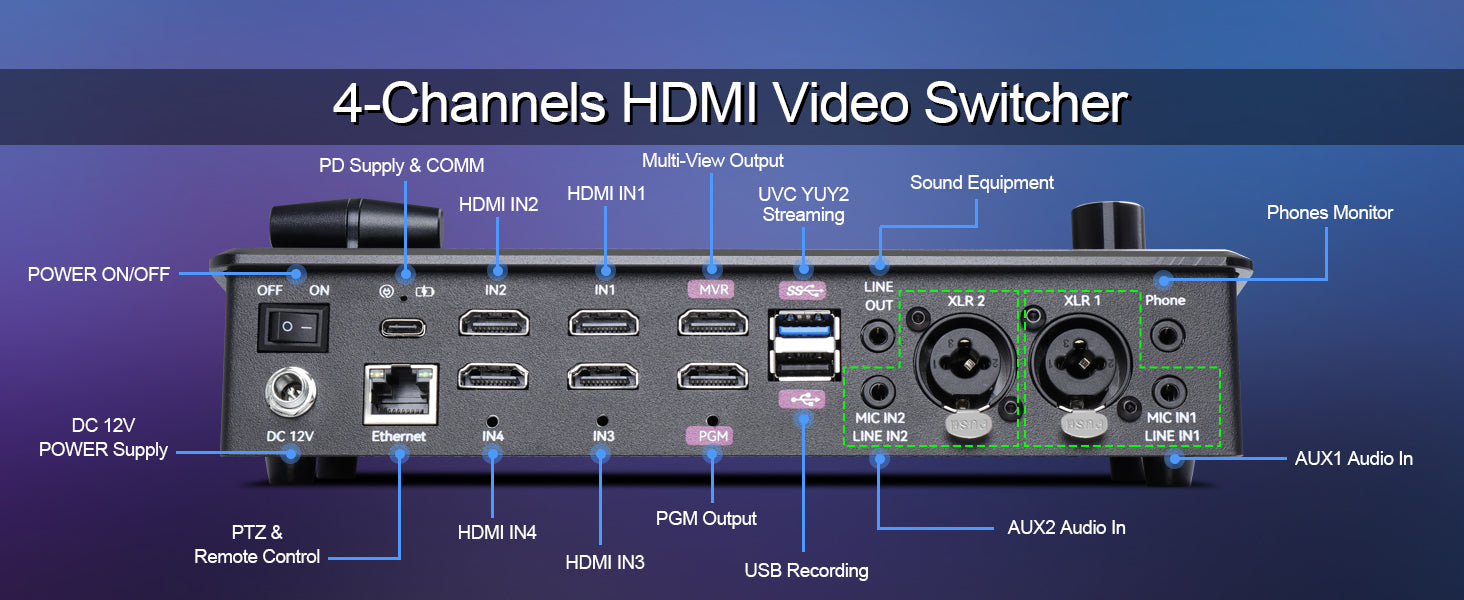

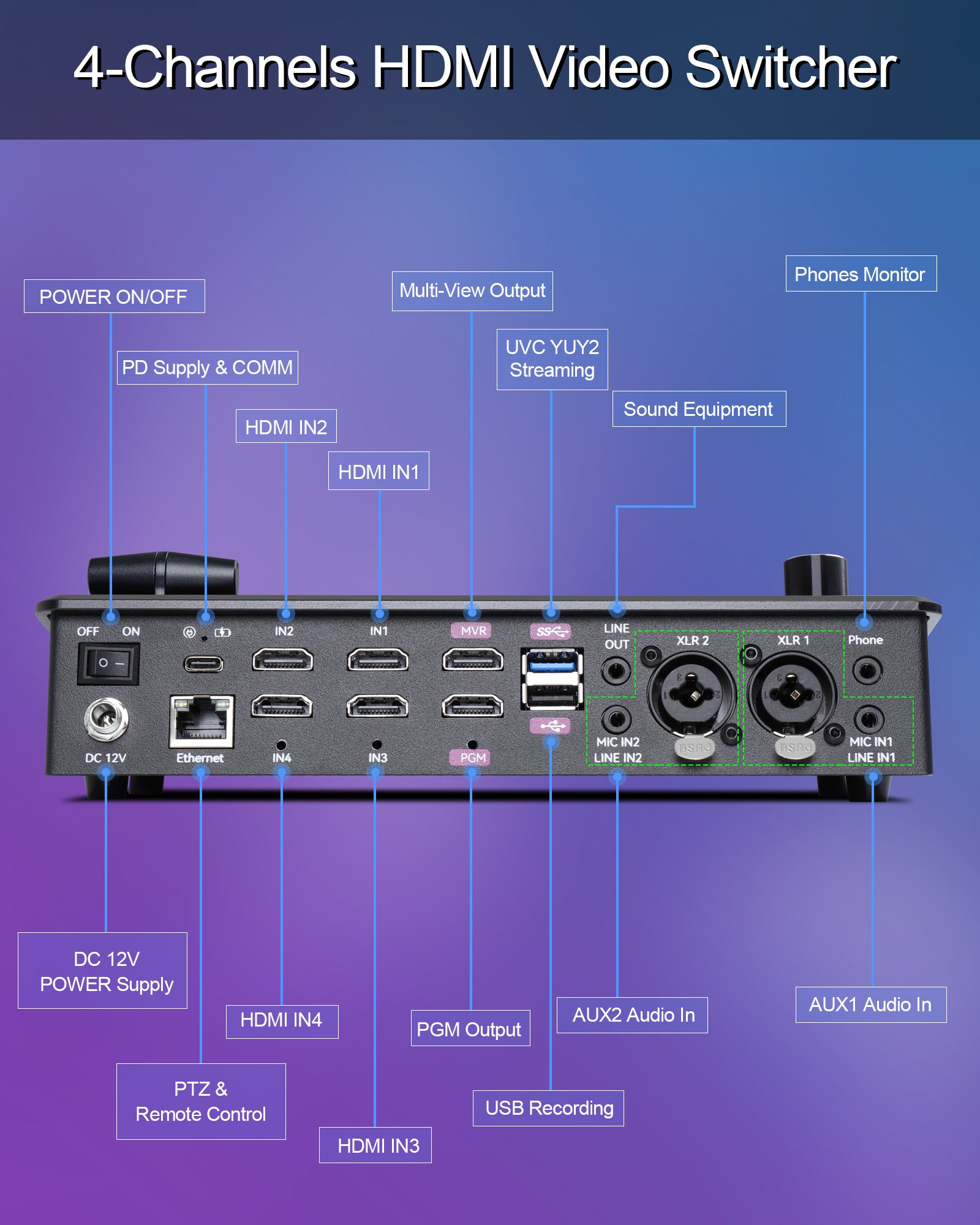

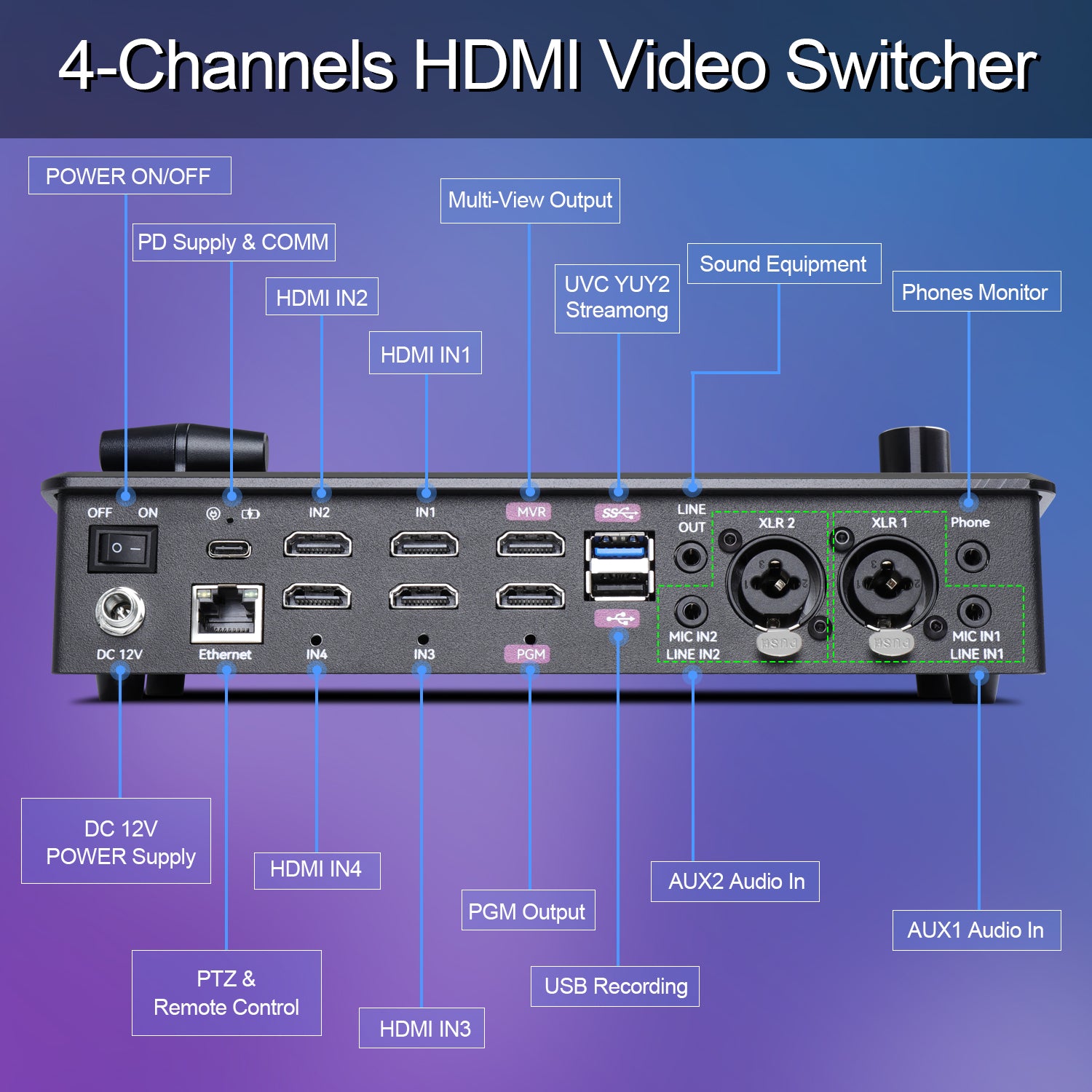

Full-Port 4-Channel HDMI Switcher
FoMaKo KC601 Pro 4-Channel HDMI Video Mixer Switcher features comprehensive ports including 4 HDMI inputs, multiple audio/video I/O, USB streaming/recording and Ethernet PTZ control, fulfilling all connection needs for professional live production.

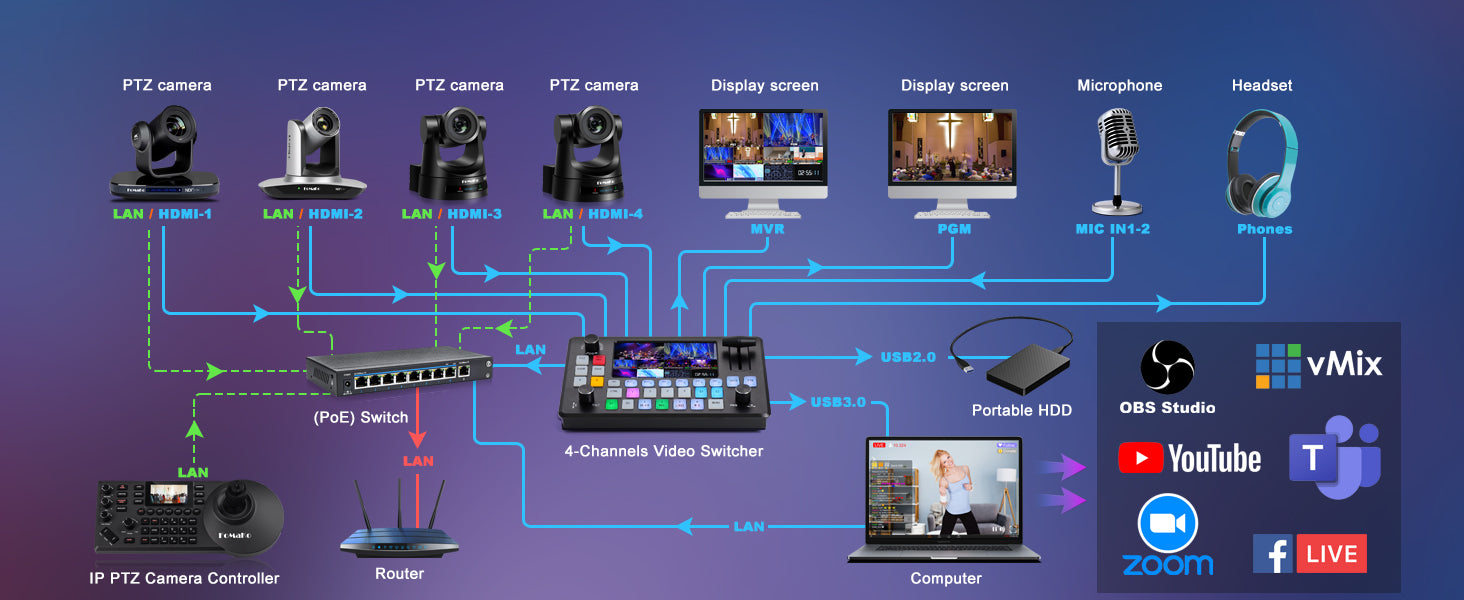

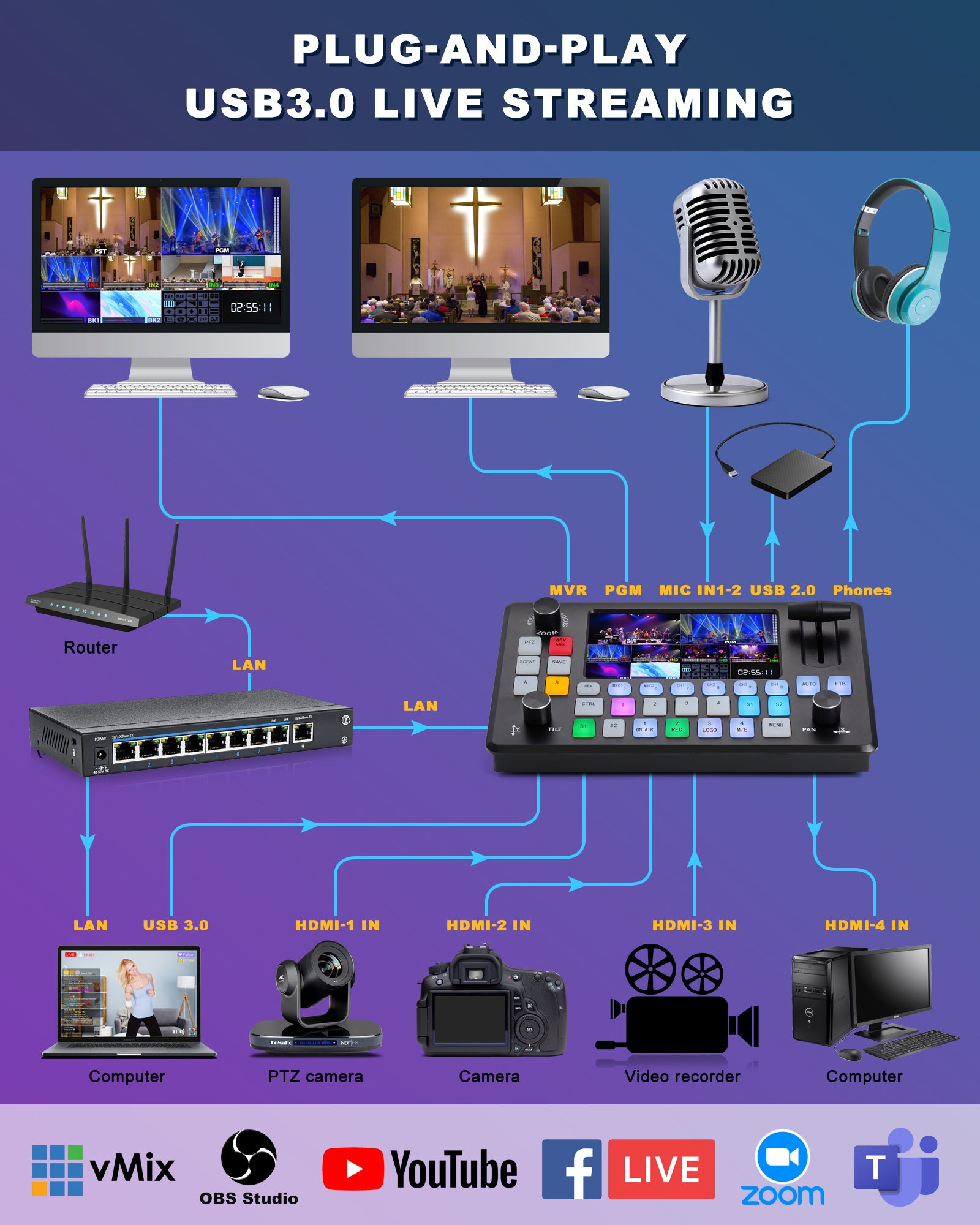

Classic Connection Diagram
FoMaKo KC601 Pro 4-Channel Video Mixer Switcher seamlessly connects multiple PTZ cameras, audio devices and displays, compatible with OBS/vMix and platforms like YouTube/Facebook, enabling one-stop professional multi-camera live streaming setup.
Tech Specs
Description
FoMaKo HDMI Switcher integrating encoder, switcher, monitor, and USB recorder. Quad HDMI inputs( max 1080P 60fps, doesn't support 4K ),Perfect for Worship, Weddings/Funerals, Sport, Events, Corporate, Education, Retail Business and More. Supports up to 1080P 60FPS(Tip:this item Does not support 4K !)
KC601 Pro Features
▶ 5.5-Inch 10-View Display Monitor
Equipped with a 5.5-inch 10-view display monitor, a world-first for such devices. It supports multi-layer video processing, letting users clearly view multiple video sources and layers. This compact yet functional monitor enhances single-person operation, making it easy to manage 4-camera live broadcasts with real-time visual feedback.
▶ Resolution
The switcher's 4 HDMI inputs automatically detect and display the resolution of connected sources, ensuring compatibility with various devices like cameras and TVs. It supports 1080P 60fps output.
▶ Multi-view Function
It supports multiple video output interfaces including HDMI, SDI, LAN, and USB3.0. It can simultaneously output audio and video signals through HDMI, SDI, and LAN. The SDI interface supports video transmission over a distance of up to 100 meters with a resolution of 1080P and a frame rate of 60fps.
▶ LOGO, Image and Video Import
LOGOs, images, and videos can be imported via a Type-C cable. The position and size of the LOGO can be set in the menu.
▶ Simple PTZ Control
The switcher offers basic PTZ control for 4 cameras via Visca over IP (port 52381). Cameras and the switcher must share the same IP segment. Users adjust pan/tilt/zoom, save/recall preset positions (0-9).
▶ Scene Preset
The Scene Preset function lets users save layer styles, camera preset positions, and background settings to 0-9 channels. When needed, just press the "Scene" button to quickly call them.
▶ TBAR
The TBAR enables professional Preview and Program switching. It supports over 30 transition effects, such as Cross Wipe and Venetian Blinds. It works with AUTO transition for one-way effects.
▶ Recording Function
A USB flash drive or portable hard drive can be connected to the USB port. Use the "MENU + REC" shortcut combination to start or stop recording. Different recording bitrates are selectable, and the menu displays the disk capacity and remaining recording time in real time. Recorded files are automatically saved in MP4 format.
▶ Excellent Audio Mixer
It supports XLR, 6.35-inch, and 3.5-inch inputs. It mixes 4 HDMI embedded audios with 4 external analog audios, plus 5-BAND EQ. With AFV/MIX modes, independent volume control, and channel monitoring, it delivers high-quality sound for professional live broadcast audio needs.
▶ Shortcut Keys
Video shortcuts: "MENU+M/E" for transition effects, "CTRL+1-4" for chroma key. Audio shortcuts: "CTRL+MIC/CH" for monitoring, long-press "AFV/MIX" for mode switch.
Video input/output
Input: HDMI Type A x 4 (INPUT 1--4), HDCP Supported
Output (PGM): HDMI Type A x 1 (PGM OUT)
Output (MVR): HDMI Type A x 1 (MULTI-VIEW OUT)
Streaming Output: USB3.0 Type A x 1
Recording Output: USB2.0 Type A x 1
Audio Input/Output
Input
- Combo type (XLR, 1/4-inch TRS phone) x 2, balanced, phantom power (DC 48 V, 10 mA Max)
-3.5mm TRS phone type x 2, Mic In / Line In Supported
Output
-3.5mm TRS phone type x 2, Phones / Line Out
Power Requirements
Input Voltage: DC 12V/2A (via Power Socket or USB-C PD3.0 supplied)
Max Power: 24W
Compatability: USB Type-C × 1, Locking Plug, USB Power Delivery (PD 3.0)
Supported Cables: Certified USB PD Aware
Included in the Box
Video Switcher

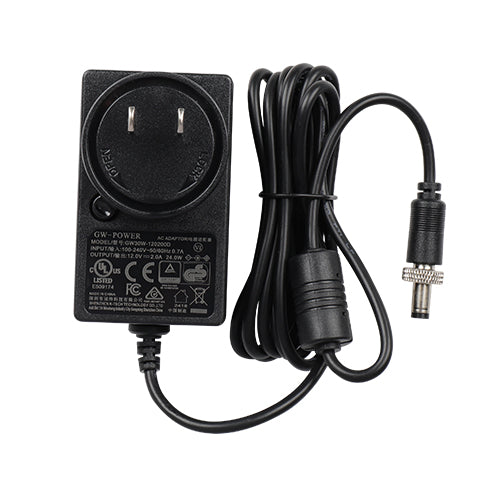

Power Adapter

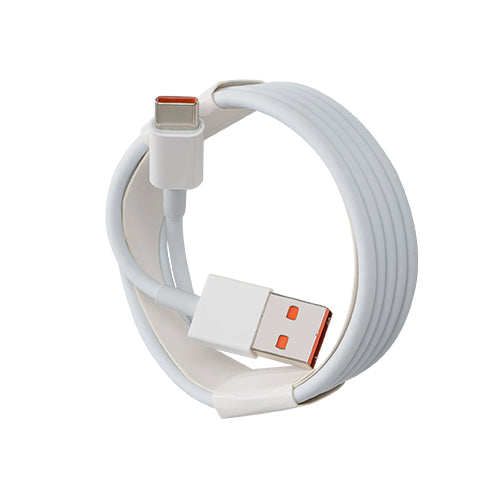

USB Cable
User Manual
FAQs
Please read our FAQs page to find out more.
How many video inputs does this video switcher support?
It supports up to 4 HDMI signal inputs simultaneously.
Does this video switcher support NDI signal switching?
No, it only supports HDMI signal input.
Can it be used with 4K cameras?
Yes, but this video switcher supports a maximum resolution of 1080P. You will need to set your camera resolution to 1080P.
Can It live stream to Youtube and Facebook?
Yes, it can stream to Youtube and facebook by IP streaming and USB streaming
Can it record video from 4 HDMI signals simultaneously?
No, it can only record the live output video.
